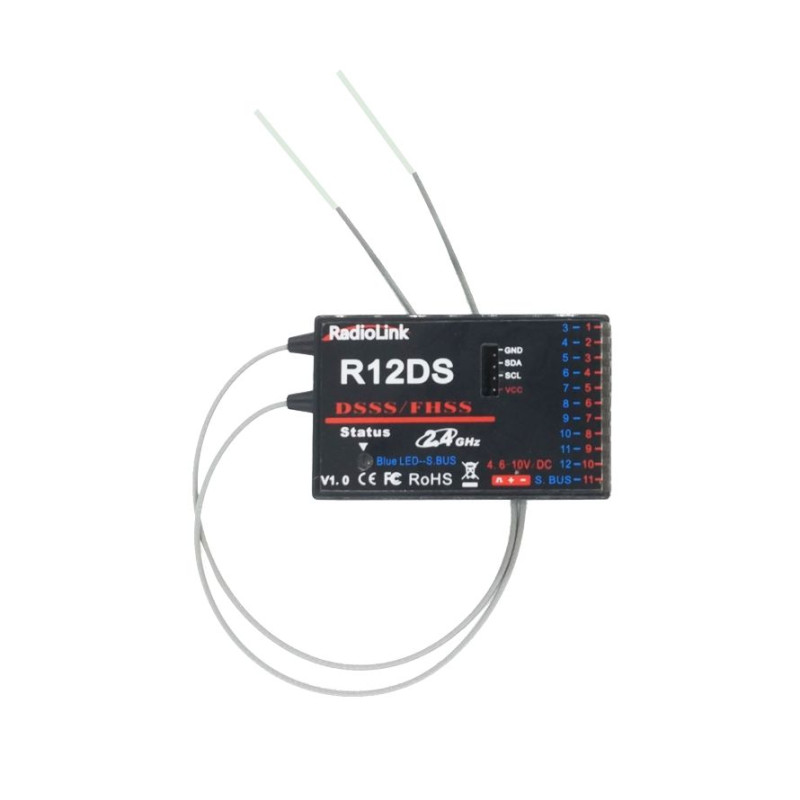

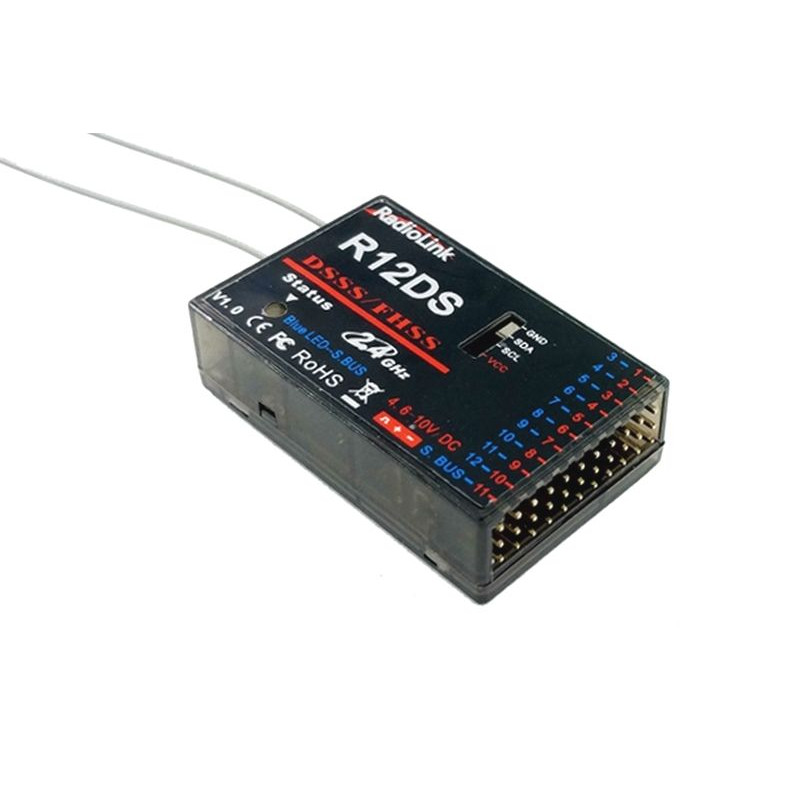

RADIOLINK RECEIVER R12DS

Radiolink R12DS 2.4 GHz is a 12-channel synchronous DSSS and FHSS frequency-hopping telemetry receiver, compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (AT9, AT 9S and AT10 transmitters can be upgraded to 12 channels by updating their firmware, which can be downloaded from the manufacturer's website http://radiolink.com.cn/doce/at10upgraded.html, AT10II is already 12-channel in the basic version). The receiver works with PRM-01 and PRM-02 telemetry modules.

It offers two modes of operation - with standard width modulation (PWM) servo signal outputs (11 channels) or with S-BUS serial outputs (12 channels).

The receiver is suitable for all RC models (the range given by the manufacturer is 1100 m on the ground and 3000-4000 m in the air).

The use of DSSS/FHSS transmission technology carries a high resistance to interference and the ability to set fail-safe deflection in case of failure or strong interference of the transmitter signal

Operating modes:

• With individual servo PWM signal outputs: red LED indicates PWM signal output, 11 channels in total
• With SBUS serial output: blue/purple LED indicates SBUS signal output, 12 channels in total. SBUS and PWM signal outputs can be used simultaneously in SBUS operation mode. Slot 11 is the SBUS signal output, slots CH1 to CH10 are used simultaneously as PWM signal outputs of channels 3 to 12. The number of PWM outputs you can use depends on the number of SBUS signal channels you use (e.g., if you use 4 S-BUS signal channels, you have 8 PWM signal channels available).

Pairing with the transmitter is done using the pairing button on the receiver, operating states are indicated by an LED.

The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the outlets are oriented in the direction of the longitudinal axis of the receiver.

Specifications:

• Serial output: S-BUS
• Fail-safe
• Power supply: 4.8 V, 6 V, 7.2 V, 7.4 V
• Length [mm]: 50
• Width [mm]: 31,5
• Height [mm]: 14,5
• Weight [g]: 14

The receiver set includes: receiver R12DS, manual.

*Follow the instructions included with the product.
