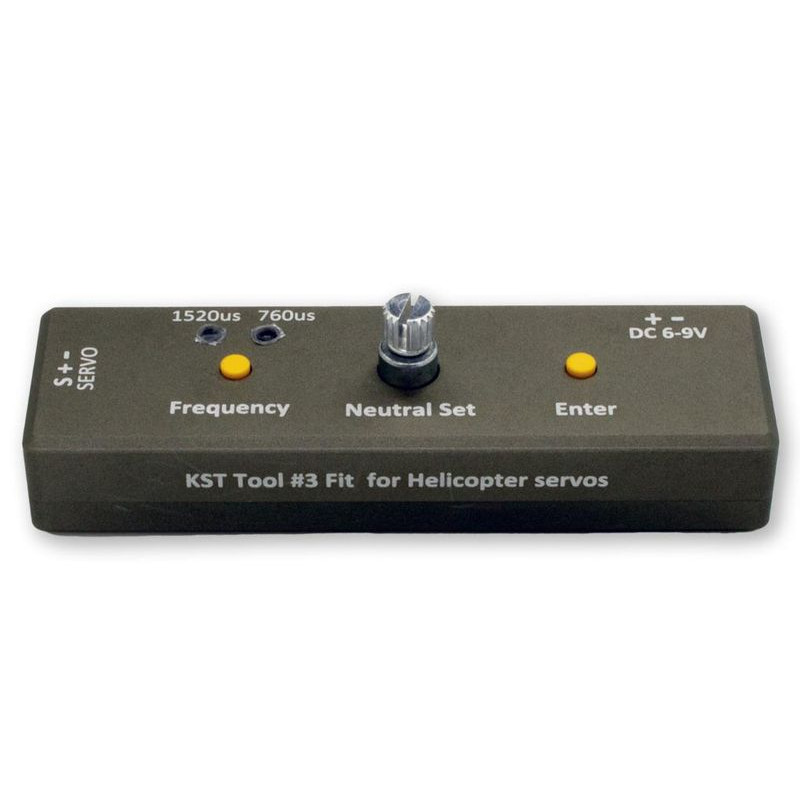

KST-Tool 3 PROGRAMMER (KST-6003)

"KST-Tool 3 "Servo Center" switch setting 1520/760us"
Programming device suitable for KST servo versions V3.0, V6.0 and V8.0
(not suitable for KST DS215 V3.0)

Accurate setting of "servo center" by switching POTI control pulse 760/1520 us

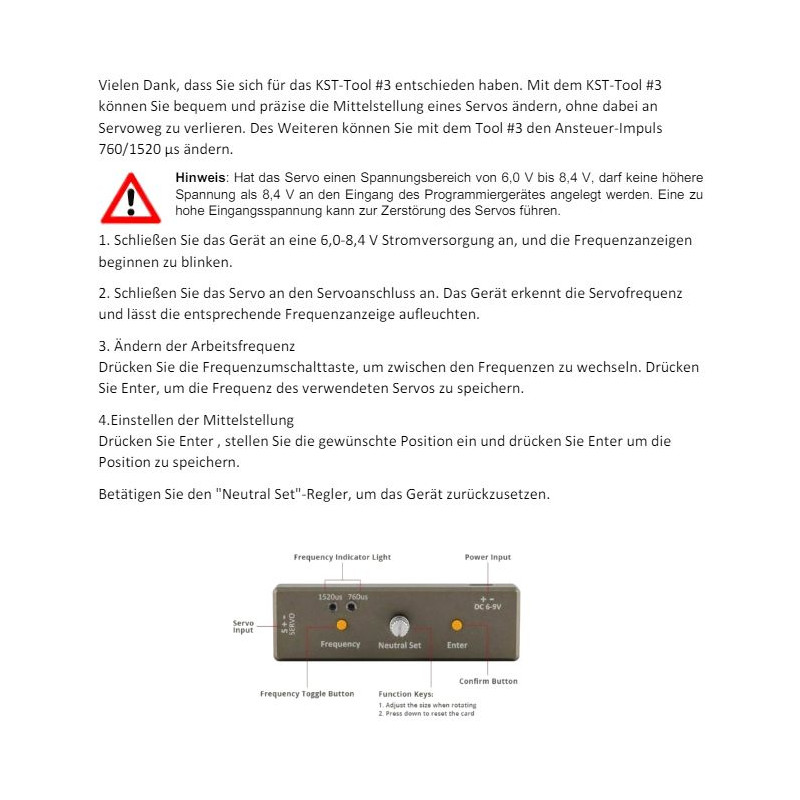

With KST-Tool #3, you can easily and precisely change the servo center position without losing servo travel.
You can also use tool #3 to change the 760/1520 μs control pulse with tool #3.
Note: If the servo has a voltage range from 6.0 V to 8.4 V, do not use a voltage higher than 8.4 V.
A voltage higher than 8.4 V can be applied to the input of the programming device. If the input voltage is too
If the input voltage is too high, the servo may be destroyed.
1. connect the device to a power supply of 6.0-8.4 V, and the frequency indicators will start to flash.
begin to flash.
2. connect the servo to the servo connector. The device will recognize the frequency of the servo
and will illuminate the corresponding frequency display.
3. Changing the operating frequency
Press the frequency change button to switch between frequencies. Press the
Enter to save the frequency of the servo in use.
4. Setting the center position
Press Enter , set the desired position and press Enter to save the position.
to save the position.
Press the "Neutral Set" button to reset the unit.

*Follow the instructions included with the product.
