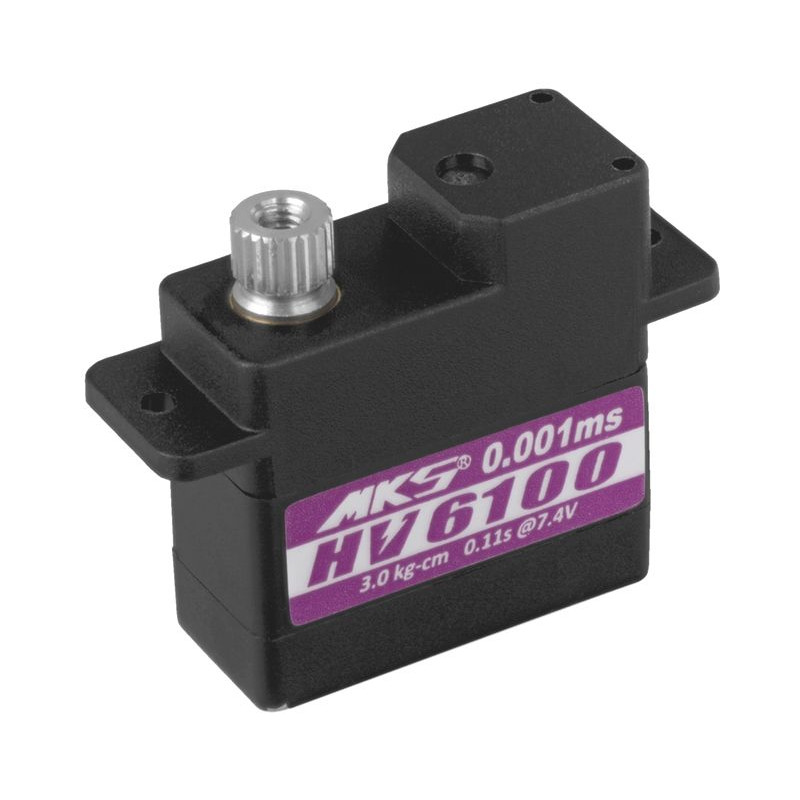

MKS SERWO HV6100 DIGITAL (3.4kg - 0.10s/60°)

A very powerful and fast, programmable, thin digital micromotor with metal gears and output shaft mounted on two needle bearings and one self-lubricating bearing. Thanks to its 10 mm high flat housing with feet for flat mounting, it is particularly suitable for aileron and flap control in RC helicopters, smaller gliders and engine models.

A wide range of servo parameters can be programmed using the DSP-1 USB programmer/interface and a PC-based utility program:

STANDARD FUNCTIONS

• Dead Band: Dead band width determines the amount of change in control signal pulse width at which the position of the servo output shaft/lever does not change. MKS default setting = 1 µs or 1.1 µs
• Lock: it sets the behavior of the servo when it does not receive a control signal - It maintains the position corresponding to the last received signal / The motor is free, the servo does not maintain any position.
• Max Duty: It limits the maximum power of the servo motor.
• Pulse Lower (minimum pulse width): The lower limit of the control pulse width and the corresponding servo swing value will be limited by this value.
• Neutral: Sets the width of the control pulses in the neutral/center position of the servo.
• Pulse Upper (maximum pulse width): The upper limit of the control pulse width and the corresponding servo swing amount will be limited by this value.
• Boost: The power of the motor when starting from a standstill. The higher the value, the more force will start the motor.

Specifications:

• Torque at 6.0 V - 2.6 kg
• Torque at 7.4 V - 3.0 kg
• Torque at 8.2 V - 3.4 kg
• Speed at 6.0 V - 0.14 s / 60 degrees
• Speed at 7.4 V - 0.11 s / 60 degrees
• Speed at 8.2 V - 0.10 s / 60 degrees
• Control pulse width: 1520 µs
• Repetition rate: 333 Hz
• Ball bearings:
• Gear (pinions): metal

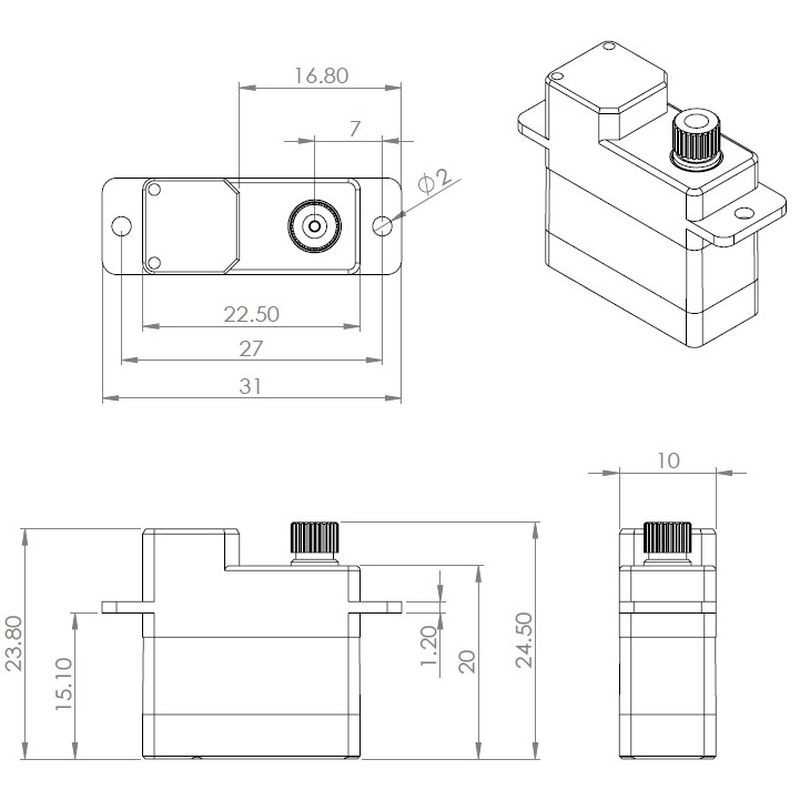

• Dimensions (length x width x height): 22.5 x 10 x 23.8 mm
• Weight: 10 g
• Motor type: coreless

*Follow the instruction manual included with the product
