REDOX ENGINE BL 650/ 850

The Redox BL 650/850 Outrunner is the lowest kV-index unit of the three available "650s" in the Redox range, giving, however, a very sizable torque with a very low energy requirement. Thus, the engine is made for trainer models, high-wing planes and other aircraft of a training nature, where the large wing area and high torque give excellent stability of the model in the air and extremely long flight times, during which you can quietly train your skills as a pilot.

In addition, the engine has the ability to translate the shaft to the other side of the body thus obtaining the option of "inverted mounting" - this can prove especially helpful in models with limited ability to mount the frame for engine installation on the front of the model, or it can prove ideal for push-pull models.

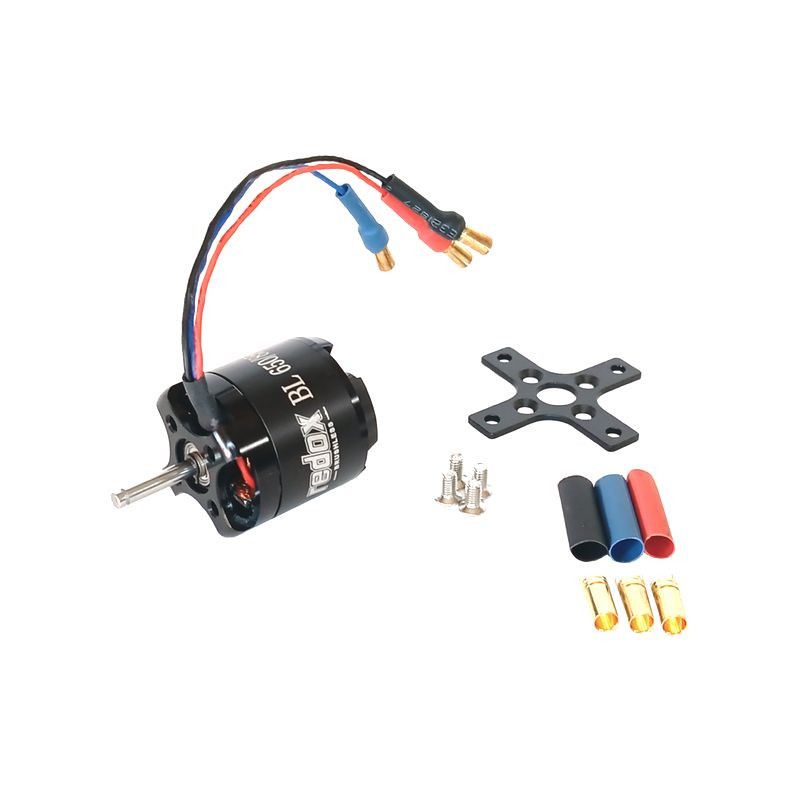

The kit includes:

• Redox brushless motor
• Small mounting bed with 4 screws
• 3x banana-type connector - socket
• 3x heat shrink sleeve

Operating parameters:

• Power: 225 W
• Static thrust: 740 g
• Shaft diameter: 3mm
• kV [rpm]: 850
• Operating voltage: 2-4s (7.4-14.8V)
• No-load current consumption: 0.58 A
• Max. current consumption: 15.1 A at 14.8V
• Recommended regulator: 18-25 A
• Propeller: APC 9x4.7 E
• Weight: 63 g
• Motor diameter: 28mm
• Body length: 35.1mm
• Possibility to transfer the shaft to the other side of the body

*Follow the instruction manual included with the product.
