RADIOLINK RECEIVER R6DS

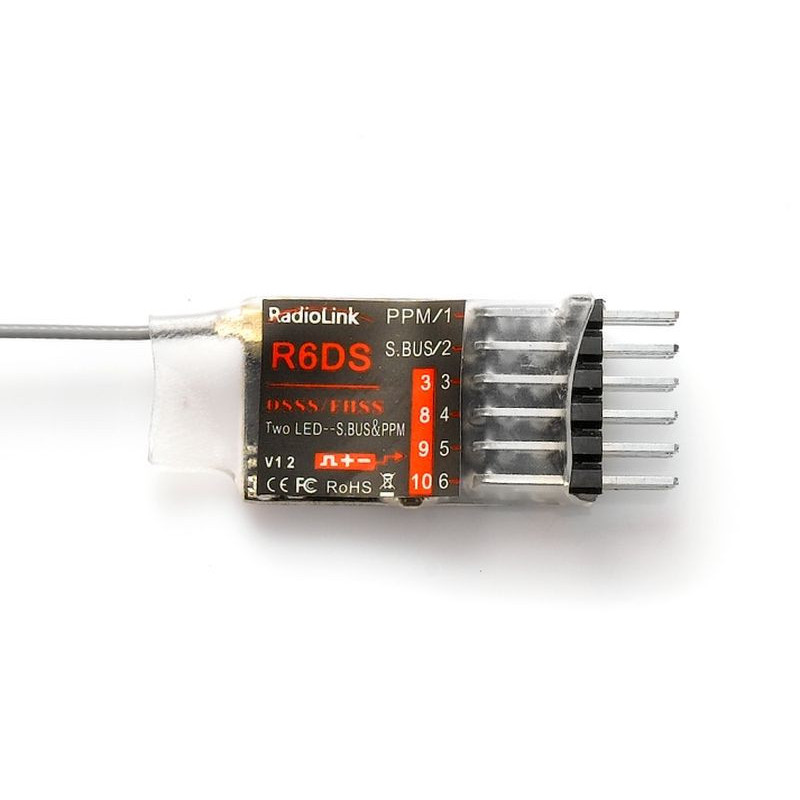

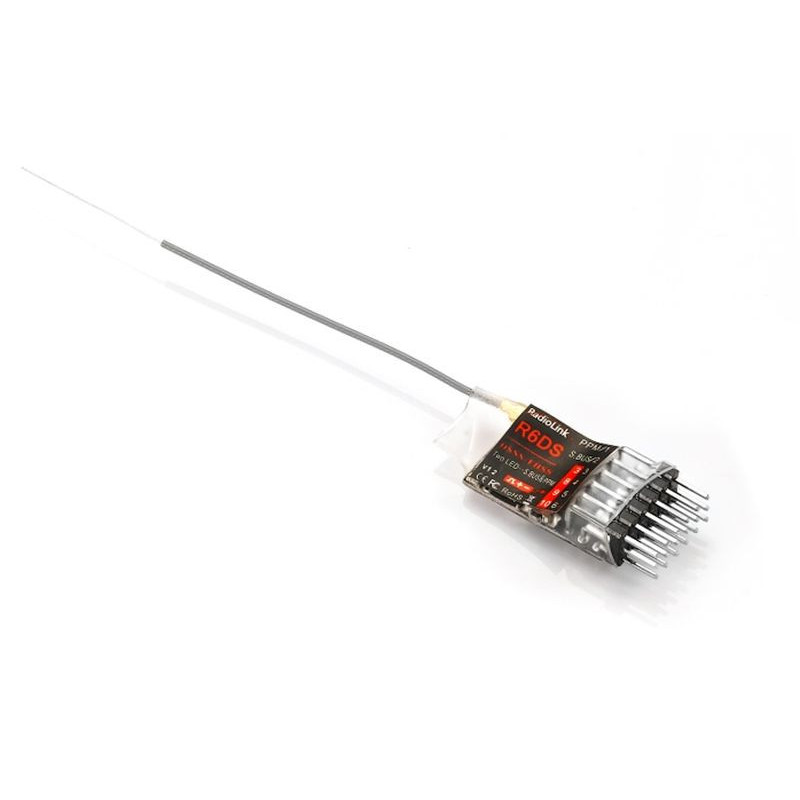

Radiolink R6DS 2.4GHz is a small 6-channel receiver with synchronous DSSS and FHSS frequency hopping transmission, compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (AT10II must be switched to 10CH transmission mode). It offers two modes of operation - with standard width modulation (PWM) servo signal outputs (6 channels) or with S-BUS+PPM serial outputs (10 channels). It is NOT compatible with Radiolink T8FB and T8S transmitters.

The receiver is suitable for slow-fly and park-fly models, racing drones and other smaller models (the range given by the manufacturer is 300m on the ground and 600m in the air).

The use of DSSS/FHSS transmission technology carries a high resistance to interference and the ability to set fail-safe deflection in case of failure or strong interference of the transmitter signal.

Operating modes:

• With individual PWM servo signal outputs: red LED indicates PWM signal output, 6 channels in total
• With SBUS + PPM serial output: blue/purple LED indicates SBUS + PPM signal output, 10 channels in total. SBUS+PPM and PWM signal outputs can be used simultaneously in SBUS operation mode. Socket CH1 has PPM signal output, socket CH2 has SBUS signal output, sockets CH3 to CH6 serve simultaneously as PWM signal outputs of channels 3, 8, 9 and 10.

Pairing with the transmitter is done using the pairing button on the receiver, the operating states are indicated by an LED.

The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the outlets are oriented in the direction of the longitudinal axis of the receiver.

Specifications:

• Number of channels (PWM) - (S-BUS+PPM): 6 - 10
• Serial output: PPM, S-BUS
• Fail-safe
• Power supply: 4.8 V, 6 V
• Length [mm]: 25
• Width [mm]: 15
• Height [mm]: 10
• Weight [g]: 3.4

The receiver set includes: receiver R6DS, manual.

*Follow the enclosed instruction manual.
