Kavan

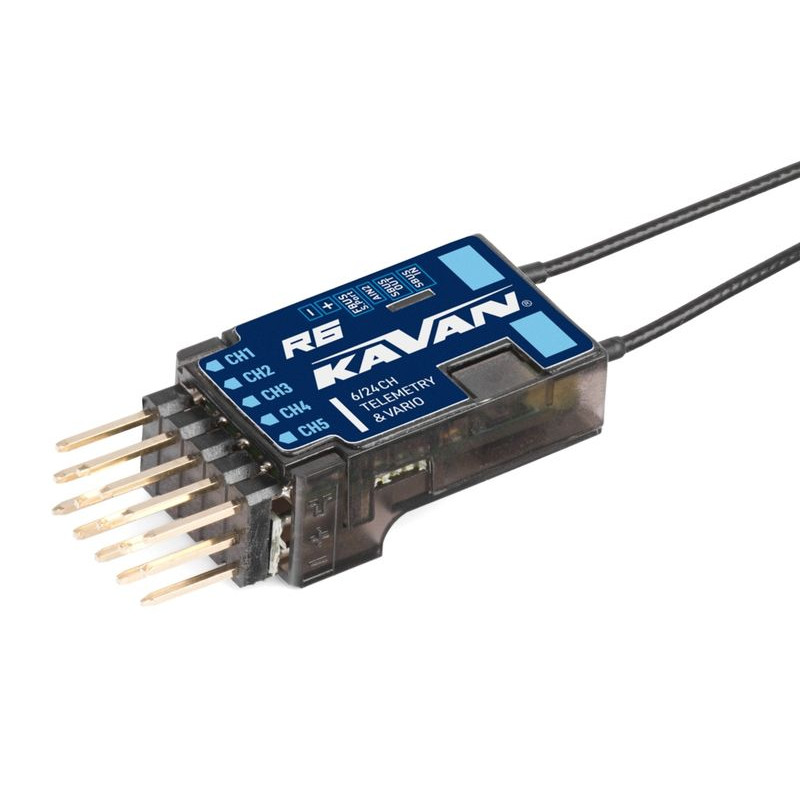

KAVAN R6 VARIO odbiornik (18.10006V)

€45.00
13-0551
KAVAN Europe
In stock

Advanced 6-channel telemetry receiver of ACCESS 2.4GHz transmission system. Features 6 precision PWM channels and 16 or 24 channel mode using S.BUS. Two removable antennas with IPEX4 connector provide full signal strength throughout the range. It is particularly ideal for gliders, but can also be used for a variety of other models. Thanks to its small size and light weight, it is also suitable for small models. Thanks to its redundancy support, it can be connected as a master receiver via S.BUS. With F.BUS connection, you can easily and quickly pair it with several different telemetry devices.

It is equipped with an advanced interference suppression function to ensure reliable and stable signal transmission throughout the range. Assigning a smart transmission system speeds up pairing. The black box function stores basic flight data. Receiver operating states are indicated by an LED. Allows wireless firmware updates after smart pairing.

Features a variometer for more accurate and faster measurement and transmission of altitude and vertical speed data. It also enables instant audio feedback from the variometer for ACCESS transmitters.

Features:

  • Enhanced RF interference protection and more stable RF transmission
  • ACCESS transmission mode with intelligent pairing
  • Basic support for black box functions
  • 6 precision PWM channels
  • S.BUS output port (with 16/24 channel mode)
  • S.BUS input port (with redundant connection of 2 receivers)
  • Full range telemetry (S.Port or F.BUS)
  • Firmware updates via wireless (OTA).
  • External battery/device voltage detection

Technical specifications:

  • Dimensions: 33×15×9.7 mm (L × W × H)
  • Weight: 4.2 g
  • Number of channels: 6 PWM channels + 16/24 channel mode via S.BUS
  • Operating voltage range: 3,5-10 V
  • Operating current: <65mA at 5V
  • Operating range: >2km (full range, may vary depending on current environmental conditions)
  • External voltage measurement range via AIN2: 0-35V (battery voltage divider ratio: 1:10)
  • Antenna connector: IPEX4
  • Compatibility: 2.4 GHz ACCESS transmitters

*Follow the instruction manual included with the product.
