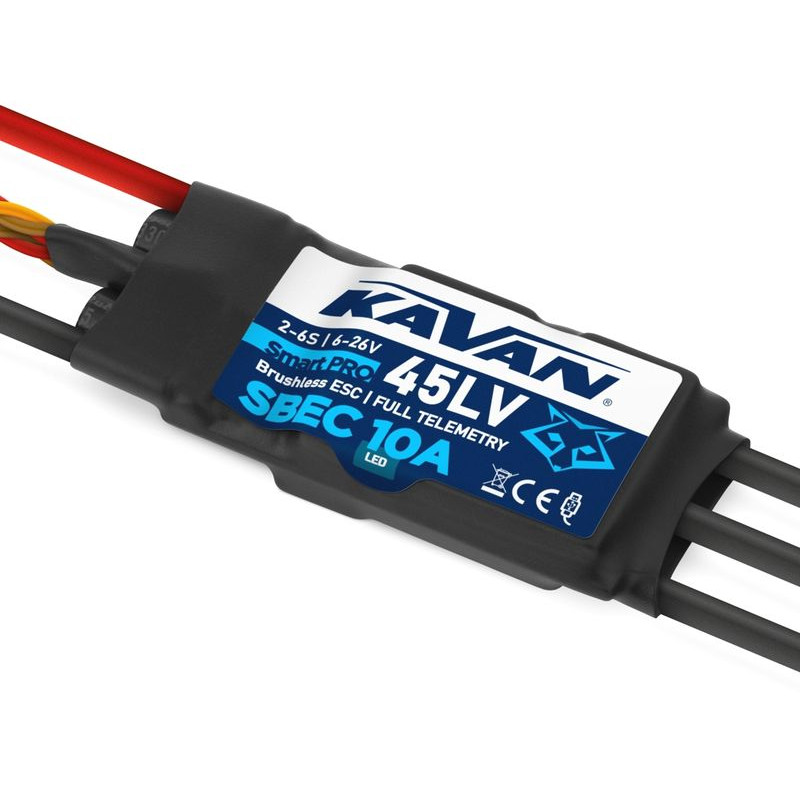

KAVAN SPEED CONTROLLER PRO- 45LV (KAV32.31059)

Powerful BLDC motor controller with continuous current up to 40 A at up to 26 V (6S LiPo). Suitable for smaller models - usually electric gliders. Offers high quality stabilized output voltage (BEC) with continuous current up to 10 A. With a load capacity of up to 60 A for 30 s, it is ideal for F5J-type models.

The Smart PRO product line includes advanced speed controllers designed primarily for radio-controlled aircraft models. With integrated telemetry and various user-selectable configuration options, these controllers offer high performance, low weight and precise motor control. The controllers offer multiple types of protection.

Features:

• Small size combined with efficient motor control
• Powerful switchable BEC providing a continuous current of 10 A (max. 20 A). BEC circuit protection included to protect against overcurrent and overheating
• Adjustable BEC voltage in 0.1 V increments
• Overvoltage and undervoltage protection, overheat protection, motor stall protection
• Adjustable current limiter
• Emergency shutdown in case of pulse failure
• Configurable acceleration, timing, electromagnetic brake, etc
• Configuration directly in KAVAN transmitter with ETHOS operating system using Lua scripts
• Low noise due to high-frequency switching
• Automatic telemetry detection: FrSky/KAVAN FPort, JETI Duplex EX, Graupner Hott, Multiplex MSB, Futaba S.Bus2, PowerBox P²Bus. Special firmware with support for Spektrum SRXL2
• Telemetry (dependent on RC system): voltage, current, power, capacity, temperature, speed, energy
• Minimum and maximum telemetry values are recorded
• Configuration via transmitter or external terminal (JETIBOX/SMART-BOX)
• Firmware update via USB interface and MAV Manager program
• Languages: CZ/DE/EN/FR/IT

Other features:

• Ability to activate synchronous switching (Active Freewheeling) for more precise motor response and less controller heating during aerobatics
• Seamless operation with powerful multi-speed motors and the vast majority of other motors
• Optional connection of a backup battery without additional reductions
• Without the option of an external switch, propeller positioning and the ability to connect an external temperature sensor

KAVAN Smart PRO-45LV SBEC is manufactured in the Czech Republic by MAV Sense sro

Online manual - you can find: TU

Technical data:

• for models: aircraft
• Type: three-phase
• Continuous current [A]: 40
• Max. peak current (2 s) [A]: 90
• LiXX articles: 2 - 6
• BEC voltage [V]: 5,5 - 8,4
• BEC current[A]: 10
• Length[mm]: 62
• Width[mm]: 27
• Height [mm]: 10
• Weight [g]: 50
• Adjustment: unidirectional
• Brake: Yes
• Sensor input: Yes
• Programmable: Yes

*Follow the instruction manual included with the product
