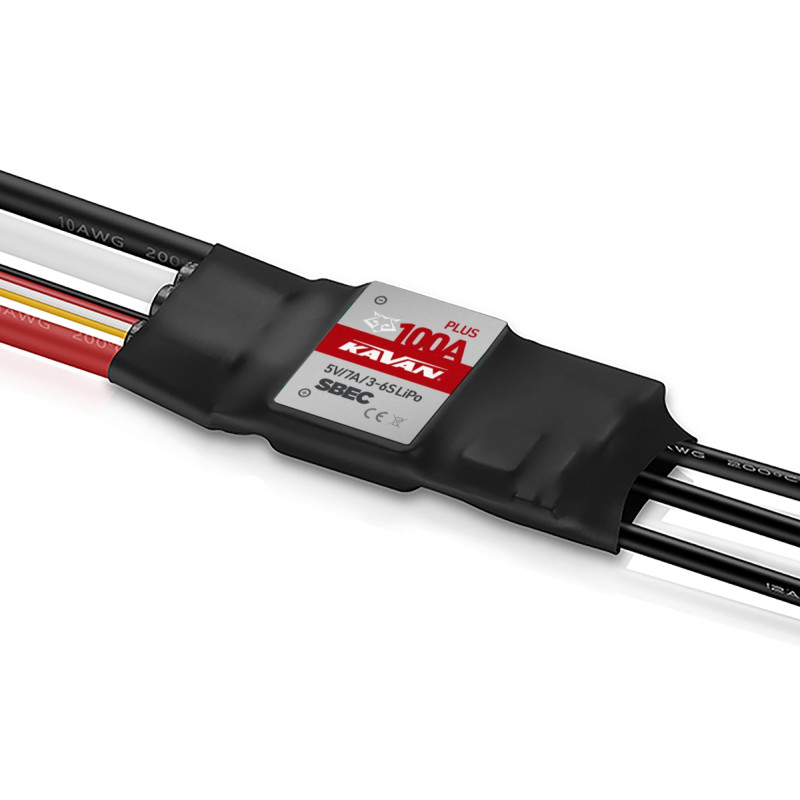

KAVAN SPEED CONTROLLER R-100SB PLUS SBEC (KAV32.42019)

A new generation of programmable controllers for brushless, sensorless AC motors designed with the capabilities of state-of-the-art solid-state technology. They offer easy and clear programming with the transmitter and really simple and instant setup with the KAVAN R LED programming card (sold separately). It is used to control the speed of AC electric motors in LiPo battery-powered recreational model aircraft. Features a powerful BEC pulse power supply stabilizer to provide power to the receiver and servos from the drive battery.

Specifications:

• Application: Aircraft
• Continuous current [A]: 100
• Max peak - instantaneous current [A]: 120
• Li-po power supply: 3 - 6
• BEC voltage [V]: 5
• BEC current [A]: 7
• Length [mm]: 85
• Width [mm]: 36
• Height [mm]: 9
• Weight [g]: 92
• unidirectional
• Brake: TAk
• Input for sensors: No
• Programmable: YES
• Programming card: KAVAN Program Card (KAV32.42015)

For more information and photos, please visit the manufacturer's website.

*Follow the instructions included with the product.
