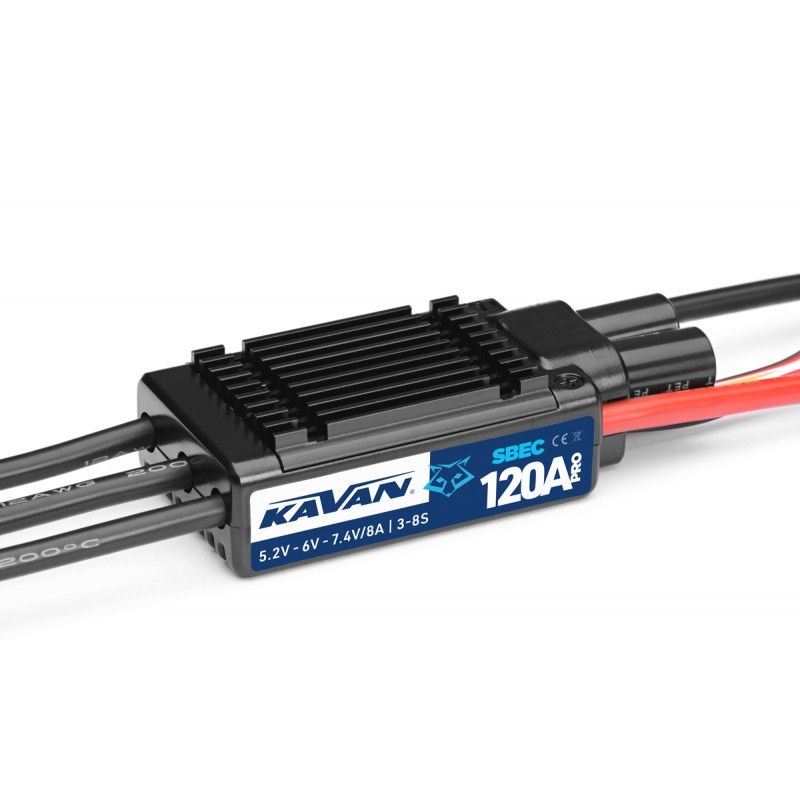

KAVAN SPEED REGULATOR PRO-120SB (KAV32.31045)

Programmable microprocessor controller for AC motors without sensors ("brushless, sensorless") for recreational and sports aircraft models powered by LiPo / Li-ion / LiFe batteries. It uses advanced optimized control technology that greatly improves gas response and power stage control efficiency. The design of the controller takes into account the high long-term load capacity and durability that is required in models with more servos. The controllers are equipped with an efficient BEC switching power supply stabilizer with a selectable output voltage supplying power to the receiver and servos from the drive battery.

More information on the manufacturer's website.

Technical data:

• Application: Airplane, Helicopter
• Continuous current [A] : 120
• Max. Peak current - instantaneous [A] : 150
• LiXX supply: 3 - 8
• BEC voltage [V] : 5.2 - 7.4
• BEC Current [A] : 8
• Length [mm] : 77
• Width [mm] : 35
• Height [mm] : 19
• Weight [g] : 93
• unidirectional
• Brake: YES
• Input for sensors: No.
• Programmable: YES
• Programming card: KAVAN PRO (KAV32.31035) or (1RC31035)

* Always follow the attached instructions.
