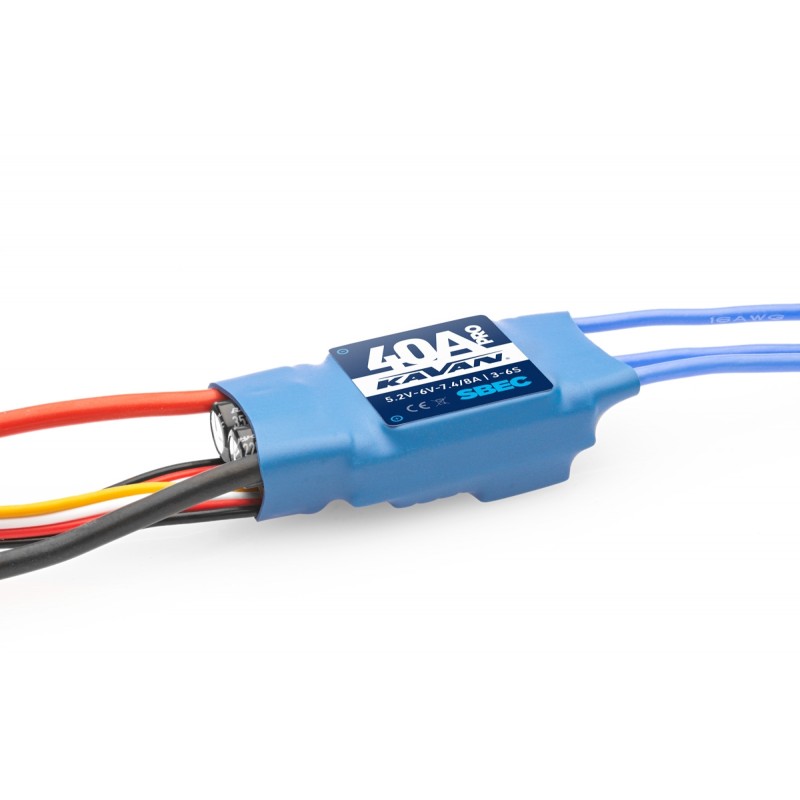

KAVAN SPEED REGULATOR PRO-40SB (KAV32.31020)

Programmable microprocessor controller for AC motors without sensors ("brushless, sensorless") for recreational and sports aircraft models powered by LiPo batteries. It uses advanced optimized control technology that greatly improves gas response and power stage control efficiency. The design of the controller takes into account the high long-term load capacity and durability that is required in models with more servos. The controllers are equipped with an efficient BEC switch-mode power supply stabilizer with a selectable output voltage supplying power to the receiver and servos from the drive battery

Technical data:

• Application: Airplane, Helicopter
• Continuous current [A] : 40
• Max. Peak current - instantaneous [A] : 60
• Li-po supply: 3 - 6
• BEC voltage [V] : 5.2 - 7.4
• BEC Current [A] : 8
• Length [mm] : 47
• Width [mm] : 28
• Height [mm] : 14
• Weight [g] : 44
• unidirectional
• Brake: YES
• Input for sensors: No.
• Programmable: YES
• Programming card: KAVAN PRO (KAV32.31035) or (1RC31035)

* Always follow the attached instructions.
