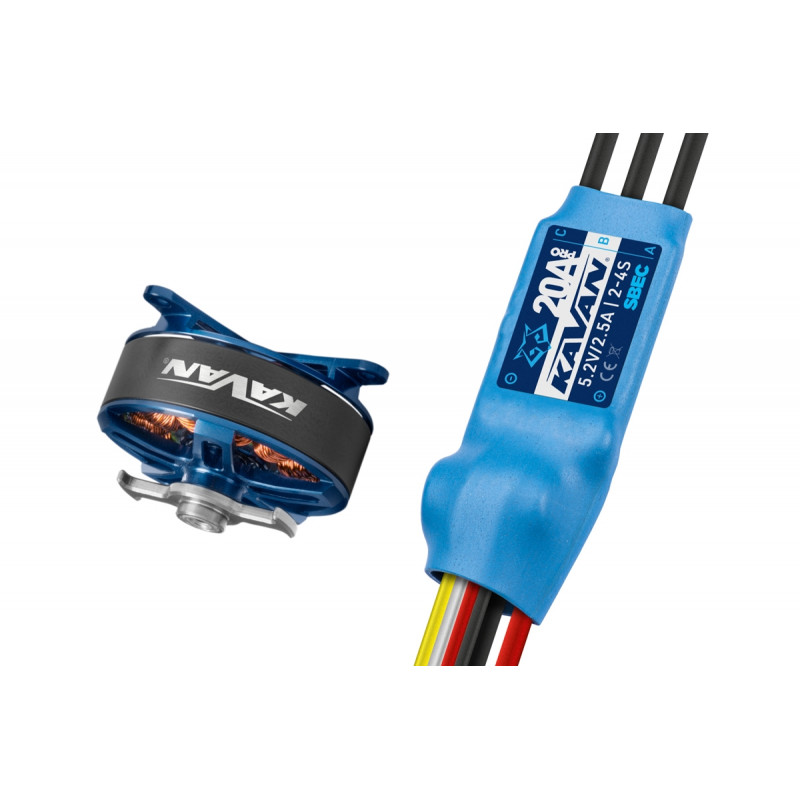

KAVAN PRO 2813-1500 MOTOR + REGULATOR PRO-20SB (KAV30.1612C)

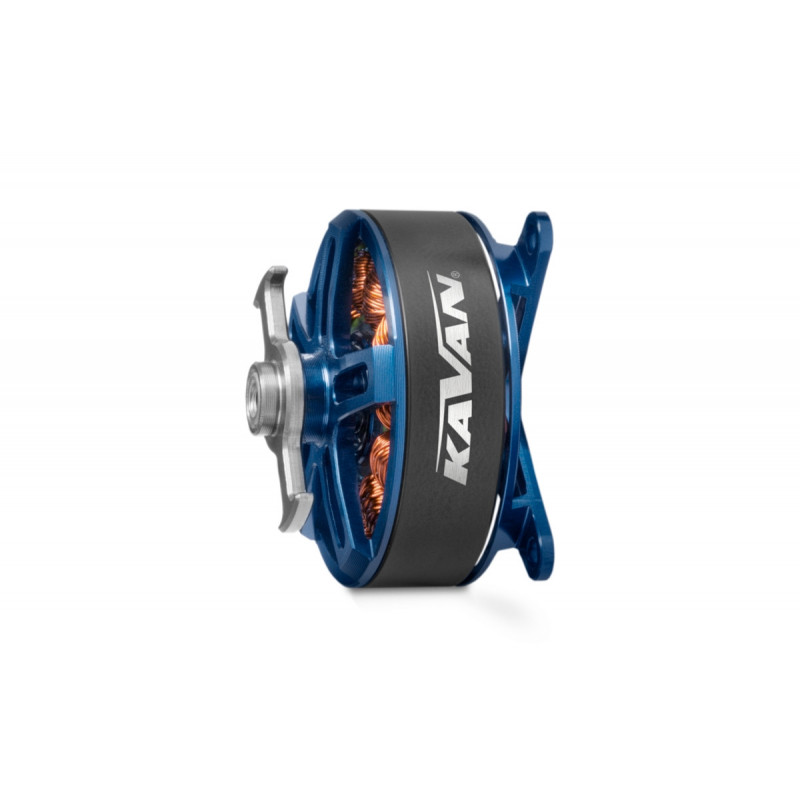

KAVAN PRO motors are high-performance brushless fourteen-pole rotary electric motors ("outrunner") with excellent electrical characteristics, thoughtful design and top quality workmanship. Shafts made of hardened steel and high-quality bearings ensure a long service life, high-quality materials used for the stator and rotor also guarantee excellent performance with high efficiency. These are slow-speed, high-torque motors that can cope with large-diameter propellers without the need for gears

• Motor designation system: PRO xxYY-zzzz
• PRO - AC motor with rotating housing ("outrunner", "circulator")
• xx - diameter of the motor in mm
• YY - length of the motor in mm
• zzzz - number of revolutions per volt (rpm per V), "KV"

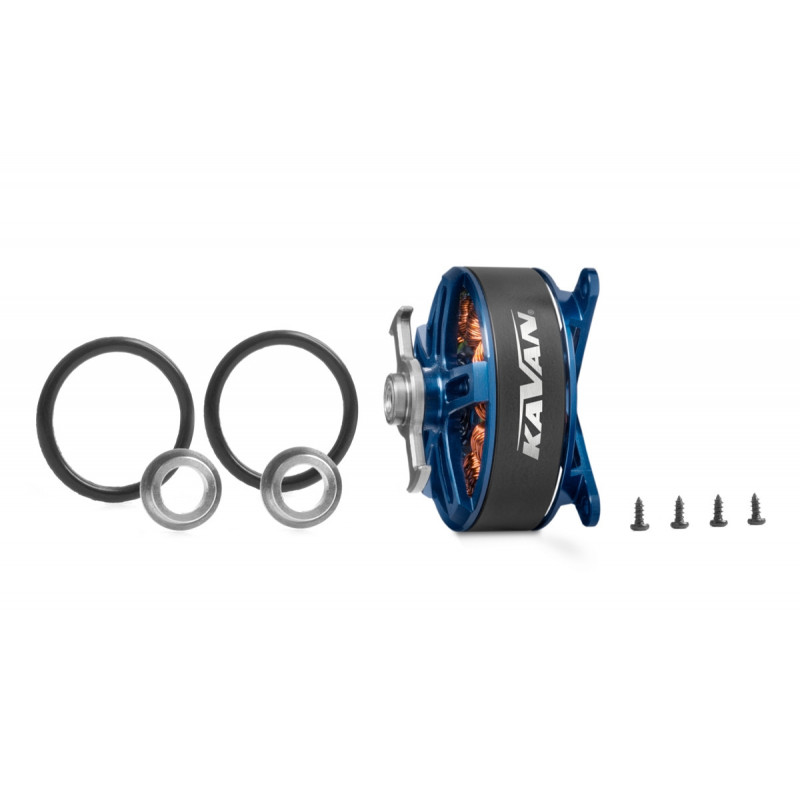

The motor set includes: motor with wires without connectors, rubber rings, mounting screws.

Technical data:

• Cell power supply: LiXX 2 - 3
• RPM per volt [rpm/V]: 1500
• Max power (180 s) [W]: 170
• Internal resistance [mOhm]: 96,5
• Idle current (at 10 V) [mA]: 700
• Max peak current (180 s) [A]: 15

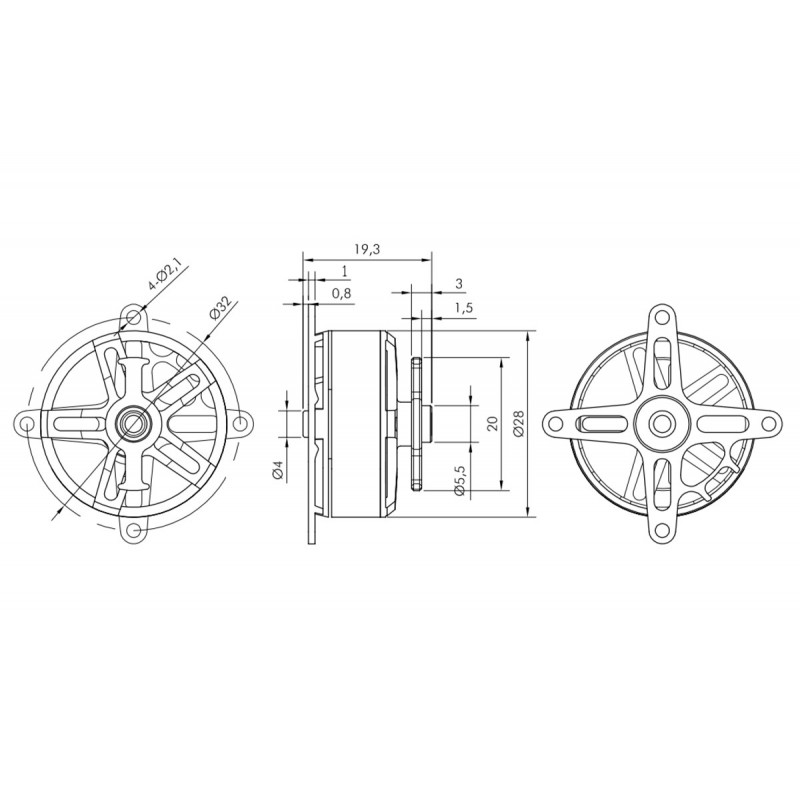

• Diameter [mm]: 28
• Length [mm]: 13,3
• Overall length [mm]: 19,3
• Shaft diameter [mm]: 4
• Weight [g]: 27,6
• Number of poles: 14
• Timing [°]: 20 - 25
• Speed controller [A]: 15 - 20
• For gliders weighing up to [g]: 300
• For "trainers" weighing up to [g]: 280
• For aerobatic models up to [g]: 250
• For 3D models weighing up to [g]: 200
• Recommended propeller 2S: 9x5" - 10x6" / 3S: 8x4"

*Follow the instructions included with the product.

plus:

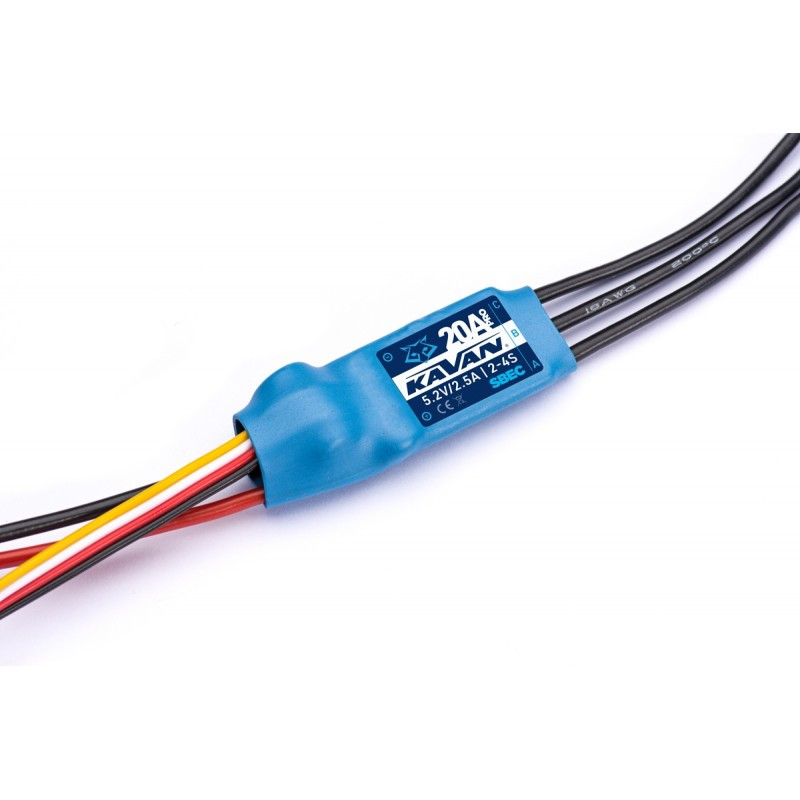

Programmable microprocessor controller for AC motors without sensors ("brushless, sensorless") for LiPo battery-powered recreational and sport aircraft models. It uses advanced optimized control technology that significantly improves gas response and power stage control performance. The design of the controller takes into account the high long-term load capacity and durability that is required for models with more servos. The controllers are equipped with a powerful BEC pulse power supply stabilizer with selectable output voltage providing power to the receiver and servos from the drive battery

Specifications:

• Application: Aircraft, Helicopter
• Continuous current [A]: 20
• Max peak - instantaneous current [A]: 30
• Li-po power supply: 2 - 4
• BEC voltage [V]: 5,2
• BEC current [A]: 2,5
• Length [mm]: 25
• Width [mm]: 15
• Height [mm]: 5
• Weight [g]: 13
• unidirectional
• Brake: YES
• Input for sensors: No
• Programmable: TAk
• Programming card: KAVAN PRO (KAV32.31035) or (1RC31035)

*Always follow the enclosed instructions.
