HOBBYWING SKYWALKER 120A SPEED CONTROLLER - V2 - UBEC ( HW80060441 )

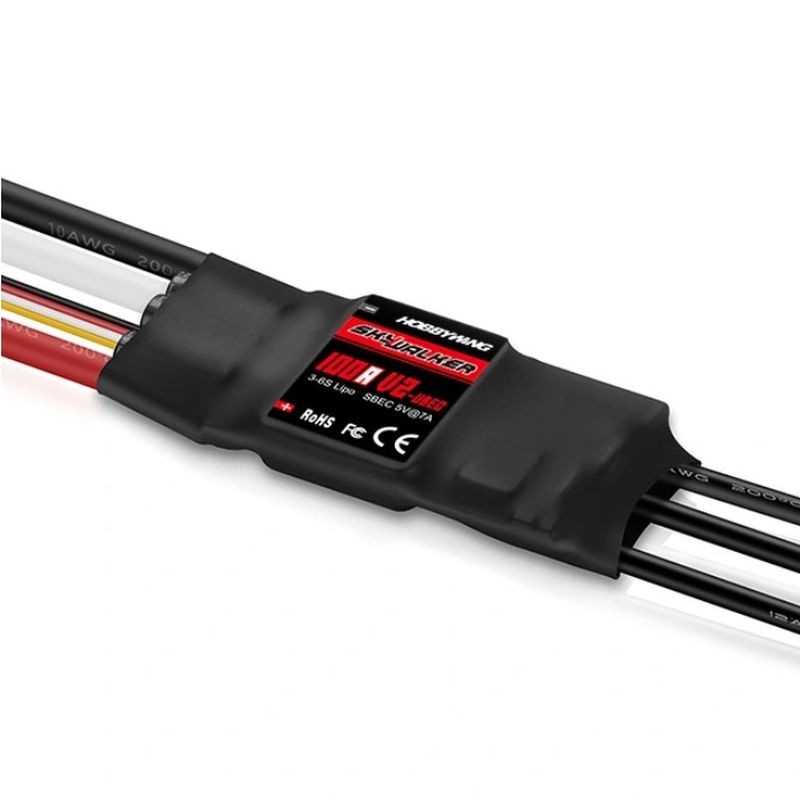

Hobbywing HW80060441 - Skywalker 100A V2 ESC

Features:

• Equipped with a powerful 32-bit microprocessor (with a clock frequency of up to 96 MHz), it is compatible with a variety of brushless motors.
• DEO (Driving Efficiency Optimization) technology greatly improves throttle response and driving performance, and reduces ESC system temperature.
• A separate programming cable to connect the ESC controller to the LED programmer, allowing users to program the controller anytime and anywhere. (For details, refer to the HOBBYWING LED programmer's instruction manual.)
• Normal/reverse braking mode (especially reverse braking mode) can effectively shorten the landing length of an aircraft.
• Search mode can help users find the aircraft with alarm signals emitted when the aircraft falls into a difficult environment.
• Multiple protection functions, such as start-up protection, ESC thermal protection, capacitor thermal protection, overcurrent protection, overload protection, incorrect input voltage protection and throttle loss protection, effectively extend the ESC's life.

32-bit ARM M0 processor.
A powerful 32-bit ARM M0 processor with a frequency of up to 96 MHz, supports a maximum speed of up to 300,000 RPM (bipolar motor). High quality and reliability make the SKYWALKER V2 series very economical.

DEO Technology / Active Free Running.
The DEO (Driving Efficiency Optimization) technology used in the controller has many advantages. Fast and smooth throttle response, better stability and flexibility in flight. Higher control efficiency, longer flight time. Lower regulator temperature, higher reliability.

• Flexibility during flight
• Lower ESC temperatures
• Longer flight time

Reverse brake
With reverse brake mode and linear reverse brakes enabled, it can effectively shorten the landing length of an aircraft, simulating the landing of a real aircraft. Normal brake mode and off brake mode are also available; the braking force is adjustable in normal brake mode.
(This is a registered patent of HOBBYWING) Mode

Model Search
Search mode can help users find their aircraft by pulsing the engine to beep when the aircraft falls into a hard-to-reach place and is difficult to find. This mode can also be used to tell the user to disconnect a regulator battery that has not been running for a certain period of time to prevent the battery from being discharged and damaged.

Multiple protection
Multiple protection functions include abnormal input voltage, regulator thermal protection, throttle signal loss (or fail-safe) and low-voltage cut-off effectively extend the life of the regulator.

• Incorrect input voltage
• Low voltage cutoff
• Thermal ESC
• Throttle signal loss

Specifications:

• Brushless/Brushless: Brushless
• High Voltage/Standard: Standard
• Continuous/peak current: 100A/120A
• Input: 3-6S LiPo
• BEC output: 5V 7A switching mode
• Input wires: 10AWG 150 mm
• Output wires: 12AWG-100mm
• Input connectors: No
• Output connectors: 4mm gold plugs (female)
• Firmware upgradeable: not supported
• Size: 85x36x9mm
• Weight: 92g

ESC programming with:

• Transmitter: supported
• LED program card: not supported
• LED program box: supported
• LCD programmer: not supported
• WiFi module: not supported
• OTA programmer: not supported
• Program port: Program firmware

*Follow the instruction manual included with the product.
