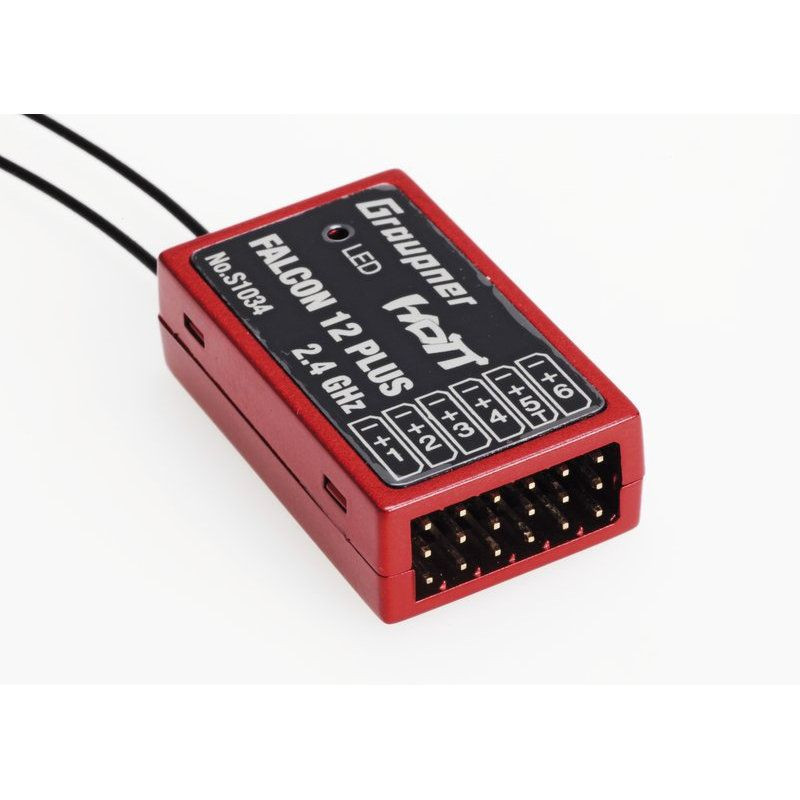

GRAUPNER/SJ RECEIVER FALCON 12 PLUS (S1034) GYRO

Falcon 12 plus Graupner introduces a new high-performance 6-channel receiver. the 3-axis gyroscope, 3-axis accelerometer and Vario are integrated.
The receiver also transmits receiver voltage and temperature, as well as signal strength and altitude without the need for additional sensors.

A new antenna amplifier and omnidirectional antenna provide extreme range and coverage. A faster 32-bit L4 processor provides power savings and higher performance, so the Falcon 12 PLUS can also be used for helicopters with a rotor head without a mechanical stabilizer (flybarless system) or as a control unit for multicopters.

Of course, the Falcon 12 can also be used for model aircraft. The receiver allows different flight modes with the gyro: OFF, normal stabilization, header lock mode and speed mode, which allows very easy flying in knife-edge flight and turns, and thus is an excellent support for the pilot

Specifications:

• number of channels: 6 (8 "SUMD" channels on channel 5)
• dimensions: 36x21x10 mm
• power supply: 3.6 - 7.4 V
• weight: 8 g

*Follow the instructions included with the product.

Falcon 12 plus is versatile among 6-channel receivers.

3-axis gyroscope + 3-axis accelerometer:

• Extremely simple and fast
• Quick and easy setup using the HoTT transmitter in the telemetry menu

Aircraft model:

• Stabilize model aircraft in adverse weather conditions up to 3 axes
• Smooth and natural flight with proportional gyro damping
• Stabilization for clean execution of aerobatic sets
• Thanks to the 3-axis gyro, it is possible to fly very smoothly even aerobatic models that are otherwise difficult to control
• Acrobatic elements can be performed much more cleanly
• Easy configuration of the gyro assignment
• Parameter setting with HoTT telemetry
• Beginner software with preset mode for HoTTrigger 1400 and V-Venture
• Great for easy landings in difficult weather conditions.

Flybarless system for the helicopter:

• Basic setup can be done in an instant
• Quick and innovative way to assign axes, thus flexible positioning
• Small size for easy placement and fewer cables
• Extremely lightweight
• Latest generation of vibration-resistant 3-axis sensors
• Automatic pirouette recognition and optimization with cyclic compensation of plate and tail direction
• For all popular 90/120/135/140 degree round boards
• Ability to rotate the cycle board up to 90 degrees
• Choice of standard and expert menus if needed
• Parameter sensitivity can be changed during flight, flying style, but also according to the phase of flight, with adjustable controls
• Super fast thanks to reduced transfer time from the receiver to the Flybarless system
• For a sense of direct control

Multicopter Control Unit:

• Q06 firmware is used to control the flight of the helicopter and must be upgraded to the multicopter firmware
• Basic settings can be made in minutes using the telemetry menu
• Quick and innovative way to assign axes, thus flexible mounting direction
• The latest generation of vibration-resistant 3-axis sensors
• The case protects the electronics in case of an accident. Special double-sided tape inside dampens vibrations
• 8kHz gyro frequency, multishot and high-speed PID control routines, as well as new software filters provide a superior flight experience
• Also new is the quad-type XI (Quadrocopter X with reverse propeller rotation), which has proven itself especially in FPV racing, maintaining a clear FPV view
• When the S8437 GPS sensor is connected to CH5/Telemetry and CH5 is set to SENSOR, additional features are available: GPS maintains altitude, ability to automatically return to initial start position, ability to enter waypoints (with HoTT Viewer 2 and USB-OTG cable)
• Telemetry support for HoTT sensors and sensors with HoTT telemetry protocol from other manufacturers
• SUMD output for other Flybarless receivers
• Suitable for high voltage. Input voltage range 3.6 - 12.6 V
• Can be programmed and used with all HoTT transmitters with telemetry

Flybarless for helicopter:

• Easy programming of basic settings via telemetry menu
• The pirouette optimization is automatically determined based on parameters and works very well
• Extreme flight stability with full 3D capabilities even in basic settings
• Tail and bike plate can be easily adjusted via the telemetry menu or with optional sensors
• Additional optimization options in expert mode for personal flying style and personal settings

Extremely simple basic setup via telemetry:

• Rotor direction
• Cyclic board type
• Cyclic board servo frequency 50-200 Hz
• Cyclic board direction
• Servo cycle boards Servo 1-3
• Cyclic board range up to 8°
• Cycler board spacing A/B
• Cycler board limit setting
• Cycler board rotation
• Variable pulse for rear servo 760μs, 960μs, 1.5ms
• Variable frequency for tail servo 50-333Hz
• Tail servo center position
• Deflection YES / NO
• Logging for service purposes
• Expert mode YES / NO
• Simple gyro axis assignment
• Gyroscopic effect for tail and cyclic plate using telemetry or adjustable sensors
• Other parameters can be set in expert mode
