FUTABA T26SZ + R7208SB receiver

(Translation - translator)

The latest top-of-the-line 26-channel mid-range RC kit using the FASSTest-2.4GHz telemetry transmission system, designed for sports and very advanced recreational modelers and their simple, complex and large models. The transmitter can also be switched to T-FHSS Air (also telemetry) and S-FHSS transmission modes, allowing it to be used with a wide range of Futaba antenna receivers with and without telemetry.

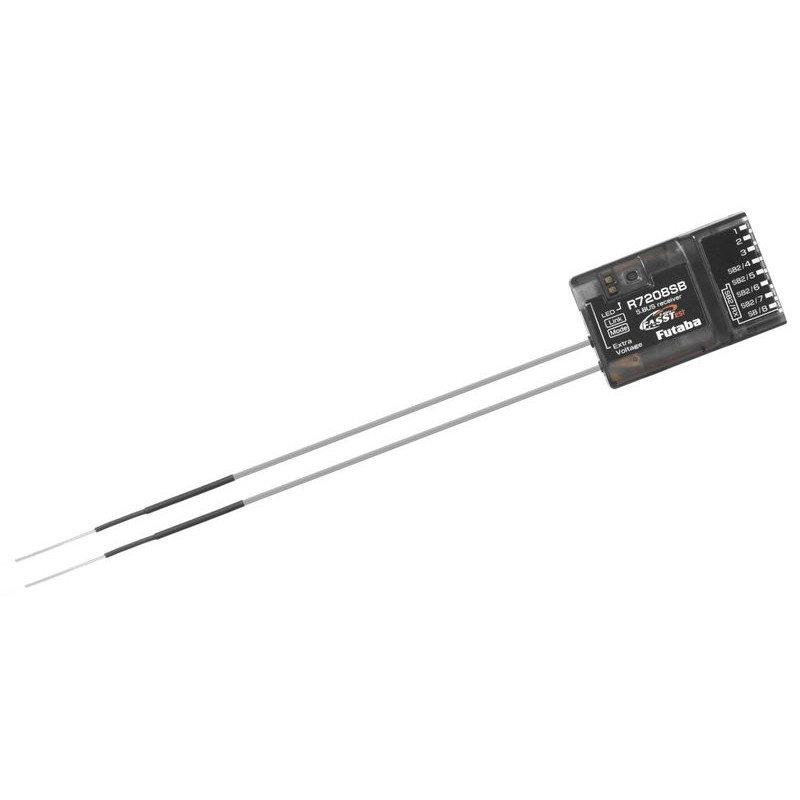

With the R7208SB receiver included in the kit, you gain 8 PWM channels for classic servos (or up to 26 channels when using receiver modes 2 or 3) or a total of 26 channels via the S.BUS and S.BUS2 buses; as well as telemetry data on the receiver's supply voltage, the voltage of another external battery (such as a drive battery) and the strength of the signal captured by the receiver. Additional telemetry data can be obtained from additional telemetry sensors connected to the S.BUS2 bus.

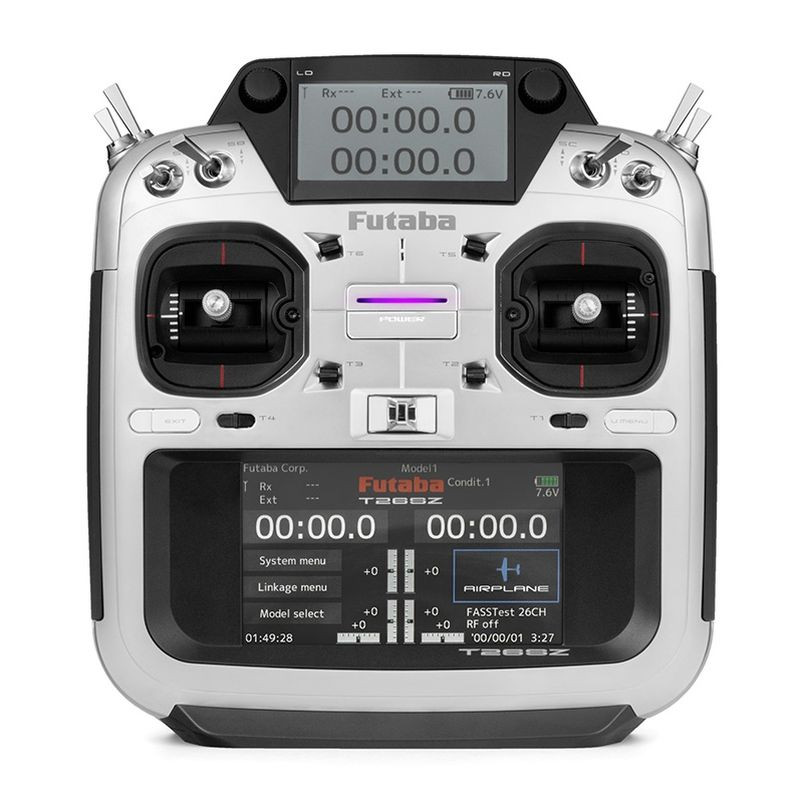

Housed in a convenient-to-use enclosure, the T26SZ transmitter features precision cross-type controls with adjustable locking/neutralizing and lever angle; magnetic encoders are used instead of traditional potentiometers to ensure high durability and parameter stability. The T26SZ has 8 switches, 4 faders, 6 digital trimmers and 2 rotary proportional controls.

Programming is done via a pair of pushbuttons and a large, backlit LCD color touchscreen for easy navigation through intuitive menus. Selected telemetry or timing data can be displayed on an additional LCD display on top of the transmitter. The T26SZ has memory for 30 models, which is infinitely expandable via microSD card, and a wide range of advanced mixing functions for aerobatic aircraft, gliders, helicopters and multicopters. In addition to displaying telemetry data on the main and auxiliary displays, a voice signal of telemetry data in the headphone jack (not included) is also available.

The T26SZ remote control is also equipped with a teacher/student jack and a jack for programming and configuring S.BUS CGY770/CGY755/CGY760R or GYA553 servos and gyro systems. The USB charging/data port on top of the transmitter allows the T26SZ to be used directly as an RC simulator controller when connected to a computer via a USB cable, without the need for an additional USB interface.

A 2S LiPo battery with a capacity of 2000 mAh was used for power; you will need a standard 5 V/2 A USB adapter to charge it.

FEATURE

• FASSTest 26CHtransmission system with 24 proportional and 2 switched DG channels, FASSTest 18CH with telemetry (16 proportional + 2 switched channels), superfast FASSTest 12CH (12 channels, telemetry only receiver supply voltage), T-FHSS Air with telemetry (16 proportional and 2 switched channels), S-FHSS 2.4GHz without telemetry (8 proportional channels), CRSF protocol for TBS Crossfire (one-way communication)
• 4.3-inch color backlit LCD touchscreen for quick and easy programming

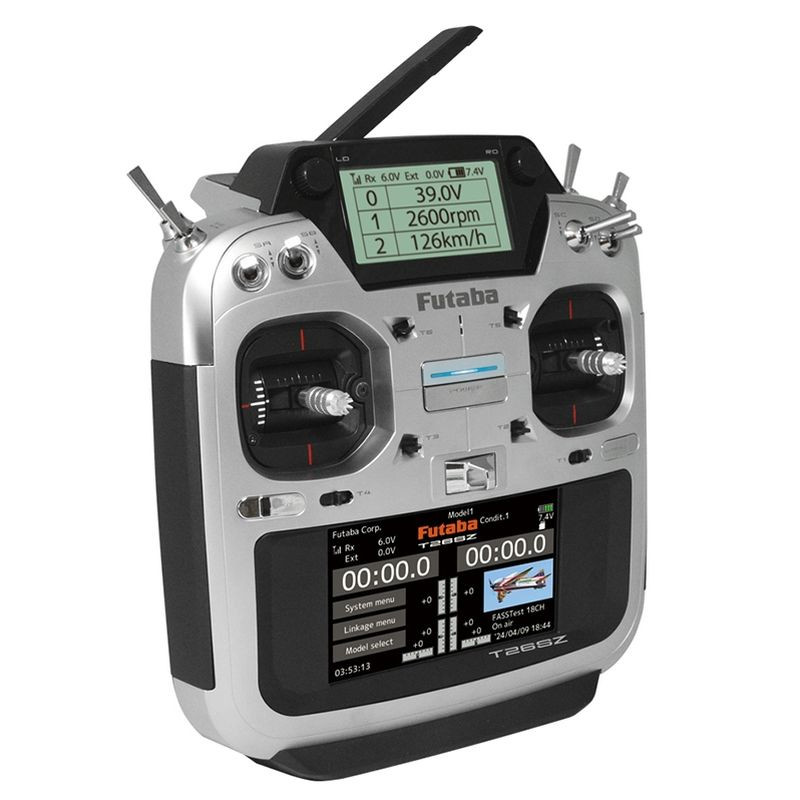

• Auxiliary backlit LCD for telemetry/timer data display
• Up to 8 flight modes for superior model control in all conditions
• Full telemetry with data transfer from a wide range of sensors and SD card storage capability
• Memory for 30 models, with unlimited expansion via SD card
• Transmitter's 7.4V 2000 mAh LiPo battery
• Telemetry voice output on headphone jack (3.5 mm jack)
• Upgradable software
• Freely assignable 4 faders and 2 knobs, 8 switches, 6 digital trimmers
• Precision cross controls mounted on 4 ball bearings with magnetic encoders instead of potentiometers
• Freely adjustable cross control mode (no need to open the transmitter box to change the mode and adjust the strength of the neutralizing springs)
• Teacher-student socket
• Wireless teacher-student module allowing Futaba RC kits operating on the T-FHSS Air transmission system to be used as students without the need for a cable connection
• Socket for programming S.BUS servos, updating S.BUS2 servo software, updating telemetry sensors and receiver software (including setting receiver channel mode), setting DLPH-2 receiver backup systems, setting CGY770/CGY755/CGY760R and GYA553 gyro systems, or connecting TBS Crossfire long-range remote control systems (CRSF protocol, one-way communication)
• USB data/charging socket to allow the transmitter to be used as an RC simulator control device on a PC, and to charge the transmitter battery with a 5 V/2 A USB AC adapter
• MicroSD card slot 32 MB-2 GB (allows to expand model memory, backup model memory, update transmitter firmware, convert model data programmed in T14SG, FX-22, T12K transmitters, use model data programmed in T16SZ, T16IZ, T16IZ SUPER, T18SZ, FX-32 and FX-36 transmitters)
• Model names up to 15 characters
• Subtrim with added balancer function - the existing Subtrim function has been supplemented with the ability to adjust the entire camber course along a curve up to 17 points, allowing for precise alignment of the movement of multiple servos jointly controlling a single directional control (one servo is selected as a reference, and the movement of the others is fine-tuned relative to it)
• Changing the direction of servo deflection
• Setting end points and deflection limits
• Servo speed settings
• Resetting data
• Emergency deflection of emergency nature
• Servo speed settings
• Double deflections
• Deflection curve setting according to 2 exponential curves or 17-point curves.
• Freely programmable mixes (10 mixes for each flight mode)
• Engine shutdown
• Safe idle operation
• Logically connected switches
• User menu (allows selection of only a few of the most frequently used program functions for greater clarity)
• Quick selection of mix switches (automatically selected by toggling a switch) and their on/off positions
• Ability to assign voice notifications to individual switch positions
• Ability to assign an image to each model (displayed on the main page and on the model selection page)
• Servo and servo monitor
• Two watches (stopwatch or timer)
• Model running time
• Transmitter operating time
• Throttle position indication when turned on
• Adjustable display backlighting
• Cross controller calibration
• Warning signals - sound and vibration
• Range check
• 2 or 3 receiver mode settings, including dual/triple receiver support with automatic backup when using R7208SB or R7308SB receivers

Program menu for aerobatic aircraft

• 13 types of wings
• 3 types of tail surfaces
• 2 types of vertical tail surfaces (winglets)
• Flap adjustment
• Differentiation of aileron deflection
• Blend of ailerons and flaps
• Blend of brake flap and aileron
• Aileron and rudder mixture
• Airbrake and altitude mixture
• Rudder and aileron mix
• Mixed camber (trailing edge curvature)
• Mixed elevator and camber
• Blend of flap and elevator
• Kicked turn
• Butterfly tail surfaces
• Mixed ailevator (elevator rudder for 2 servos)
• Winged
• Mix motor (for switch control with adjustable start and stop)
• Intelligent interface for configuring the Futaba GYA553 gyro system on the transmitter's display with the option of connecting via cable or wirelessly (after preloading gyro data via cable, limited number of functions)
• 4 sequencers for control of retractable landing gear and similar applications with adjustable timing of landing gear shin and landing gear door movement

Program menu for gliders

• 13 types of wings
• 3 types of tail surfaces
• 2 types of vertical tail surfaces (winglets)
• Adjustment of flaps
• Differentiation of aileron deflection
• Blend of ailerons and flaps
• Blend of brake flap and aileron
• Aileron and rudder mixture
• Airbrake and altitude mixture
• Rudder and aileron mix
• Mixed camber (trailing edge curvature)
• Mixed elevator and camber
• Blend of flap and elevator
• Butterfly mix
• Butterfly and altitude mix
• Trim mix 1 a 2
• Butterfly tail surfaces
• Mix ailevator (altitude rudder for 2 servos)
• Winged
• Mix motor (for switch control with adjustable start and stop)
• Intelligent interface for configuring the Futaba GYA553 gyro system on the transmitter's display with the option of connecting via cable or wirelessly (after preloading gyro data via cable, limited number of functions)
• 4 sequencers for control of retractable landing gear and similar applications with adjustable landing gear shin and landing gear door movement times

Helicopter program menu

• 8 types of control dials
• 9-point throttle curves
• 9-point collective curves
• Acceleration
• Autorotation
• Set deviations and corrections for the control plate.
• Cyclic control deviation limit
• Gas correction mixtures
• Gyro gain control
• Collective-needle mixture
• Revolution
• Governor control
• Intelligent interface for configuring Futaba CGY755, CGY760R CGY770R gyro systems on the transmitter display with the possibility of connection via cable (same functions in full as in GPB-1) or wireless connection (after preloading gyro data via cable, limited number of functions)
• 4 sequencers for control of retractable landing gear and similar applications with adjustable movement time of landing gear shins and landing gear doors

Program menu for multi-rotors

• Flight modes
• Deflection setting
• Dual deflection setting
• Freely programmable mixes
• Gyro gain control
• 4 sequencers to control retractable landing gear and similar applications with adjustable timing of landing gear shin and landing gear door movement

Telemetry functions

• Temperature
• Speed (with magnetic or optical sensor, with phase sensor for AC motors)
• Altimeter/variometer
• True airspeed
• GPS
• Voltage
• Proud
• S.BUS2 servo sensor (current, temperature, lever angle)
• Flight recorder (recording telemetry data on SD card)
• EM-100 operating system motor
• Kontronik regulators
• Hobbywing controllers (using SBM-2 interface module)
• Pixhawk® controllers (using the SBS-01ML interface module)
• TL0 lock
• JetCat V10
• Power box

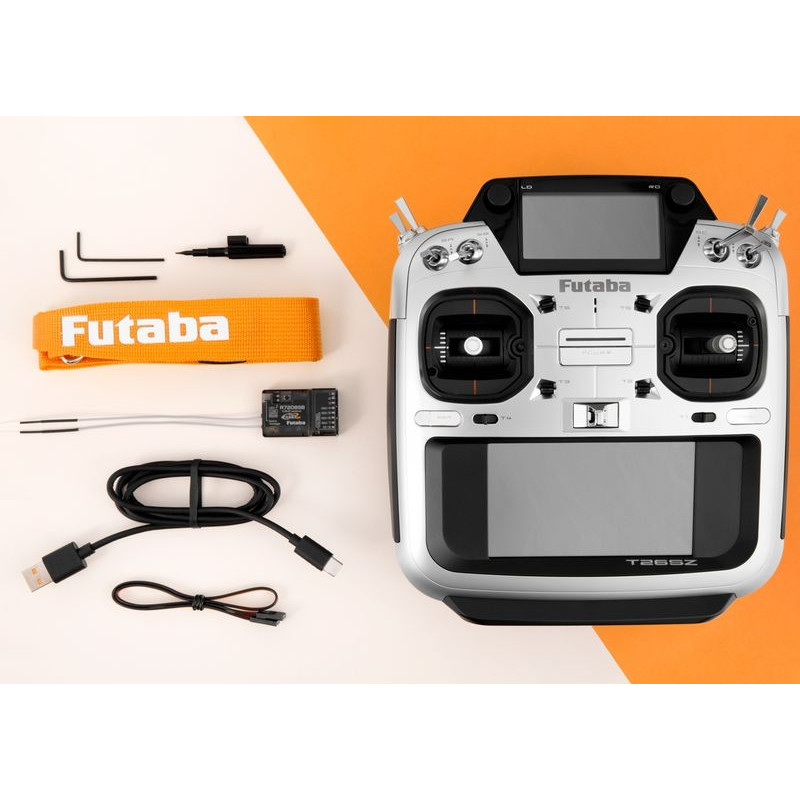

RC KIT INCLUDES

• Futaba T26SZ 2.4 GHz transmitter
• FASSTest/FASST R7208SB receiver
• Transmitter's 7.4V LiPo 2000 mAh battery pack
• Transmitter strap
• uSB cable
• Receiver setup cable

*Follow the instruction manual included with the product.
