KAVAN CHARGER C100 DUO AIR 2*500W (1100BA)

The KAVAN C100 Duo 2x500W small dual-channel charger is designed to offer a high-performance smart charger with mains and car battery power and very simple and clear operation. The C100 Duo is capable of charging and discharging popular cell types (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), and is also equipped with built-in six-channel balancers to ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and programming buttons, which will provide you with a convenient and very clear way to set parameters, control and monitor the charging/discharging process.

In addition to the compact, palm-sized design and intuitive operation, the most noteworthy features are:

• a program for new types of "high-voltage" LiHV lithium batteries with a final charging voltage of up to 4.35 V and ULiHV and a final voltage of 4.45 V
• powerful balancer with a current of up to 1.5 A
• possibility of synchronous operation of both channels for charging two identical batteries or parallel charging of one battery with power up to 800 W
• adjustable terminal voltage for charging and discharging lithium batteries (allows gentler charging, which is liked by aviators, or on the contrary, brutal overcharging, which is loved by "car enthusiasts")
• adjustable final charging voltage for lead-acid batteries (1.90-2.45 V; allows charging of all types of lead-acid batteries)
• ability to communicate and start charging/discharging without setting up the charger in cooperation with iSDT Smart modules for batteries (they store battery data and set charging parameters using the BattAir app) connected via Bluetooth; the charger can work independently with a battery with a set Smart module or under the "supervision" of a smartphone with the BattAir app (Android and iOS)

Overview of basic functions and parameters:

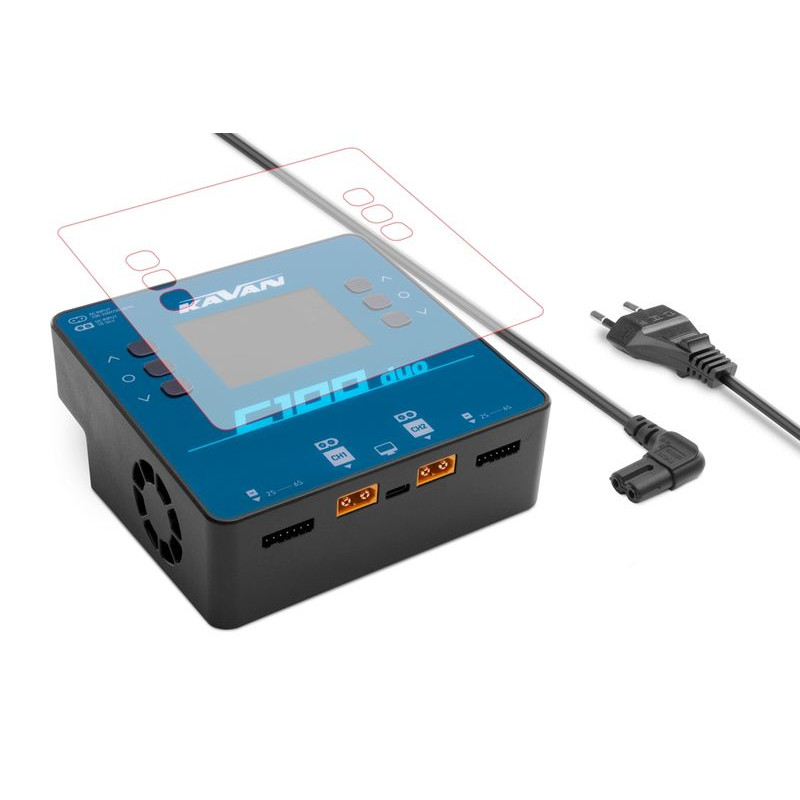

• Mains power supply 100-240 V/50-60 Hz

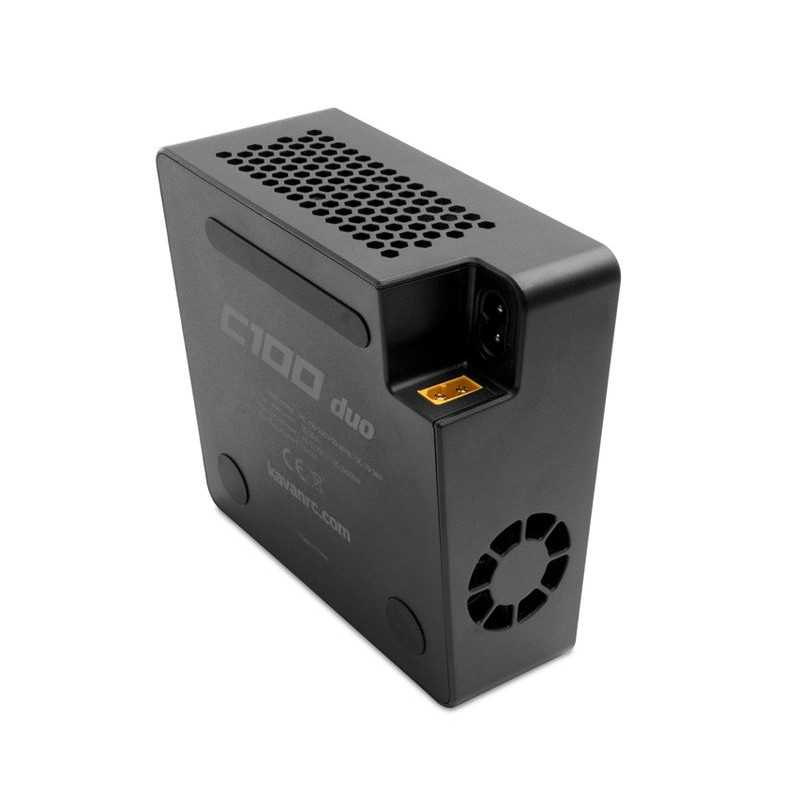

• Power supply 10-30 V DC (XT60 socket)
• For charging and discharging 1 - 16 NiCd/NiMH cells, 1 - 6 Li-ion/Li-poly/Li-Fe/LiHV/ULiHV cells or 2-24 V lead-acid batteries
• Adjustable charging current (0.2 A - 20.0 A) in each
  channel (max. 100 W when mains powered, max. 500 W when powered by a car battery or a powerful stabilized mains power source - to fully utilize the charger's power, the power source must have a voltage higher than 24 V)
• Adjustable discharge current of 0.2 A - 1.5 A in each channel
• Max. charging power 1x 800W in parallel charging mode
• Max. power to discharge 2x 15W, max. 1x 30W in parallel discharge mode
• Charge termination with automatic delta-peak for NiCd and NiMH batteries
• Lithium and lead batteries are charged using the "constant current/constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable terminal voltage for charging and discharging lithium and lead-acid batteries
• Three modes for lithium batteries - charge, discharge and charge/discharge storage; all with or without balancer. And then there's a liquidation discharge mode for safely discharging a used battery before sending it for recycling
• CH1 channel can operate as a stabilized source with adjustable voltage 2-30 and current 1.0-5.0 A
• Easy firmware update via USB-C port

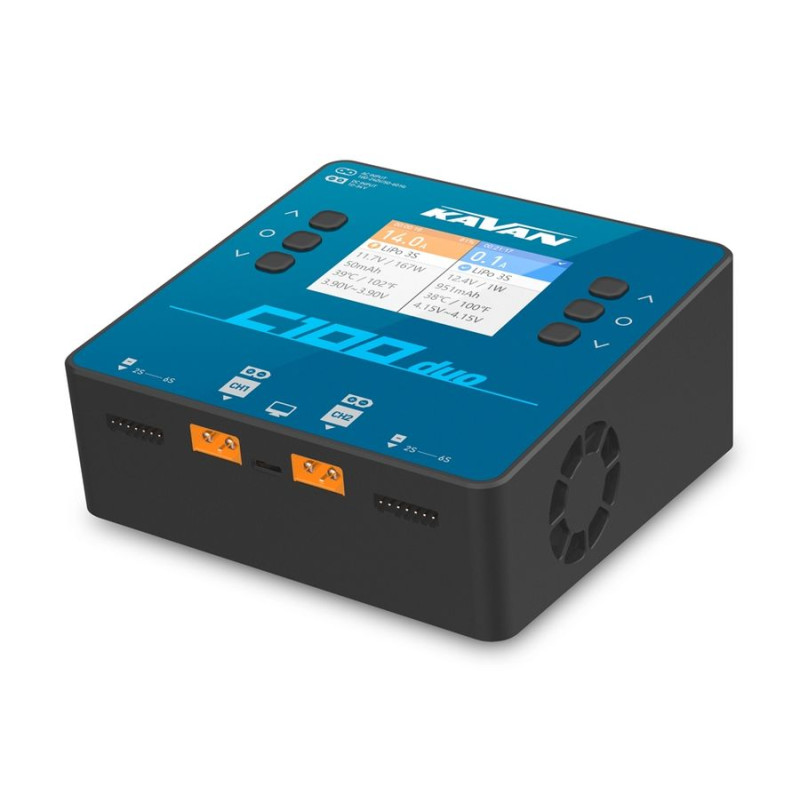

• Backlit color LCD display with simple and clear menus and parameter display during charging/discharging
• Programming buttons for easy and clear charger setup and control
• Safe operation is influenced by a series of warning messages - incorrect input voltage, incorrect connection, inadequate battery or battery condition, etc.
• Fan for forced cooling
• Compact housing, small dimensions

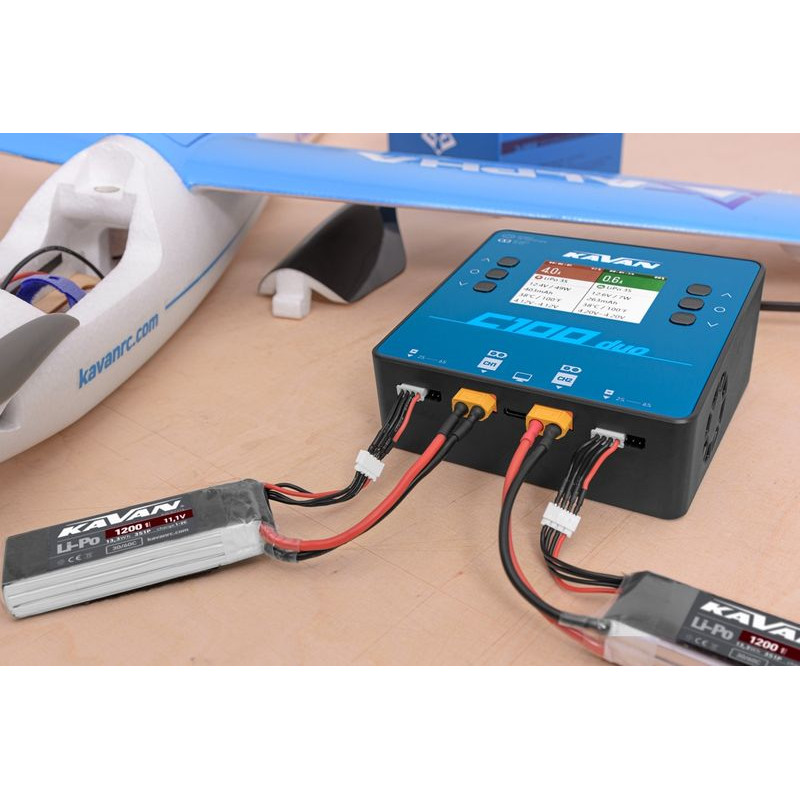

The charger is equipped with XT60 output sockets in both channels and universal sockets for JST-XH service connectors to allow direct connection of battery cables and JST-XH service connectors of 2-6S kits - if you use kits with XT60 and JST-XH connectors , you can do without charging cables and adapters. You can use standard Sky RC or RC System adapters to connect service connectors of other systems.

Specifications:

• Input voltage (car battery - DC) [V]: 10 - 30
• Input voltage (mains - AC) [V]: 100 - 240
• Charging current [A]: 0,2 - 20
• Charging power (mains - AC) [W]: 100
• Charging power (DC car battery supply) [W]: 500
• Discharge current [A]: 0,2 - 1,5
• Discharge power [W]: 15
• Number of channels: 2
• NiCd [number of cells]: 1 - 16
• NiMH [number of cells]: 1 - 16
• Li-Po [number of cells]: 1 - 6
• Li-Ion [number of cells]: 1 - 6
• Li-Fe [number of cells]: 1 - 6
• Li-HV [number of cells]: 1 - 6
• Pb [number of cells]: 1 - 12
• Balancer: Yes
• Balancer current [A]: 1.5
• Length [mm]: 142
• Width [mm]: 135
• Height [mm]: 64
• Weight [g]: 700

*Follow the instructions included with the product.
