ZTW regulators

Z TW REGULATOR 60A / SBEC MANTIS SLIM

€50.00
12-6749
In stock

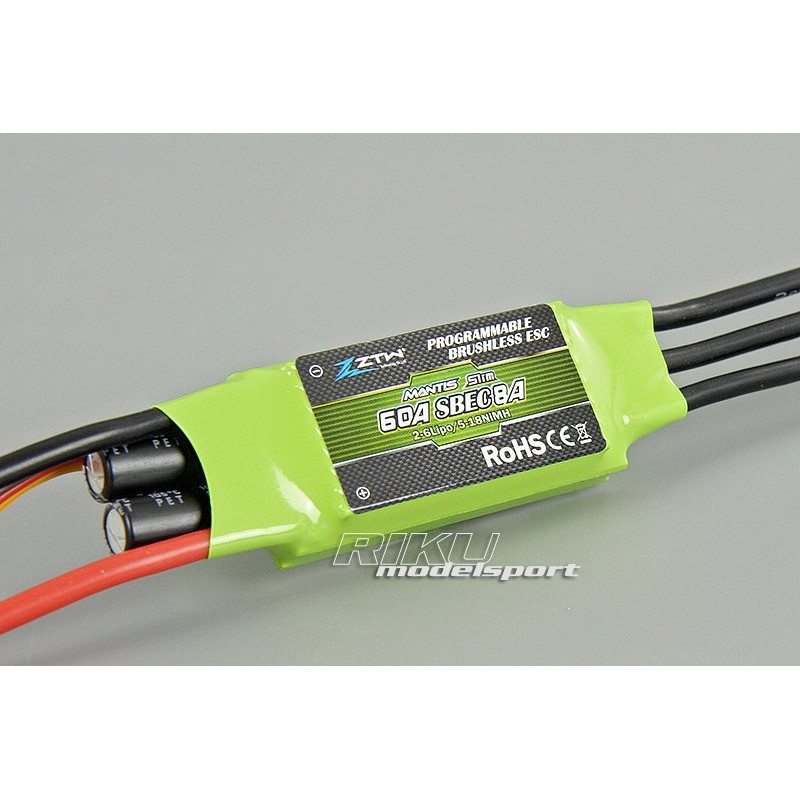

Speed controller Z TW MANTIS Slim 60A SBEC.

Z TW MANTIS Slim regulators are designed for brushless motors used in models of airplanes and motor sailplanes. The small dimensions and low weight are dictated by the special purpose for models in the F3P class and motor sailplanes. The MANTIS Slim series offers 15, 30, 40, 60, and 80 ampere regulators. Z TW MANTIS Slim controllers have the option of changing parameters using a transmitter or a programming card.

C echoes of MANTIS Slim Z TW controllers:

  • BEC with high currents
  • The Timing option and acceleration control allow the engine to operate properly.
  • Thermal protection: when the temperature of the regulator rises above 110 ° C, the output power is reduced in order to cool it down.
  • Protection by closing the throttle in the event of loss of R / C signal.
  • Super smooth, accurate and linear throttle action.
  • Supports high engine RPM - fits most R / C engines.

Programmable parameters:

  • On / Off brake.
  • Battery type (LiPo or NiCd / NiMh).
  • Low voltage threshold (2.8V / 50%, 3.0V / 60%, 3.2V / 65%).
  • Timing: auto (7 ° -30 °), low (7 ° -22 °), high (22 ° -30 °).
  • Engine start type: very soft, soft, plain.
  • Governor - a function used in models of helicopters.
  • Motor rotation direction: right / left.
  • Frequency switch: 8kHz / 16kHz.
  • Voltage cut-off: speed reduction / speed cut-off.

Technical data:

  • Li-Po power supply [liczba ogniw] : 2 - 6
  • power supply Ni-xx, Li-xx [liczba ogniw] : 5 -18
  • maximum continuous current [A] : 60
  • short-circuit current (10sec) [A}: 80
  • BEC parameters [A / V] : 5.5 / 8.0
  • programmable: yes
  • weight [g] : 48
  • dimensions [mm] : 25 x 60 x 15
