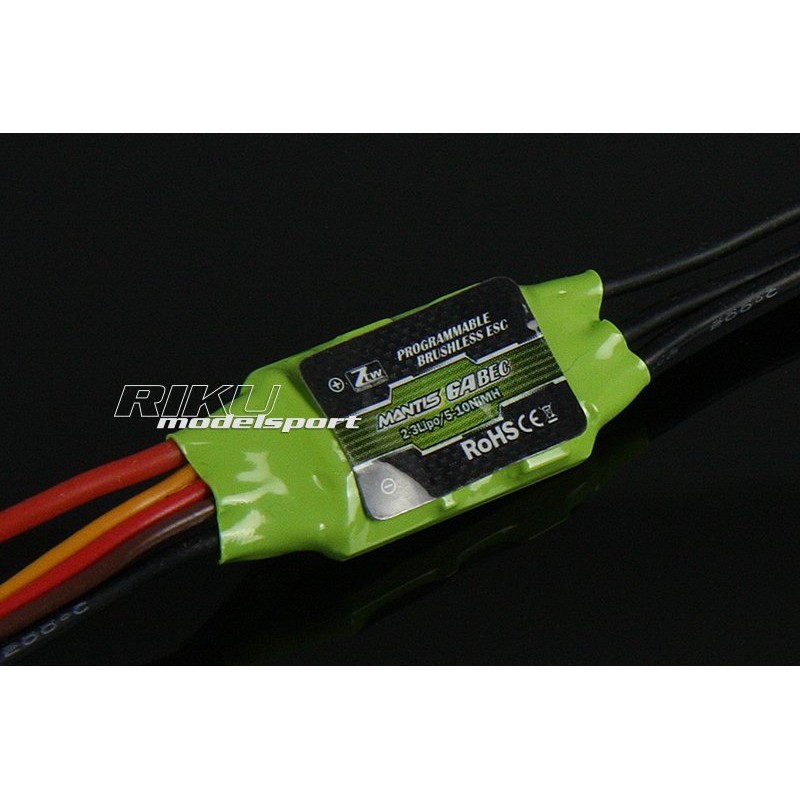

ZTW REGULATOR 6A/BEC 5V/1A MANTIS

Speed controller Z TW B MANTIS 6A SBEC.

MANTIS B series Z TW regulators are designed for brushless motors used in models of airplanes and motor sailplanes. Additionally, they can be switched to the "GOVERNOR" mode, which allows the engine speed to be kept unchanged under variable load. As a result, these regulators are also perfect for use in helicopter models. MANTIS Series B Z TW controllers have the option of changing parameters using a transmitter or a programming card.

Features of the MANTIS B series Z TW controllers:

• BEC 5.0V and 1A continuous current.
• Advanced Governor Mode to maintain engine speed under varying load conditions.
• The Timing option and acceleration control allow the engine to operate properly.
• Thermal protection: when the temperature of the regulator rises above 110 ° C, the output power is reduced in order to cool it down.
• Protection by closing the throttle in the event of loss of R / C signal.
• Super smooth, accurate and linear throttle action.
• High engine RPM support - fits most R / C engines.

Programming the controller can be done using the programming card: Z TW series B

Programmable parameters:

• Brake operation mode: Off / Soft Brake / Mid Brake / Hard Brake.
• Battery type: NiCd / NiMh, LiPo, LiFe.
• Voltage cut-off threshold
• Restoring the configuration to factory settings - Restore.
• Increasing the efficiency of the engine- Motor Timing.
• Output voltage- SBEC Voltage Output.
• Governor mode - a function used in helicopter models.
• Motor rotation direction: right / left.
• Engine start mode.
• Low Voltage Cut Off Mode: Low Voltage Cut Off.

Technical data:

• Li-Po power supply [liczba ogniw] : 2 - 3
• power supply Ni-xx, Li-xx [liczba ogniw] : 5 -10
• maximum continuous current [A] : 6
• short-circuit current (10sec) [A}: 8
• BEC parameters [A / V] : 1/5
• programmable: yes
• weight [g] : 6
• dimensions [mm] : 14 x 21 x 7
