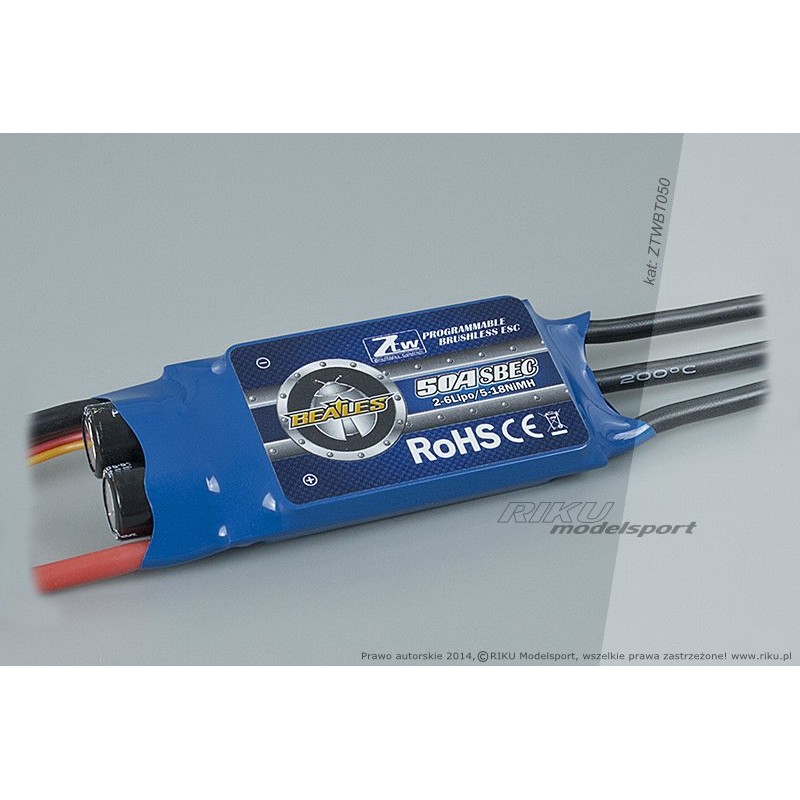

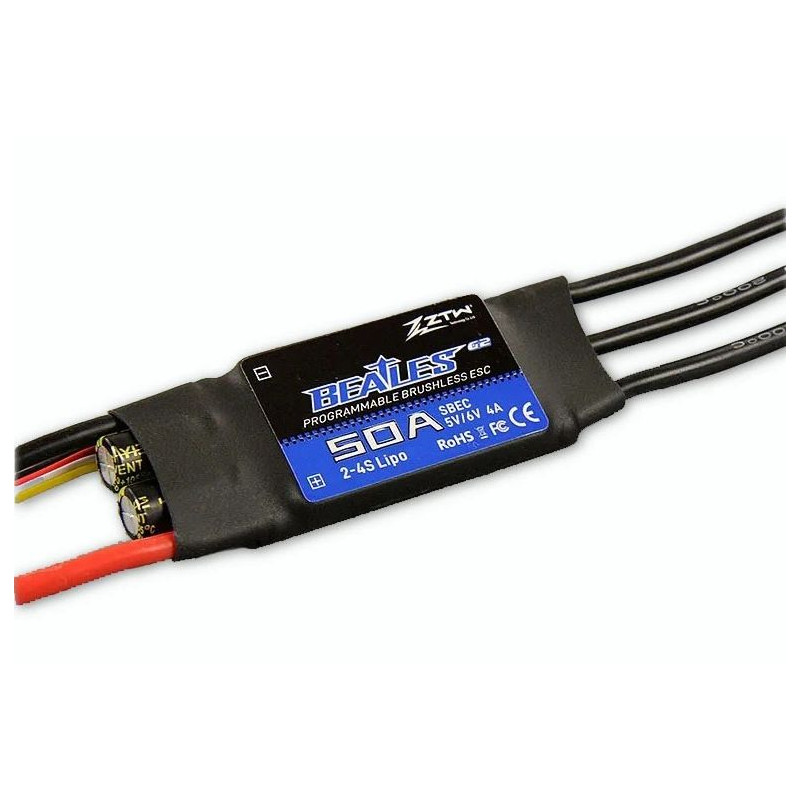

ZTW REGULATOR 50A / SBEC BEATLES

Speed controller Z TW Beatles 50A BEC.

Z TW regulators of the Beatles series are designed for brushless motors used in models of airplanes and motor gliders. Z TW regulators of the Beatles series have the ability to change parameters using a transmitter or a programming card.

Technical data:

• Li-Po power supply [liczba ogniw] : 2 - 6
• power supply Ni-xx, Li-xx [liczba ogniw] : 5 -18
• maximum continuous current [A] : 50
• short-circuit current (10sec) [A] : 60
• SBEC parameters [A / V] : 5 / 5.5
• programmable: yes
• weight [g] : 44
• dimensions [mm] : 56 x 30 x 14

The controller programming can be carried out using the programming card [kat. Z TW AAIR]

Programmable parameters:

• On / Off brake
• Battery type (LiPo or NiCd / NiMh)
• Low voltage threshold (2.8V / 50%, 3.0V / 60%, 3.2V / 65%)
• Timing: Auto (7o-30o), Low (7o-22o), High (22o-30o)
• Engine start type: very soft, soft, plain
• Motor rotation direction: right / left
• Frequency switch: 8kHz / 16kHz
• Voltage cut-off: speed reduction / speed cut-off
