WITH TW REGULATOR 30A / BEC 5V / 3A BEATLES

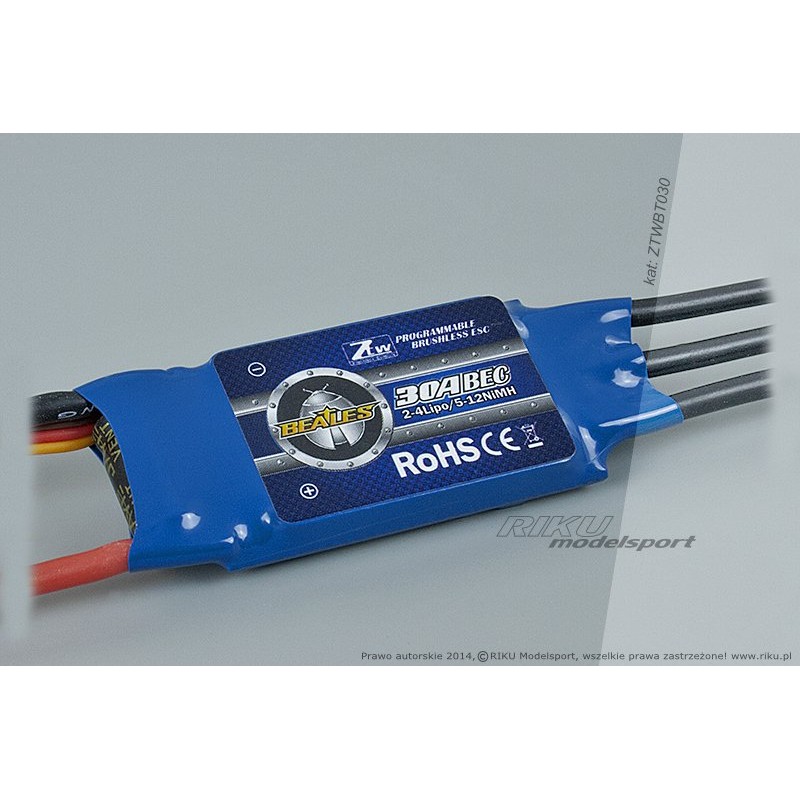

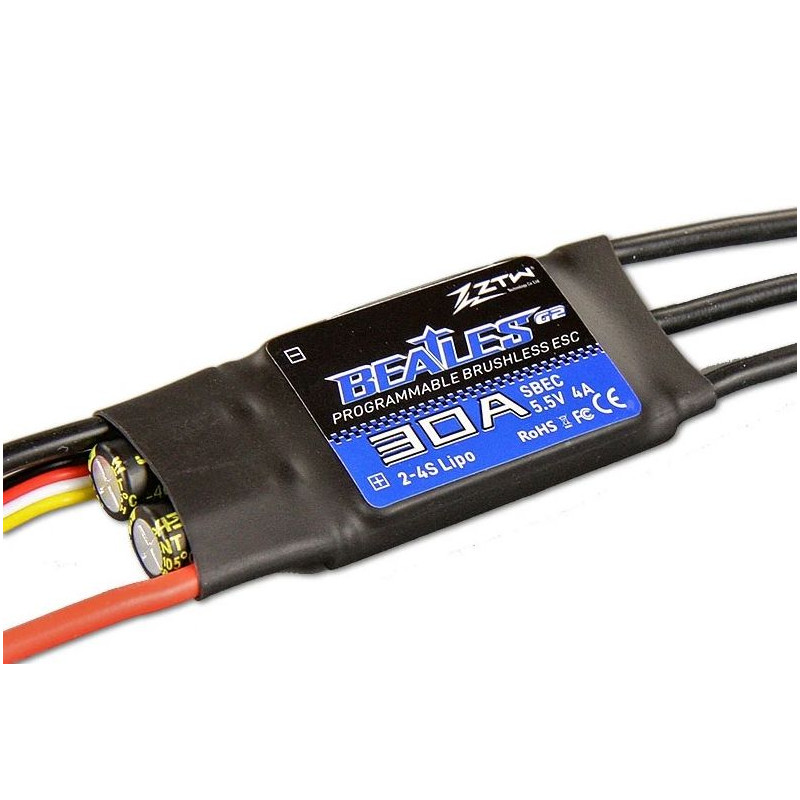

Speed controller Z TW Beatles 30A BEC.

Z TW regulators of the Beatles series are designed for brushless motors used in models of airplanes and motor gliders. Z TW regulators of the Beatles series have the option of changing the parameters by means of a transmitter or a programming card.

Technical data:

• Li-Po power supply [liczba ogniw] : 2 - 4
• power supply Ni-xx, Li-xx [liczba ogniw] : 5 -12
• maximum continuous current [A] : 30
• short-circuit current (10sec) [A] : 40
• BEC parameters [A / V] : 2/5
• programmable: yes
• weight [g] : 24
• dimensions [mm] : 43 x 25 x 10

The controller programming can be carried out using the programming card [kat. Z TW AAIR]

Programmable parameters:

• On / Off brake
• Battery type (LiPo or NiCd / NiMh)
• Low voltage threshold (2.8V / 50%, 3.0V / 60%, 3.2V / 65%)
• Timing: Auto (7o-30o), Low (7o-22o), High (22o-30o)
• Engine start type: very soft, soft, plain
• Motor rotation direction: right / left
• Frequency switch: 8kHz / 16kHz
• Voltage cut-off: speed reduction / speed cut-off
