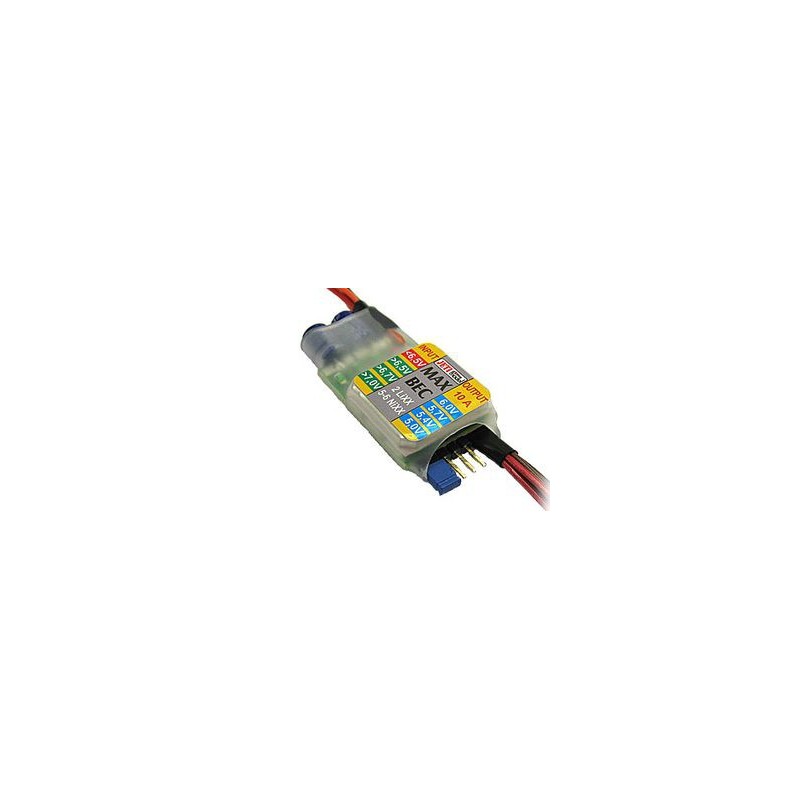

JETI VOLTAGE REGULATION MAX BEC (J-MB)

Jeti MAX BEC is a very useful modeling tool, providing a constant and uninterrupted voltage to the receiver and servos from 5 to 6 V, max 12 A, thus achieving stable, smooth and uninterrupted operation of mechanisms throughout the flight. The selection of the output voltage is made using a jumper.

The device can be powered by both Nickel and Lithium cells (it is recommended to use 2s Li-Pol 7.4V pack, or NiXX 6 - 7.2V pack (5-6 NiXX cells). The input voltage is indicated by 4 LEDs whenever it changes (<6,5V, >6.5V, >6.7V and >7.0V), and when it is higher than 7V, all of them are lit. The fourth, red LED light will come on when the voltage drops below 6.5V, which means that in the 2 LiXX pack the voltage on the cell has reached 3.25V and it should be charged.

The manufacturer also thought to bring out a plug for charging the cells directly in the model, without having to pull them out. In addition, the circuit based on two MOSFET transistors is equipped with an ON - OFF switch.

Technical data:

• Recommended input voltage : 5.5 - 8.4 V
• Maximum accepted input voltage : 16 V
• Jumper-adjustable output voltage : 5.0 - 5.4 - 5.7 or 6.0 V
• Maximum amperage : 12 A
• Continuous amperage : 5 A
• Weight : 25 g.
• Dimensions : 50 x 25 x 10 mm.
