FUTABA 10A voltage regulator (FPPS10)

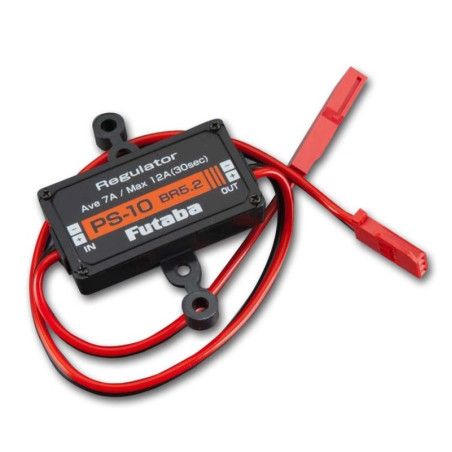

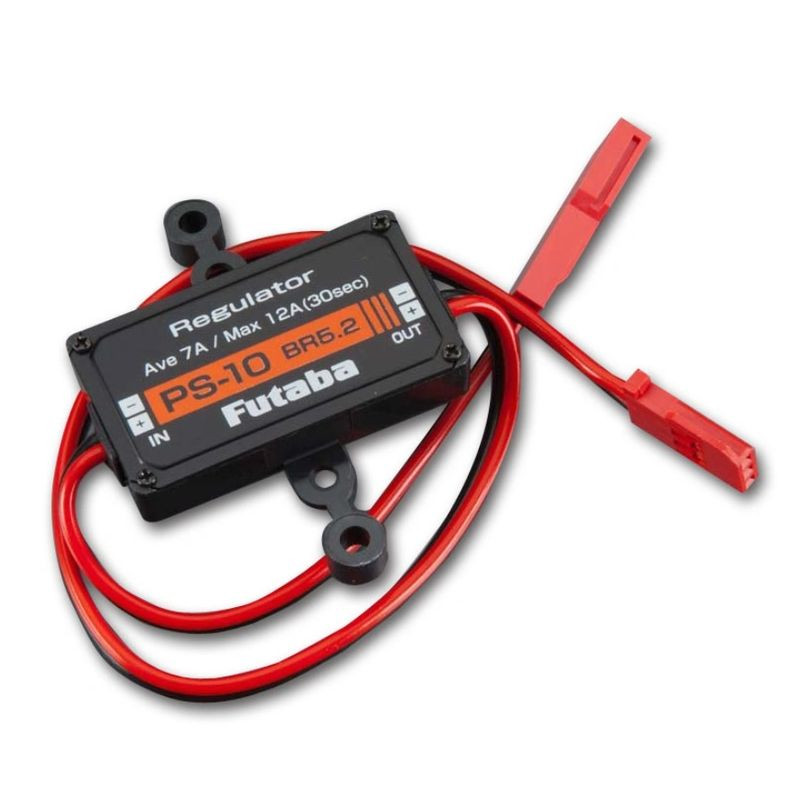

Futaba PS-10 - 10 A voltage regulator

PS-10 10 A Rx Voltage Regulator - Use 4.8 V servos in a high-voltage system.

Allows the use of a 4.8 volt servo with a 2.4 GHz high voltage (HV) radio system
Reduces servo voltage to 5.2 volts
For use with 2.4 GHz systems only

Specifications:

• Input voltage range: 6,0-12,6 V
• Output voltage: 5,2 V
• Rated output current: 7.0 A (maximum temporary 13.0 A)
• Operating temperature range: -10 to +45°C
• Storage temperature range: -20 to +60°C
• Dimensions: 35.6 x 20.5 x 10 mm
• Weight: 14.9 g

*Follow the instruction manual included with the product.
