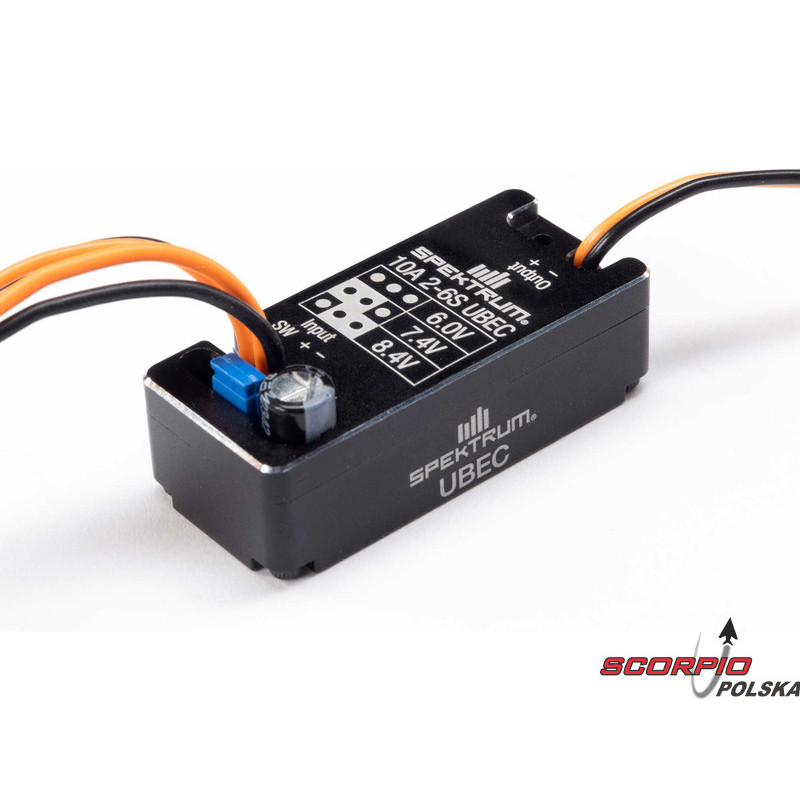

SPEKTRUM BEC circuit 10A / 2-6S (SPMX-1016)

Adjustable Spektrum BEC source, for reducing the voltage from a 2-6S LiPo battery for the receiver, servos and other components. An external BEC is required wherever higher current draw is expected, such as for powerful servos.

The output voltage is set via a jumper to 6.0 / 7.4 / 8.4 V. The current load of 10 A (continuous) allows the use of a wide range of servos and electrical devices, such as lights, winches, etc. High conversion efficiency of up to 90% is ensured by a high-quality DC-DC regulation controller.

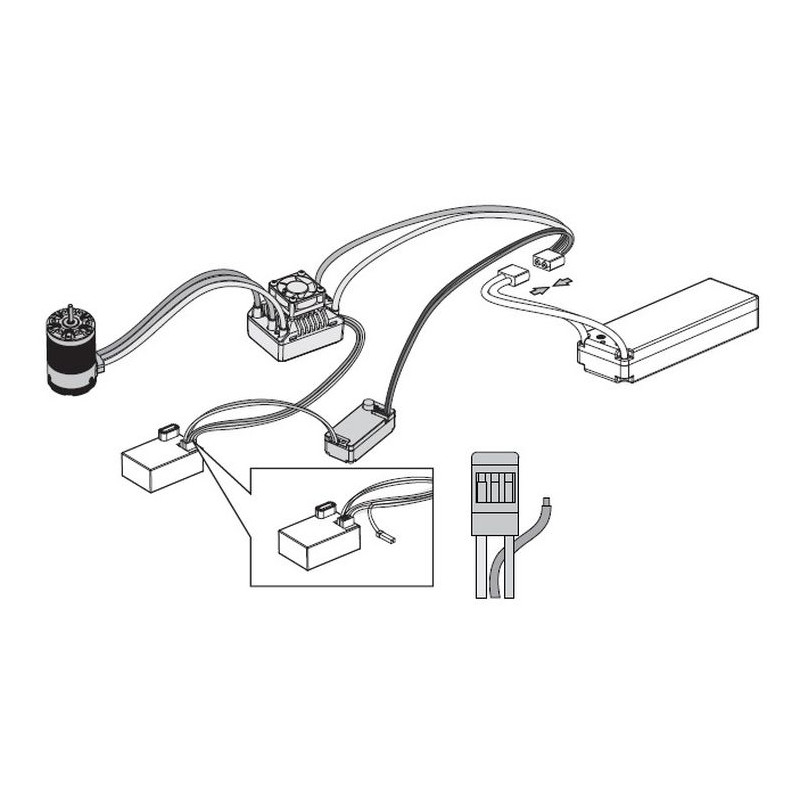

If the controller has an integrated BEC power supply, it is absolutely necessary to disconnect the BEC power output from the controller by disconnecting the middle cable from the RX connector, see the user manual.
The aluminum housing is designed to dissipate heat and reduce electromagnetic interference. In addition, the BEC has overcurrent protection, output short-circuit protection, overheat protection and IP67 water resistance. It can be used in a wide range of RC cars, aircraft and other models.

Properties of Spektrum 10A 2-6S UBEC:

• High-performance DC-DC control circuit for conversion efficiency of over 90%
• Adjustable output voltage (6V; 7.4V; 8.4V) with 2-6S batteries
• Supports 10A continuous current, 15A short duration current
• Overcurrent, short circuit, overheat protection
• IP67 waterproof and dustproof design
• Aluminum housing for fast heat dissipation and reduction of electromagnetic interference

Specifications:

• Power supply voltage: 4.0-25V (2-6s LiPol)
• Output voltage: 6,0 / 7,4 / 8,4V
• Output current: max. 10A (continuous) / 15A (momentary)
• Dimensions: 45 x 20 x 16mm
• Weight: 34g
