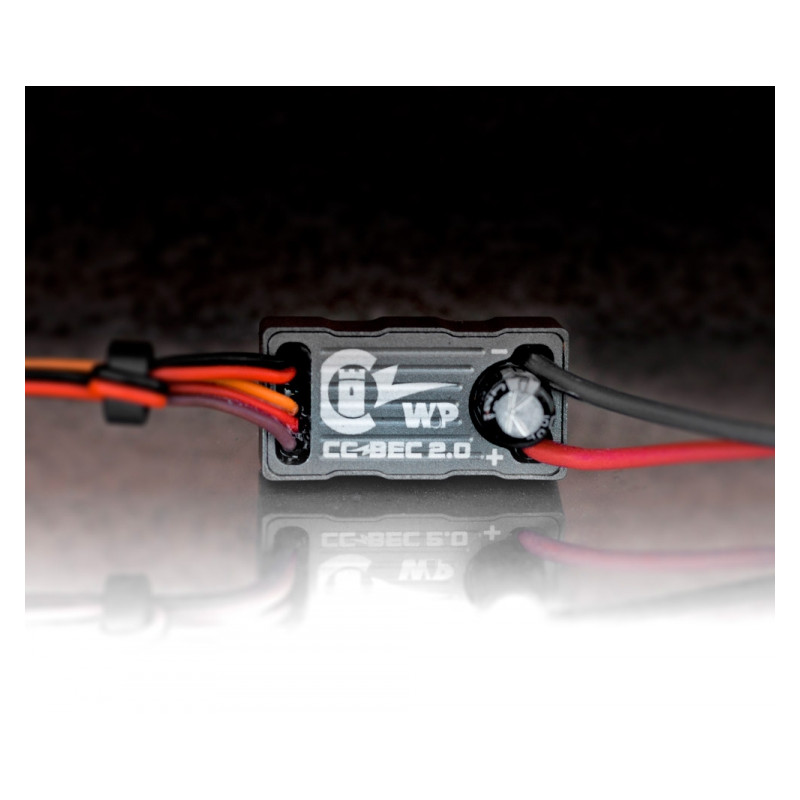

CASTLE VOLTAGE REGULATOR BEC 2.0 / 15A / 14S (10-0153-00)

The new CC BEC 2.0 features heavy-duty dual output cables that will provide "clean" power to sensitive radio equipment. Castle Link2 can be used to set output voltages from 4.75 to 12 V and power today's power-hungry servos, cameras and other on-board accessories. Get it right the first time, invest in CC BEC 2.0 to protect your expensive electronics in the long run.

Note : CC BEC 2.0 should never be used in series or in parallel with another BEC or spare receiver package connected to the RX/Servo side of the circuit.

1. Adjustable output voltage can be set with Castle Link (sold separately).

Waterproof: yes
Peak current: 15A (depending on input and output voltage)

Continuous current*:

• 4.75-6.0V output: 10A
• Output 6.25-8.5 V: 9A
• Output 8.75-10.0 V: 8A
• Output 10.25-12.0 V: 7A

Maximum input voltage:

• 12S (50.4 V)
• Air (with brake): 12 S (50.4 V)
• Air (without brake): 14 S (58.8 V)

  - Adjustable output voltage**: 4.75 to 12 V
  - Default setting: 5,25 V
  - Size: L 35 x W 18 x H 19 mm
  - Weight***: 28g

  *The ratings were determined at an airflow rate of 5 miles per hour at 25°C.
  **Regulated output voltage can be set using Castle Link (sold separately).
  ***Weight with full-length cables, power cords can be shortened to reduce weight, depending on application.

  Assembled in the US from foreign and domestic components.

Technical Note: Do not connect the 3-wire cable (brown/red/orange) to the binding port on Spektrum receivers. This may cause some Spektrum receivers to go into bonding mode. A 2-wire cable (black/red) can be connected to the bonding port.

For more information and specifications, please visit the manufacturer's website (link in the tab above).

*Important ! before connecting and using the regulator, read the instruction manual carefully !
