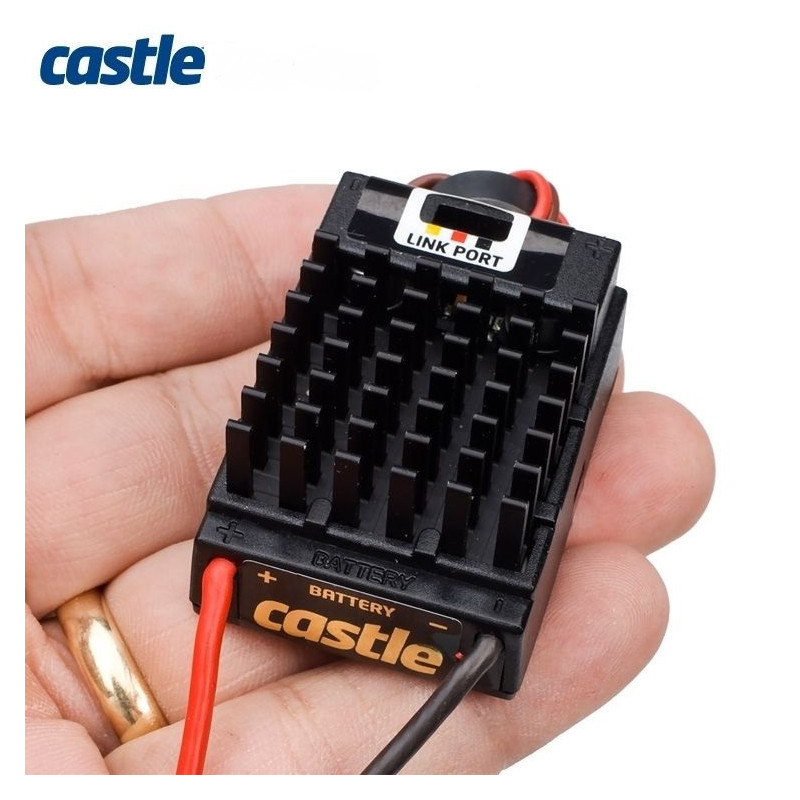

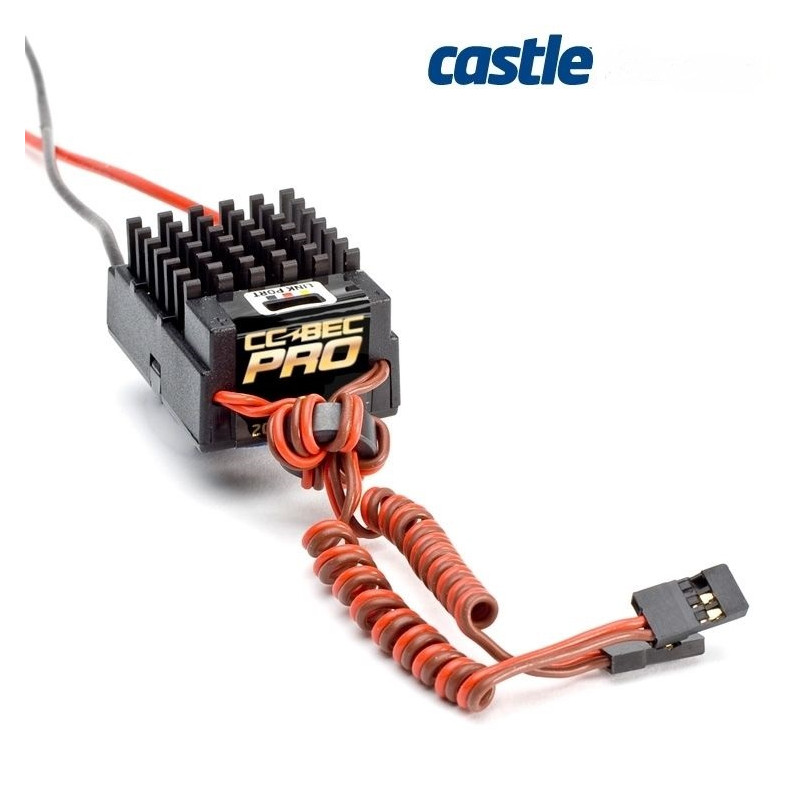

CASTLE VOLTAGE REGULATOR BEC PRO 20A / 50V (010-0004-01)

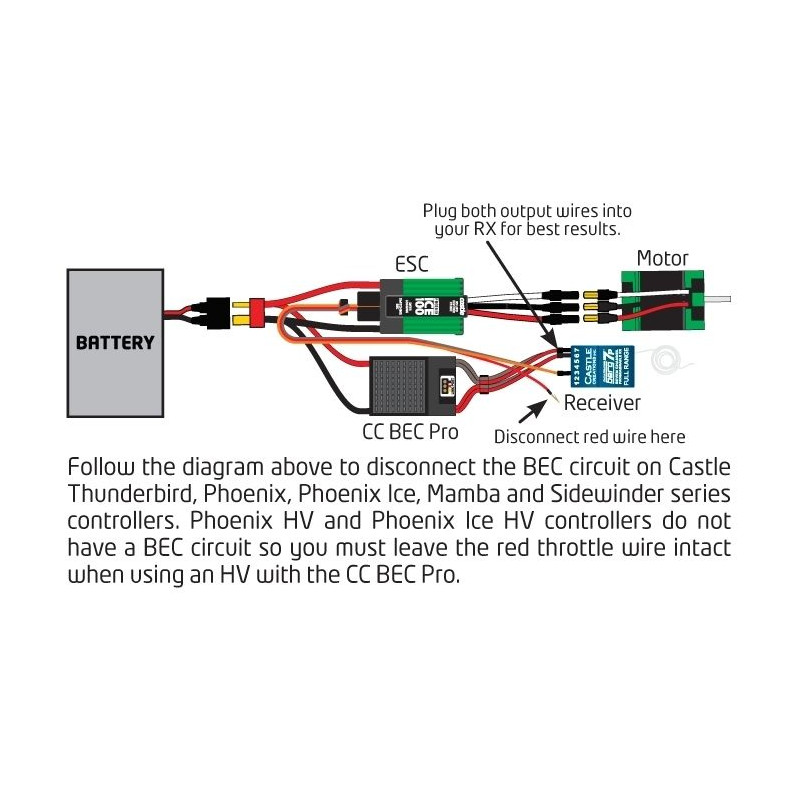

The CC BEC Pro (Battery Eliminator Circuit) is a small device that eliminates the need for receiver batteries. It takes the voltage from the motor batteries and reduces it to a voltage level suitable for the receiver and servos. This is required in high-power servo applications where the ESC has no internal BEC or the existing BEC is insufficient.

The CC BEC Pro is designed to operate at up to 12S LiPo (50.4 V) with a peak servo load of 20 A*. Typically used on 1/5 scale cars or cars using multiple high-power digital servos, lights, winches and other accessories. It is also useful for larger aircraft using 4 or more digital servos. Ideal for helicopters size 500 or larger.

Specifications:

• output current: 20 peak amps*
  Maximum continuous current*
  16 V input = 15 A
  24 V input = 13 A
  32 V input = 11 A
  40 V input = 9 A
  48 V input = 8 A
• input voltage: cars 6S (25V) / planes 10S (42V)
• adjustable output voltage**: 4.9V - 12.5V (factory default 5.1V)
• width: 33 mm
• length: 47 mm
• height: 22 mm
• weight: 40 g
• set does not include connectors

*ratings are set at 5 miles per hour airflow at BEC

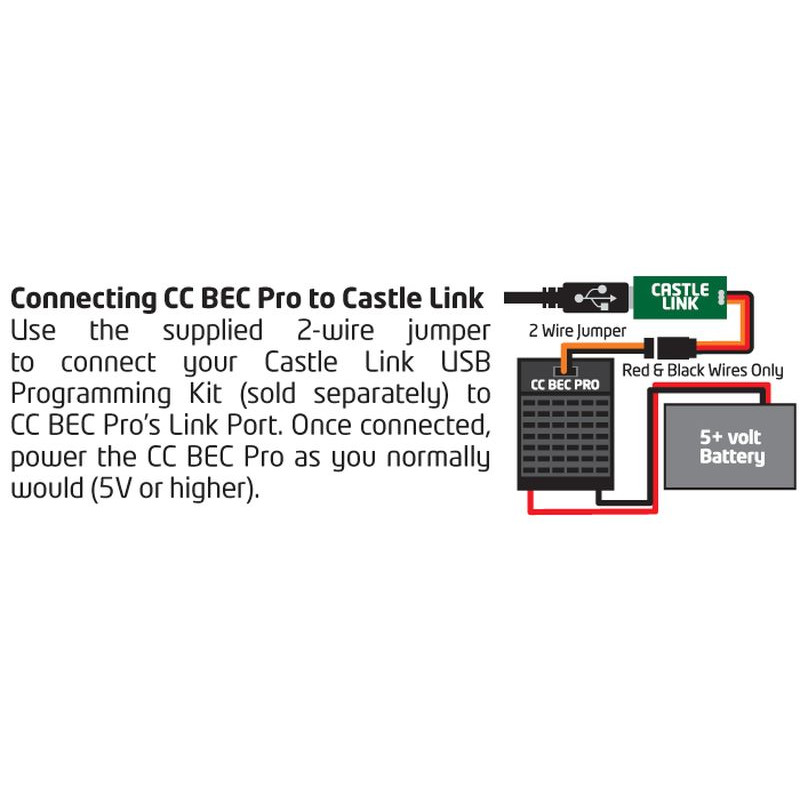

**The voltage must be changed with Castle Link (sold separately)

***Follow the instruction manual included with the product.
