CASTLE VOLTAGE REGULATOR BEC 2.0 / 14A / 14S (010-0154-00)

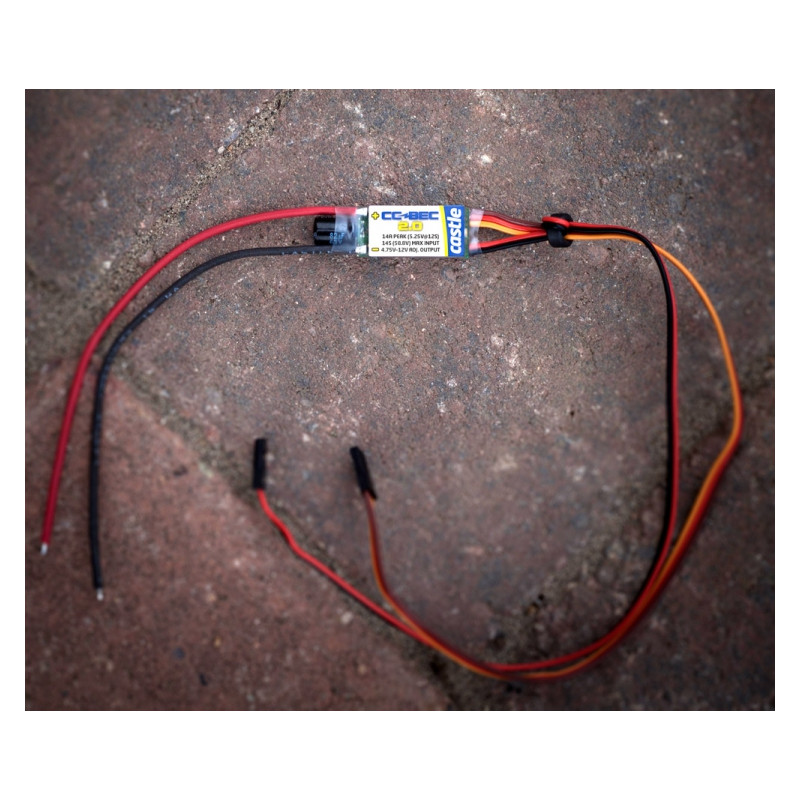

CC BEC 2.0 voltage regulator from the American company Castle.

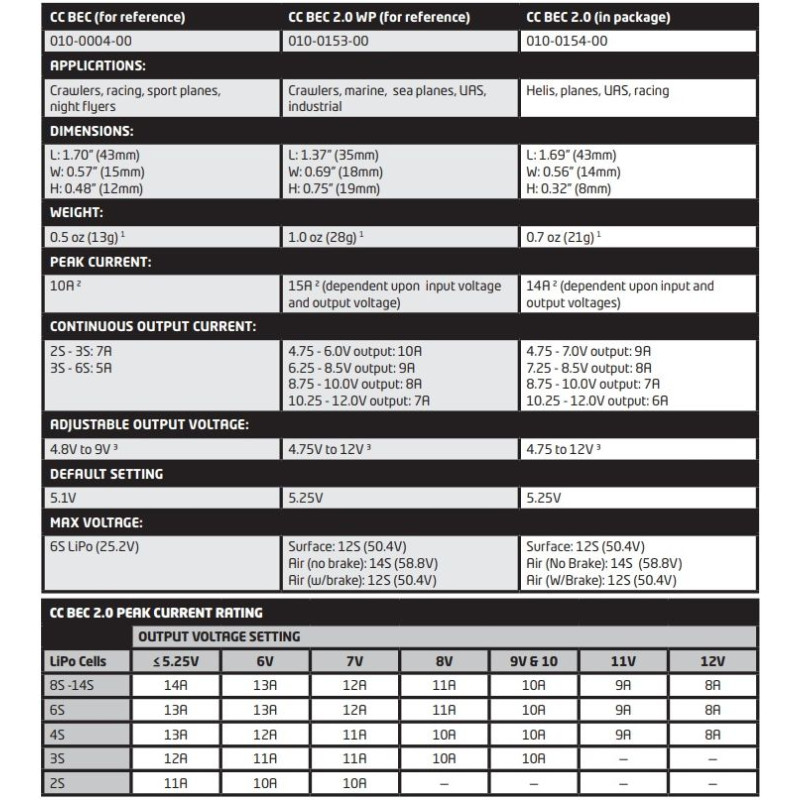

Technical specifications:

• maximum input voltage: 12S (50.4V)
• output voltage (adjustable): 4,75 - 12V
• default setting: 5,25V
• dimensions: 43x14x8mm
• weight: 21g
• output current: 4.75-7V: 9A / 7.25-8.5V: 8A / 8.75-10V: 7A / 10.25-12V: 6A

Attention:

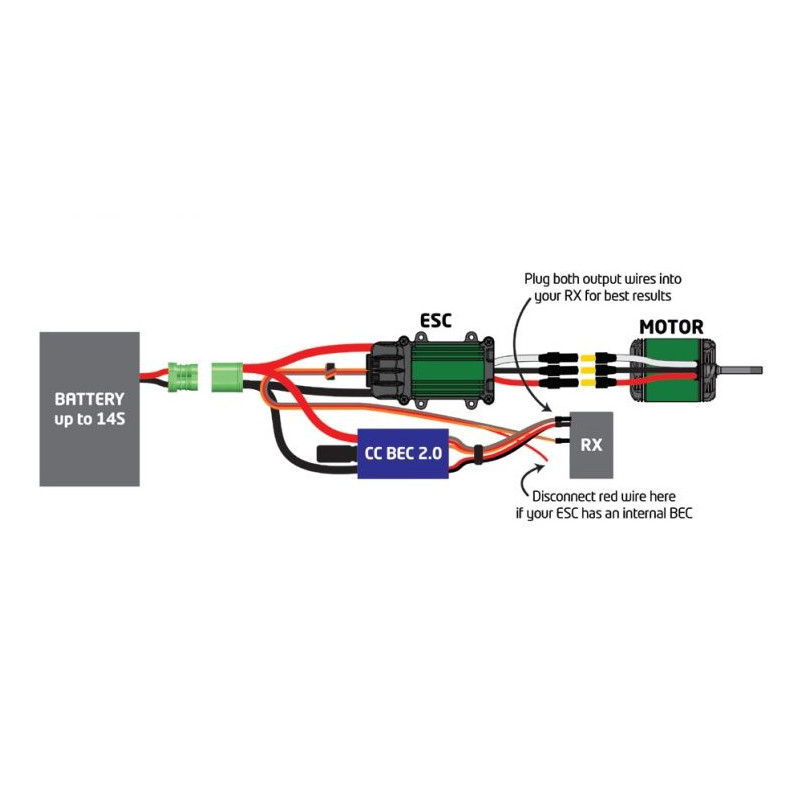

• CC BEC 2.0 should never be used in series or in parallel with another BEC or spare receiver package connected to the RX/server circuit.
• Do not connect a 3-wire cable (brown/red/orange) to the binding port on Spektrum receivers. This may cause some Spektrum receivers to go into binding mode. A 2-wire cable (black/red) can be connected to the bonding port.
• Adjustable output voltage can be set using Castle link (sold separately)

*Follow the instruction manual included with the product.
