JETI REGULATOR STABILIZATOR SBEC 30D EX (J-BEC-30-D) - REGULATOR

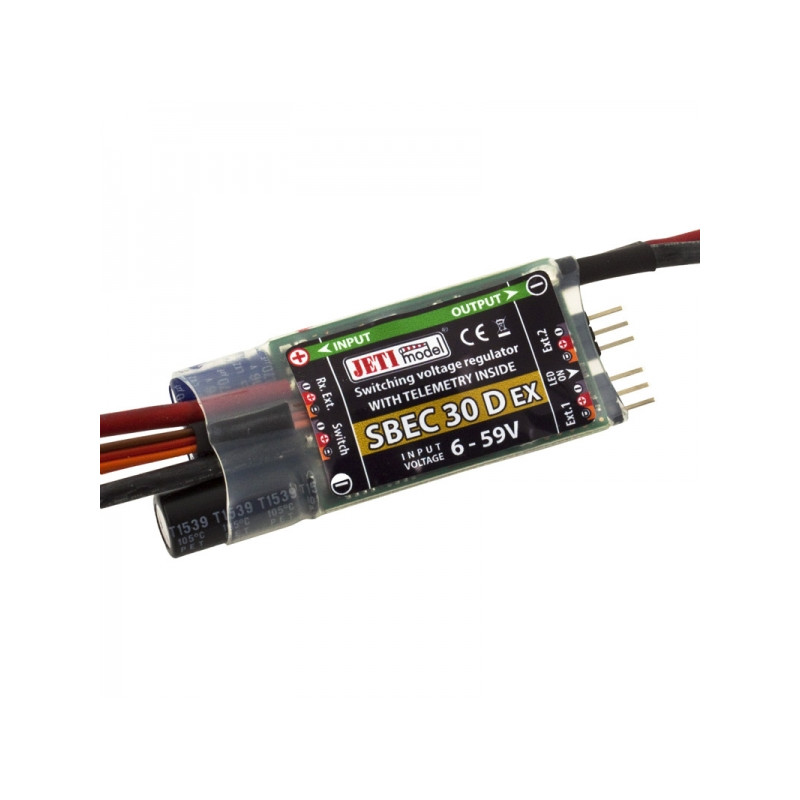

The S-BEC 30D voltage stabilizer from the renowned Czech company Jeti Model is used to provide stable voltage for receivers and servos. With it, we can use a wide range of power packs in the model, built from 2 to a maximum of 15 lithium cells (LiXX 7.4 - 55.5V). The output voltage in the range of 5.0 - 8.4V is programmed using the Jeti transmitter in conjunction with the EX Bus or JetiBOX. With the ability to program an output voltage of 8.4V, the stabilizer is ideal for models using high-current "High Voltage" (HV) type servos. The Jeti Model S-BEC 30D regulator is designed to withstand up to 30A of current, making it mainly applicable to medium and large sized RC aircraft models.

The Jeti Model S-BEC 30D measures input voltage, BEC output, current and battery pack capacity consumption. The measured parameters are sent in real time to a transmitter with the Jeti Duplex system, where they can be observed in real time on the display.

Additional information:

• Telemetry: yes
• Number of battery pack inputs: 1
• Maximum input voltage: 59V

Kit contents:

• S-BEC 30D voltage stabilizer

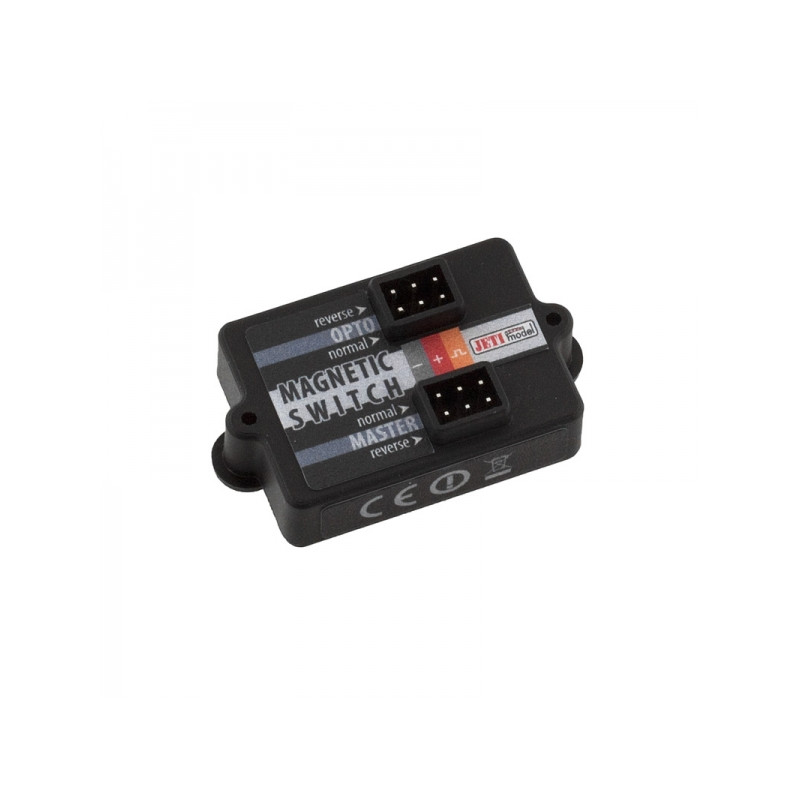

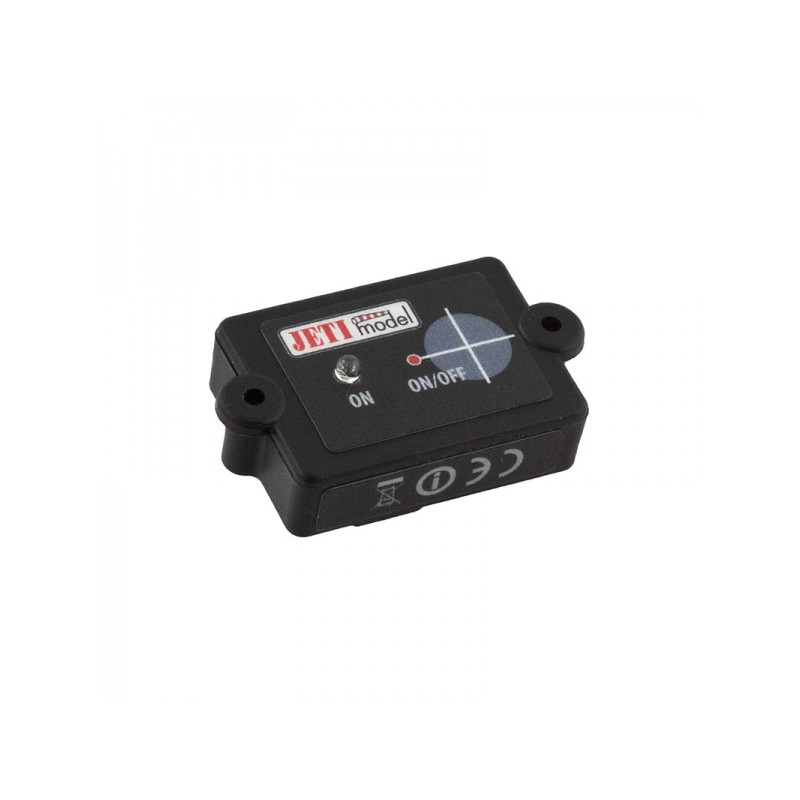

• Magnetic switch
• Magnetic key on key ring
• Servo plug - servo plug cable
• 2 x screw
• 2 x heat shrink sleeve
• MPX type connector (socket)

You can find more technical data, photos and instructions on the manufacturer's website: TU

*Follow the enclosed instructions.
