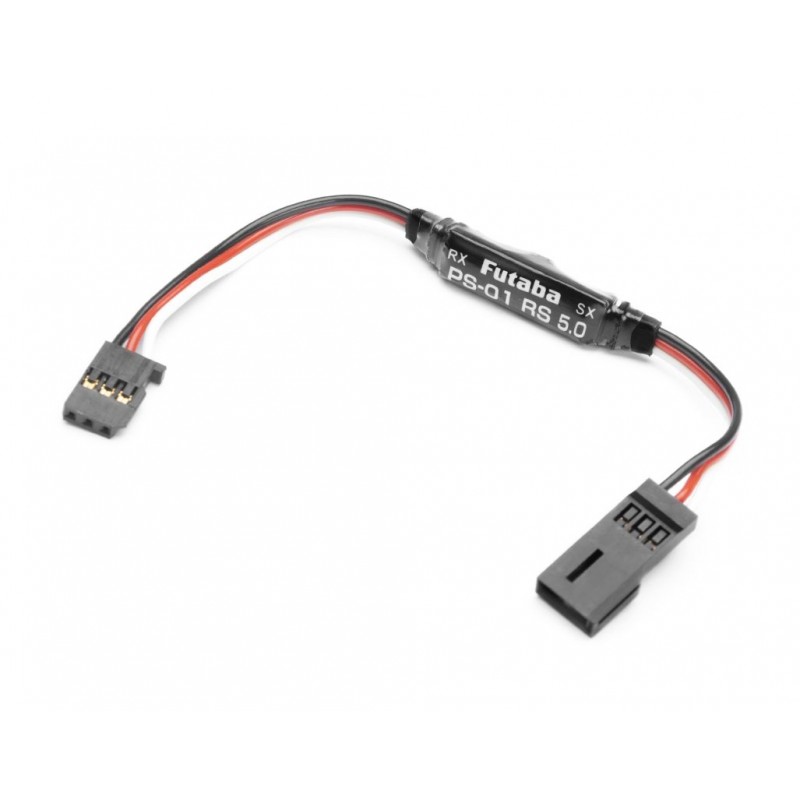

FUTABA VOLTAGE REGULATOR PS-01 / 1A

The PS-01 is a switchable voltage regulator that reduces voltage, allowing the use of a 4.8V servo in on-board electronics with a higher nominal supply voltage of 6.6-7.4V (2S LiFe, 2S LiPo). It connects between the receiver (or gyro) and the servo. The typical application is to connect a tail servo (with a tail rotor) with a 4.8V power supply to a WN-powered gyro (above 6.0V), but you can use the PS-01 to connect any servo (up to approx.) .cm) for a 4.8V supply to a receiver with a nominal supply voltage of 6.6-7.4V (2S LiPo, 2S LiFe).

The input voltage of the PS-01 is 6.0-8.5 V, the output voltage for the servo is 5.0 V. The output current is 1A continuous/5A peak (instantaneous).

PS-01 is designed to connect one servo, do not try to connect more than one.

The controller kit includes: the PS-01 controller with cables.

Specifications:

• Power supply [V]: 6 - 8,5
• Output voltage [V]: 5
• Max current [A]: 1
• Max. peak - instantaneous current [A]: 5
• Length [mm]: 24,2
• Width [mm]: 17,8
• Height [mm]: 8,3
• Weight [g]: 5.2

*Follow the enclosed instructions.
