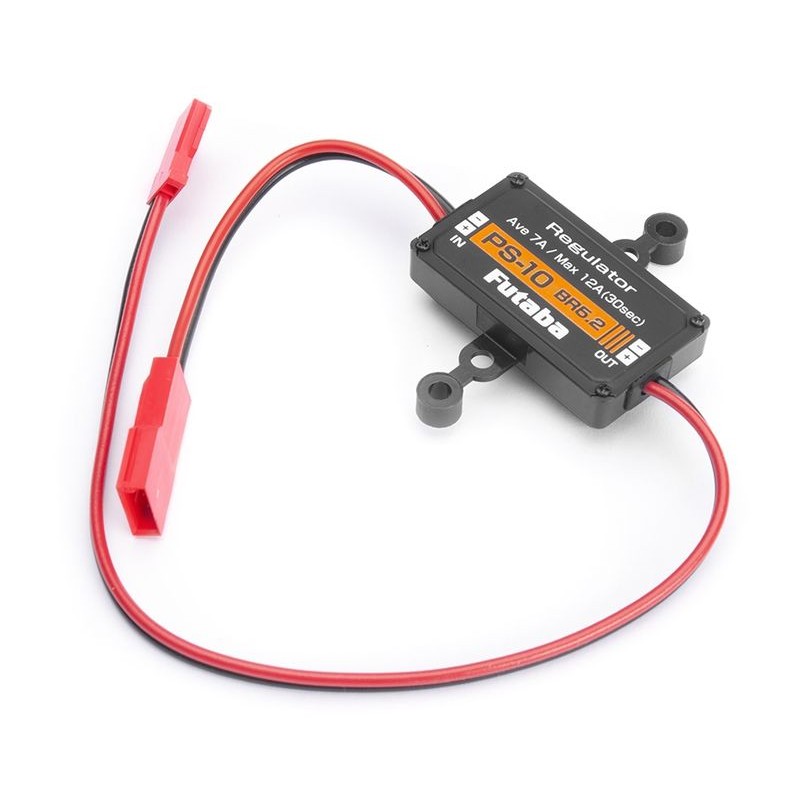

FUTABA VOLTAGE REGULATOR PS-10 / 10a

The PS-10 is a switchable step-down voltage regulator / stabilizer for powering the receiver and servos for a nominal voltage of 4.8-6.0 V from batteries with a higher nominal supply voltage of 6.6-11.1 V (2-3S LiFe, 2- 3S LiPo). The driver's output voltage is 5.2 V, and the current-carrying capacity is 4.0 A (temporarily 12 A), which enables powering up to 5 standard servos. When using strong / fast servos with more wear, the allowable number of servos will be less.

The PS-10 has an aluminum housing that serves as a heat sink; for the model, it is mounted on mounting feet with silent blocks. During installation, make sure that there is free air flow around the controller.

Technical data:

• Power supply (rated voltage) [V] : 6.6 - 11.1
• Output voltage [V] : 5.2
• Current [A] : 4
• Max peak current (30s) [A] : 12
• Length [mm] : 35.6
• Width [mm] : 20.5
• Height [mm] : 10
• Weight [g] : 14.9
