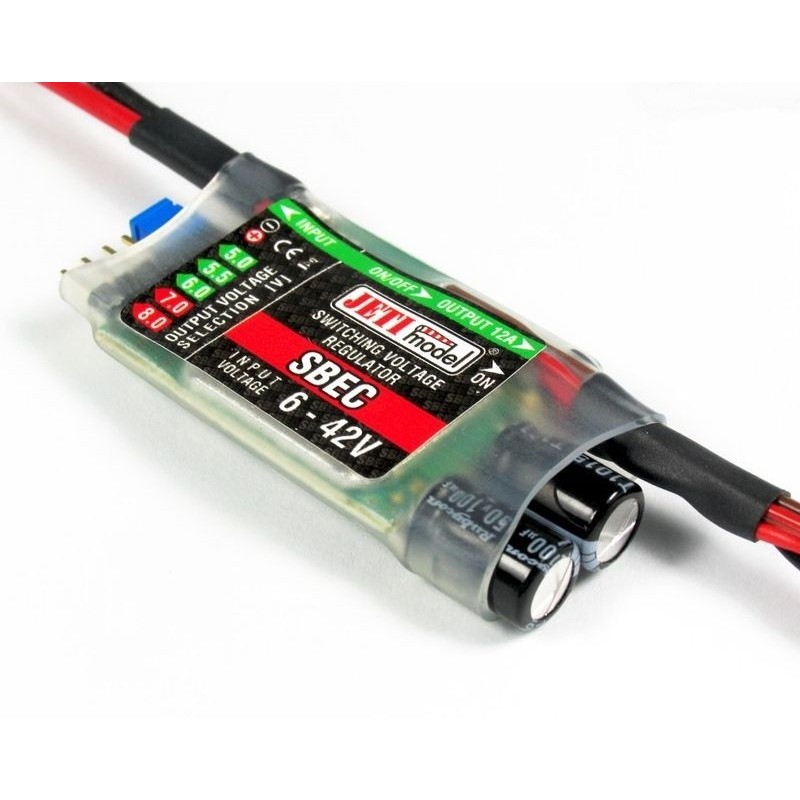

JETI VOLTAGE REGULATION SBEC (J-SBEC)

Jeti SBEC is a very useful modeling tool, providing constant and uninterrupted voltage to the receiver and servos from 5 to 8 V, max 12 A, thanks to which you obtain stable, smooth and uninterrupted operation of mechanisms throughout the flight. The selection of the output voltage is made with a jumper.

Jeti SBEC has a switch and two current outputs terminated with JR plugs.

Technical data:

• Input voltage: 6 - 42 V
• Maximum accepted input voltage: 50V
• Number of supported cells: 2-10 Li-XX, 6-33 Ni-XX
• Jumper adjustable output voltage: 5.0 - 5.5 - 6.0 - 7.0 - 8.0 V
• Maximum amperage: up to 12 A.
• Continuous amp for a given Li-XX pack: 6.2A / 2S, 5.7A / 3S, 5.4A / 4S, 5.1A / 5S, 4.7A / 6S, 4.5A / 7S, 4.1 / 8S , 3.8A / 9S, 3.5A / 10S,
• Weight: 29 g
• Dimensions: 60 x 28 x 10 mm
• Operating temperature range: -20 degrees C to +85 degrees C
