Voltage indicators
  • Out-of-Stock
WSKAŹNIK NAPIĘCIA 5 cell NI-MH / NI-CD (JR065/5)

WSKAŹNIK NAPIĘCIA 5 cell NI-MH / NI-CD (JR065/5)

12-2641
Pozostałe
Out of stock

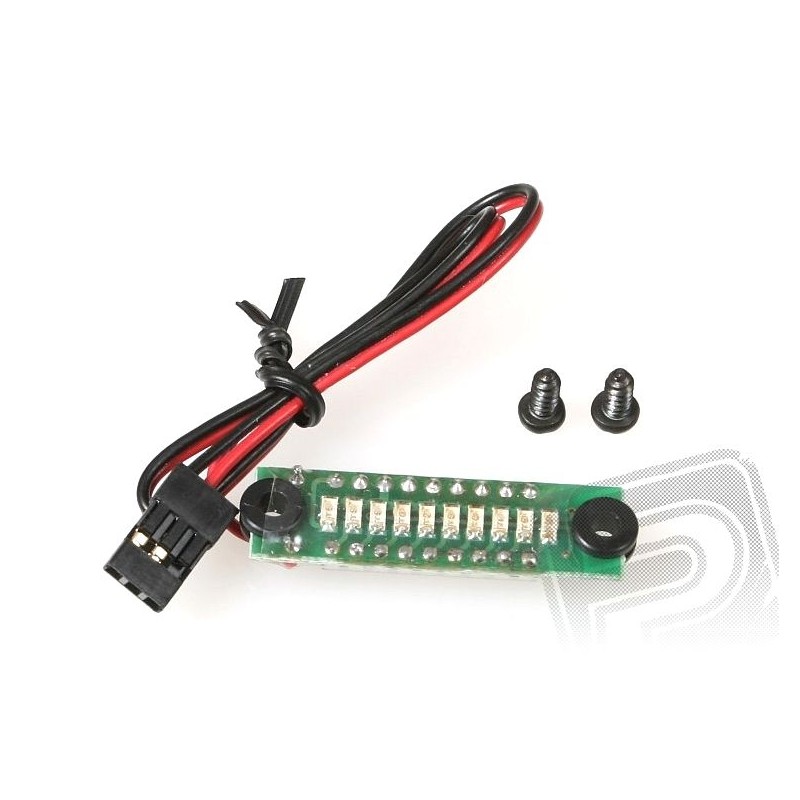

LED voltage indicator for 5-cell Ni-XX rechargeable battery packs. The indicator is plugged into any receiver channel and measures the voltage of the battery supplying it. It has two mounting holes, equipped with shock-absorbing rubber sleeves and a standard Hitec / JR connector. The column of 10 LEDs with an extended scale allows you to recognize the different states of battery charge: charged (voltage 6.4V - green), partially charged (5.7-6.0V - yellow and green) and dangerously discharged (below 5.5 V - red color). Due to the excellent operation of the integrated circuit, the measurement of the measured voltage is very accurate.
Technical data:
  • voltage: 0 - 7.5V
  • length: 39 mm
  • width: 12 mm
  • height: 7 mm
  • weight: 4.5 g
Indicative voltage values and corresponding colors:
  • 1 red 5.3V
  • 2 red 5.4V
  • 3 red 5.5 V
  • 4 yellow 5.7 V
  • 5 green 5.8V
  • 6 green 5.9V
  • 7 green 6.0 V
  • 8 green 6.1 V
  • 9 green 6.2V
  • 10 green 6.4V
Note: The stated voltage levels are indicative only.
