RG174 - RF CONCENTRICABLE CABLE 0.81 (1 running meter) impedance 50 Ohm (17557)

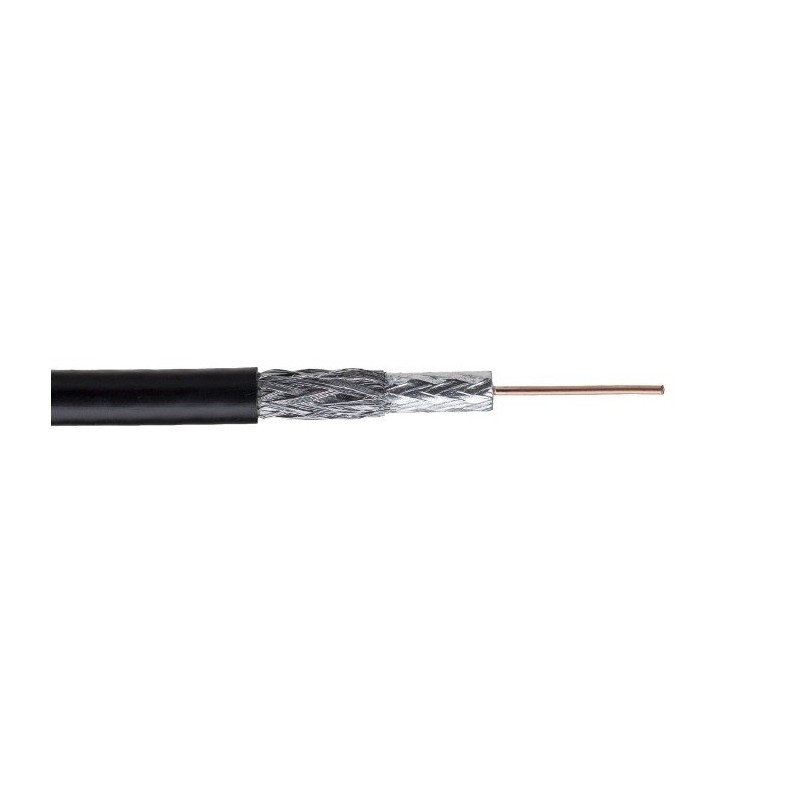

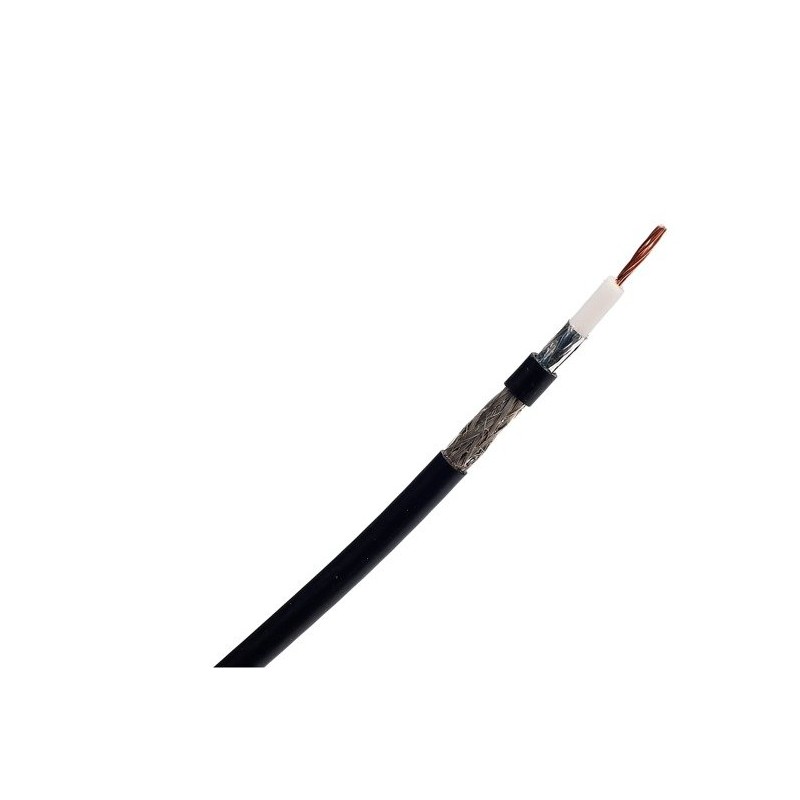

Coaxial antenna cable RG174 / RF 0.81 also used in modeling as an antenna cable.

Technical data:

• outer diameter: 0.81 mm
• material: silver-plated copper
• insulation: FEP
• braid: silver-coated copper
• outer sheath: FEP
• wave impedance: 50 Ω ±3
• working temperature: -20 ~ 60°C
• attenuation:

1GHz - ≤ 1.5 DB/m
2GHz - ≤ 2.2 DB/m
3GGHz - ≤ 2.8 DB/m
4GHz - ≤ 3.4 DB/m
5GHz - ≤ 3.8 DB/m
6GHz - ≤ 4.3 DB/m

Price per 1 running meter.
