WIRELESS MODULE nRF24L01 + amplifier and antenna (7669)

€4.52
12-7480
Pozostałe
In stock

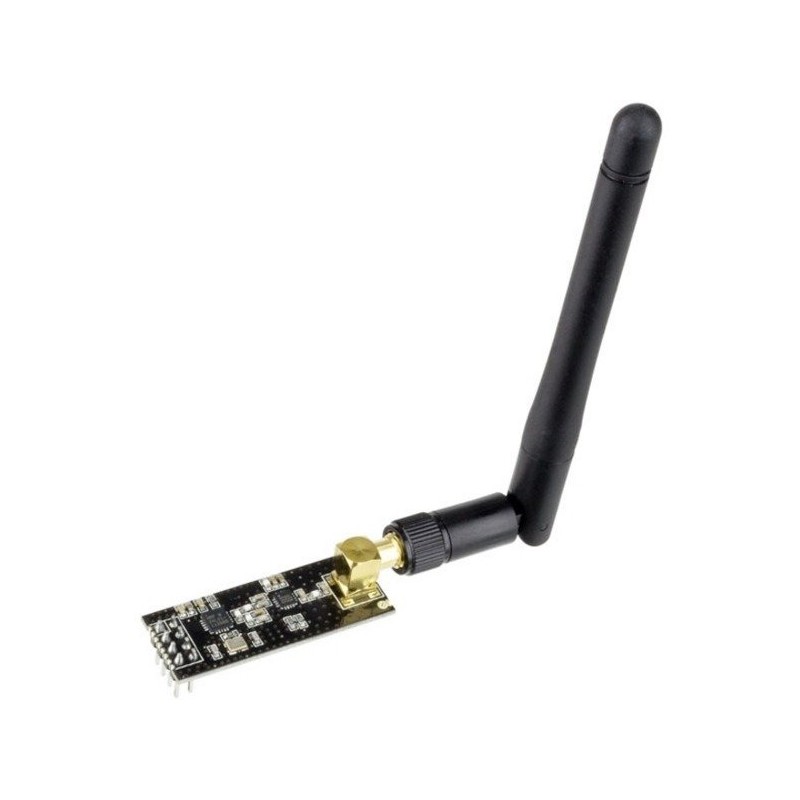

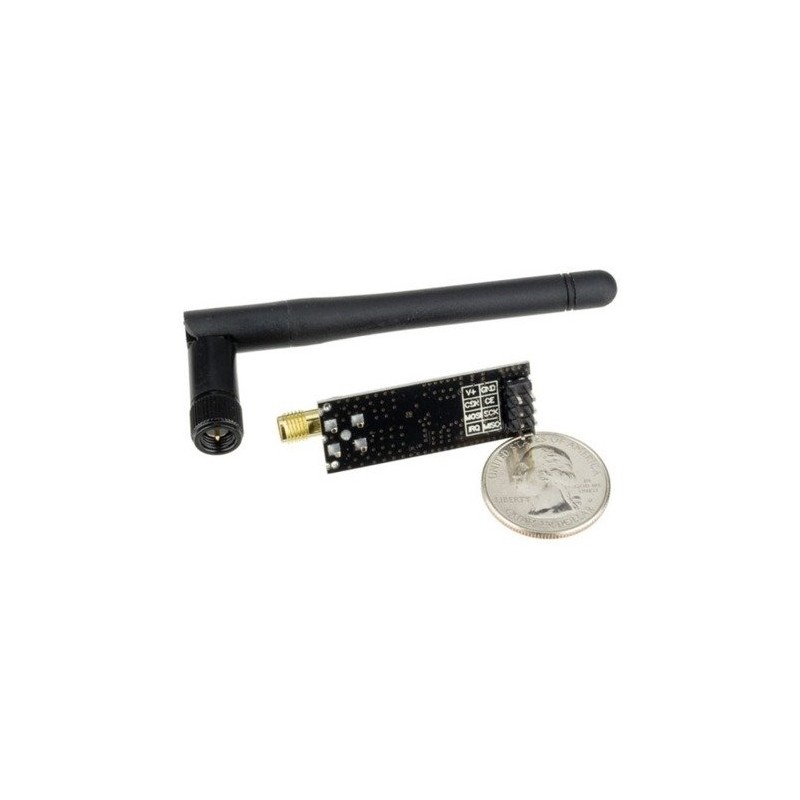

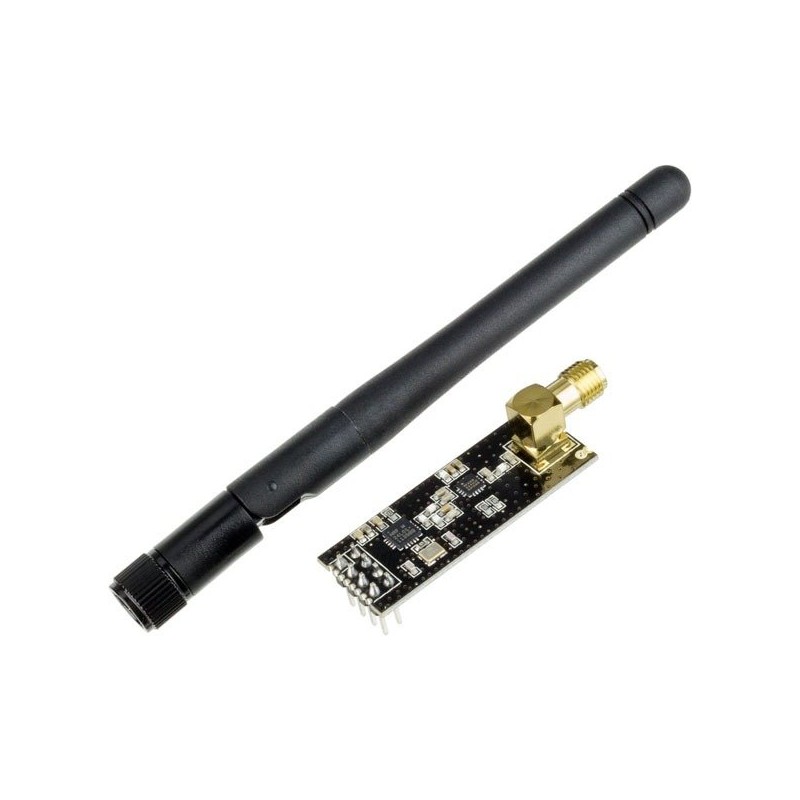

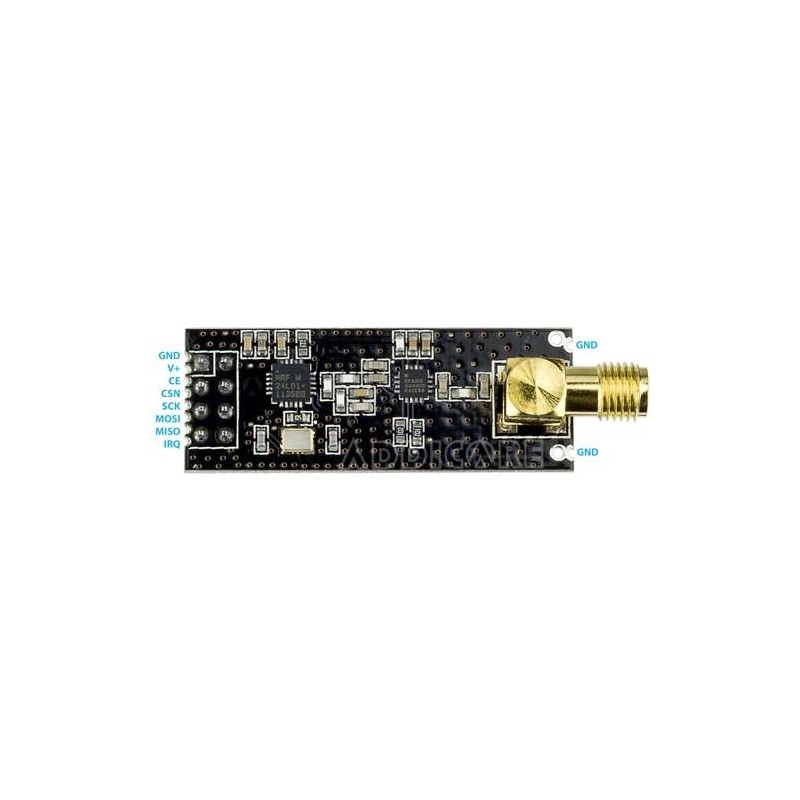

Module based on NRF24L01 chip having two-way communication on 2.4GHz band. PCB equipped with all necessary components and antenna connector with antenna.
The module communicates with microcontrollers via SPI interface. the inputs accept the TTL 0-5V standard. This makes the module very useful in projects where it is necessary to transmit information over long distances, such as projects using Arduino, PIC or ARM microcontrollers.
Thanks to the use of 2.4GHz frequency, this module will be compatible with many other modules with this data transmission frequency.

Specifications:

  • 2.4GHz ISM band
  • Power 22dBm
  • Transmission speed up to 2Mbps
  • Current consumption 115mA (transmit)
  • 45mA (receiving)
  • 4.2µA (power down mode)
  • Range up to 1100m (in open area)
  • Power supply 3.0 - 3.6V
  • SPI interface
  • GFSK modulation
  • Dimensions 40x16x14mm
  • Number of channels 125
  • Automatic packet transmission
