TRAXXAS FORD F-150 RAPTOR AUDIO 1/10 RTR (58064-2)

Before buying a model, read the warranty and operation rules.
The file is available for download in the "Attachments" tab.

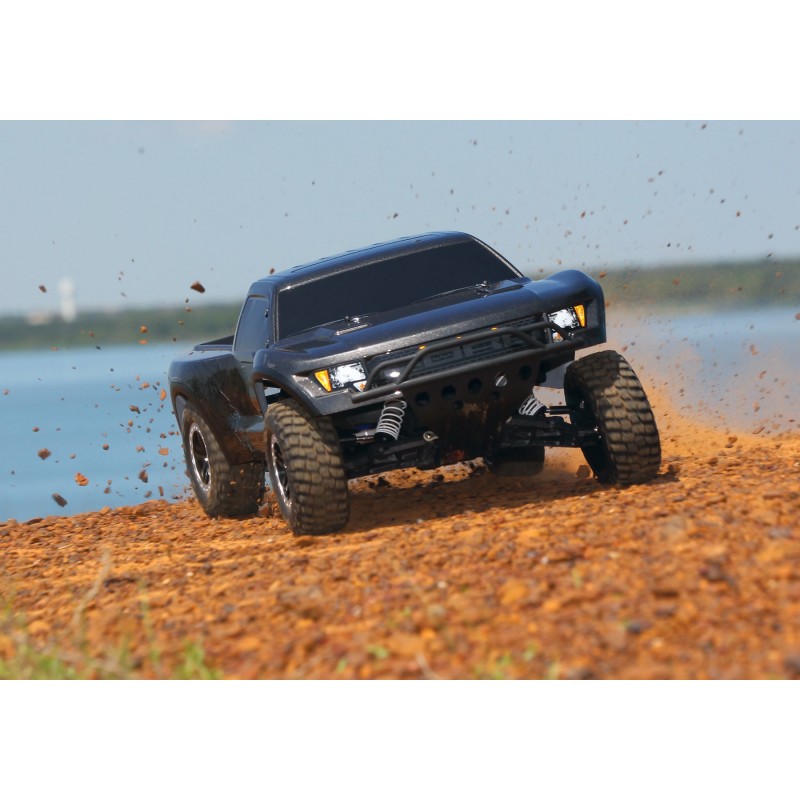

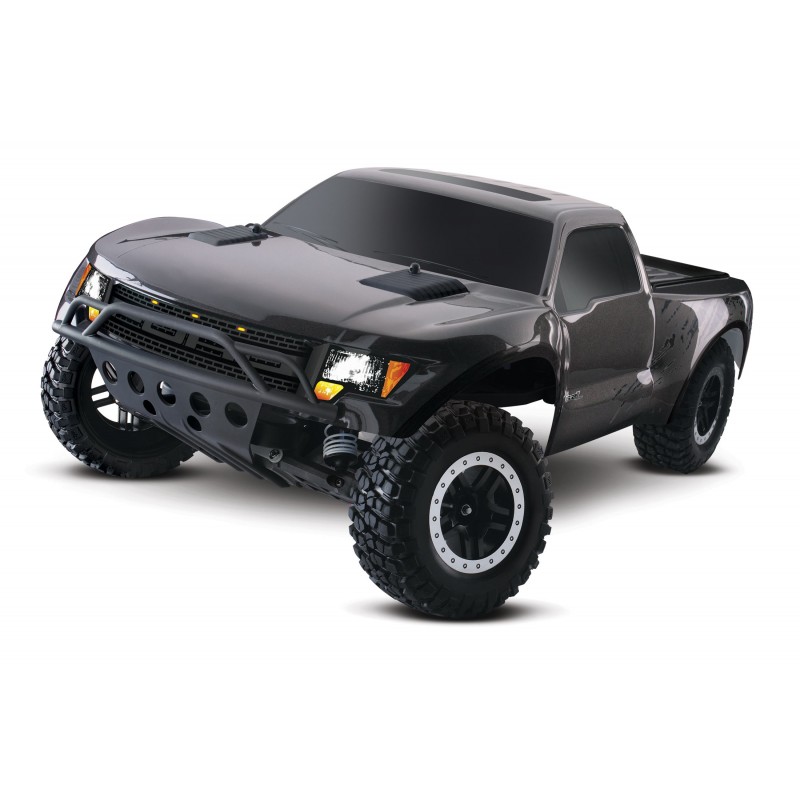

The aggressive style of the Ford F-150 SVT Raptor

with audio system on board

Ready to ride with TQ 2.4GHz apparatus and the iD series NiMh 8.4V drive package.

The model is a replica of the F-150 SVT Raptor off-road car with 411 horses and 35 inch wheels, specially designed by a team of Ford specialists.
The Ford F-150 SVT Raptor model offers waterproof electronics that allow it to be used in all weather conditions. Robust - independent suspension with long travel, powerful Titan 550 engine providing a speed of 48 km / h, ball bearings, steel gears and high-strength materials ensure the highest performance in the field.

Even greater realism in the performance of Traxxas.

The "Traxxas Audio On-Board" sound system was installed on board the Raptor . It is a sound system that reflects the realism of the 900HP engine.

Precise control with a frequency of 2.4 GHz.

The TQ ™ 2.4GHz radio system does not require the use of quartz responsible for the control channel. The ergonomic design of the transmitter is comfortable for everyone, and the reinforced internal antenna is resistant to damage.
The 3-channel transmitter has a rocker switch that controls the on-board audio system, simulating the operation of the engine when the model is stationary. After 10 seconds without moving the throttle, the engine shuts down. When the throttle is touched, the engine sound starts.

NiMh 4A fast charger.

Fast, convenient and hassle-free charging of the package is provided by a fast DC12V DC charger with a charging current of 4A . The charger has been designed to shorten the charging time and extend the life of the model.
NiMH charger 4A uses a constant voltage of 12 V available in universal sockets and has been optimized for charging Traxxas iD packages . The peak detection system ensures that the maximum package capacity is obtained after the end of the charging process. The LED flashes green during the charging process, and after it is finished it shines continuously.

NiMh packages with the iD system.

Traxxas NiMh iD packages are optimized for use with the NiMh 4A charger, ensuring maximum use of available capacity. Traxxas took care of the highest quality of components and low internal resistance of individual cells of the package provided with high -current electrical connectors.

Like the full-size Ford SVT Raptor , the Traxxas replica is well equipped for all the challenges of ff-road driving . Long suspension travel and oil-filled shock absorbers easily absorb drops and uneven terrain. The unique design of the housing provides a huge clearance between the chassis and the terrain, which allows you to overcome deep ruts, rocks and other obstacles. The original tread of BFGoodrich Mud Terrain tires provides unbelievable grip both in the field and on concrete and asphalt. The patented Revo-spec-Torque Control ™ slipper clutch provides smooth operation, precise adjustment and full traction control. The steering system, built on ball bearings, virtually eliminates unevenness in the steering and allows for precise steering control. The steering system's digital servos provide instant response to the driver's intentions.

Watertight electronics.

Ford SVT Raptor is equipped with a waterproof electronic system that allows you to play in all weather conditions. The closed 2.4GHz receiver housing, the waterproof XL-5 speed controller and the closed servos of the control system make it possible to have fun in almost any field conditions. The battery compartment facilitates the installation of the included NiMH battery , and the well-thought-out design of the chamber makes it possible to use flat, vertically arranged packages as well as Traxxas LiPo packages .

The revised Titan 12T 550 drive motor delivers massive power, is virtually maintenance-free and has a long service life. Titan 12T 550 has an integrated cooling fan which in practice means higher speeds and longer runtime.

The drive is controlled by the XL-5 electronic speed controller. It has the useful function of three thermal protection modes and is equipped with high-current electrical connectors. In addition, the XL-5 regulator includes the " Training Mode. ™" function, which allows you to reduce the power of the power unit by 50%. It is useful for novice drivers and for all those who want to practice precise driving technique. The XL-5 regulator is of course waterproof according to the principle "mud and snow are no longer an obstacle to playing in the open air".

Today's drive batteries deliver so high currents that conventional electrical connections are not enough and create so-called "bottlenecks", which in practice make it impossible to use the full power of the drive. Traxxas's new “High-Current” electrical connectors open the door to unrestricted current flow and draw full power from the drive packages.

Ford F-150 SVT Raptor (model # 58064) is fully assembled and ready to drive with 2.4GHz radio system, X L-5 electronic speed governor, iD series NiMh 8.4V power system, 4A pack charger, body painting, glued tires and detailed instructions.

• TQ 2.4GHz remote control apparatus
• Audio On-Board System
• NiMh 8.4V / 3000mAh iD series drive package
• Officially licensed graphics of the FORD F-150 SVT RAPTOR
• Realistic tire tread pattern
• Modified Titan ^® 12T 550 drive motor with cooling fan
• Waterproof XL-5 speed controller with low voltage detection
• New Traxxas Electrical Connectors - "High-Current"
• Watertight steering servo
• 3.5 inch ground clearance between the chassis and the ground
• " Magnum 272 ™" main drive gear with metal gears and bearings
• Revo-Spec Torque-Control ™ final drive system
• Telescopic drive transmission on the shaft
• ProGraphix technology body
• Optional 23T drive sprocket
• 2.2 inch wheels
• Speed 48 km / h
