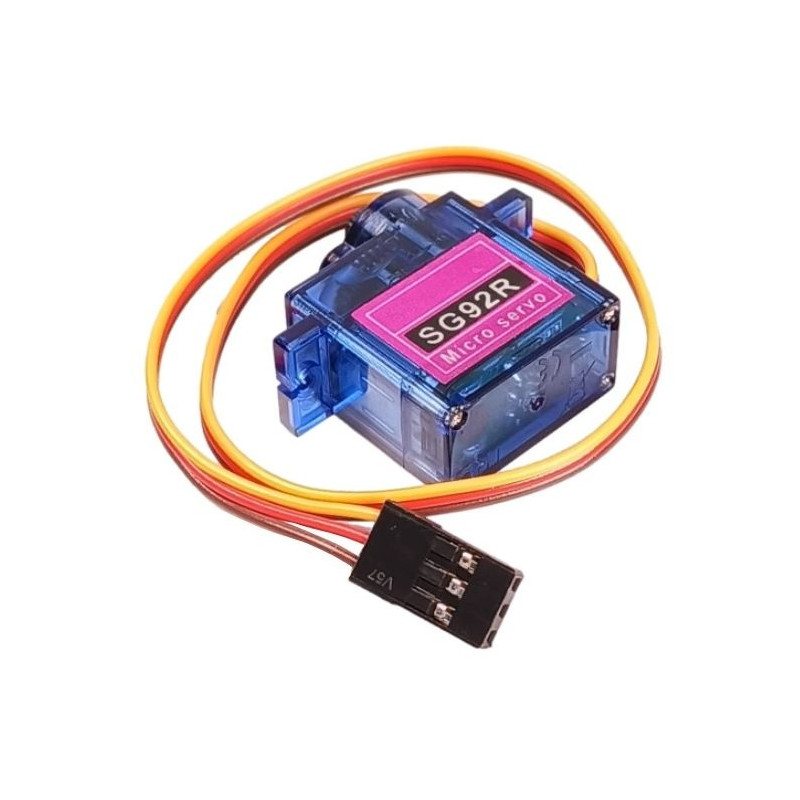

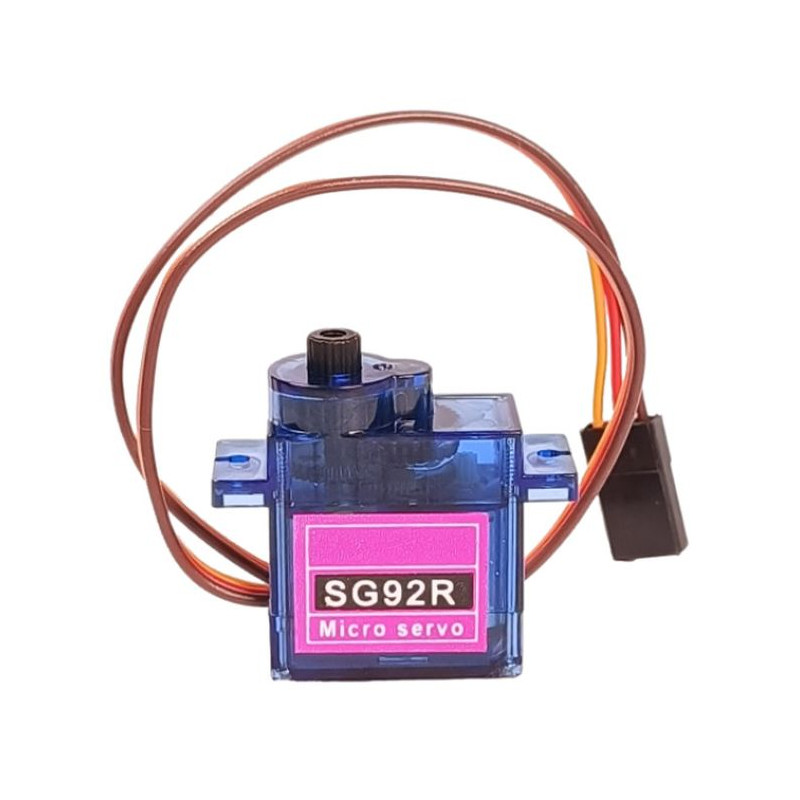

SERWO SG-92 / 9g / 2,5 kg/cm ( 5 pieces )

The SG92R Micro servo features a very strong drive and carbon fiber gears and carbon fiber rocker arms.

Thanks to the carbon fiber cogs, the servo can reach 2.5 kg (0.24 Nm) of torque, unlike its predecessors SG90, SG90 Airplane and SG91R Micro servo, and is lighter than servos with metal cogs.

Product Features

• The SG-92R servo is very lightweight, fast, powerful and reliable.
• It is perfect for both beginner modelers for the simplest small models, as well as for intermediate glider pilots or small aerobatics.
• Carbon fiber parts are more durable than nylon parts.
• The high-speed and high-powered servo is great for small and medium-sized electric aircraft models and small 3D aerobatics.
• The servo arms and bolts and match the Futaba servo arm.

Micro servo specifications

• Weight: 9g
• Weight with wires: 12g

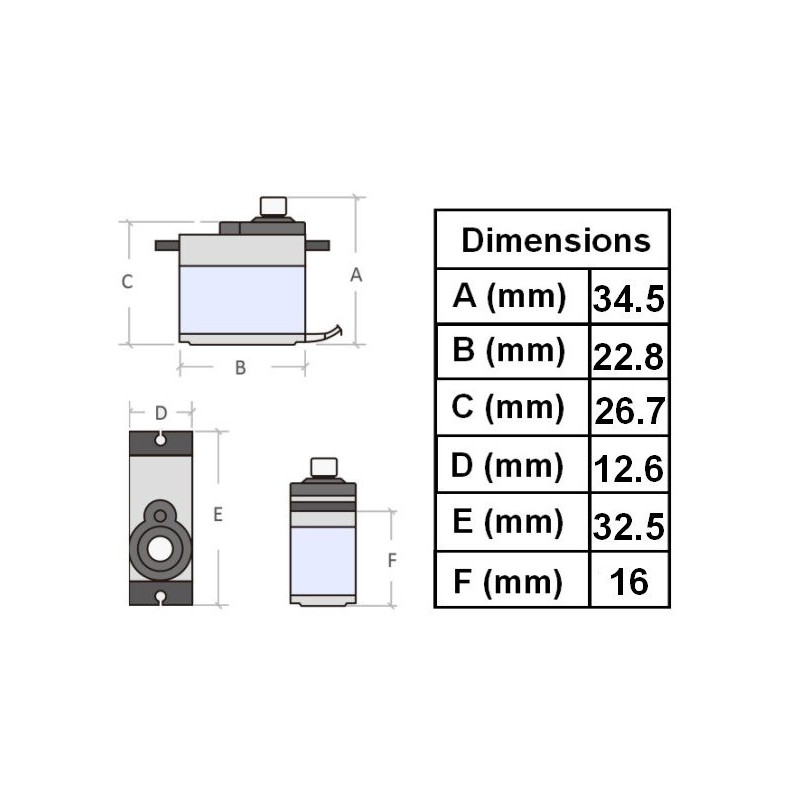

• Dimensions: 23 x 12.2 x 27mm
• Torque: 2.5kg (4.8v)
• Speed: 0.1 sec/60° (4.8v)
• Operating voltage: 4.8V
• Gears: Carbon (carbon fiber)
• Operating temperature: 0 - 55ºC

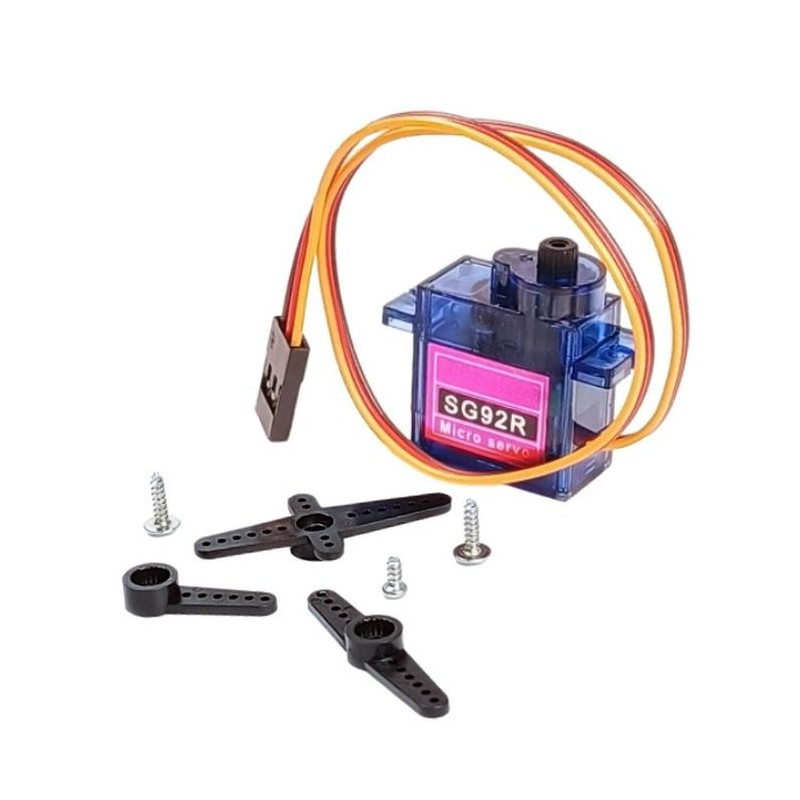

Included

• Servo
• 3 orbits
• Screw for orbiter
• 2 mounting screws
