MG AEROGRAPH TG-130 / AB-130 + COMPRESSOR TC100AK ( AUTO-STOP function )

TC-100A compressor with TG-130 AB-130 airbrush by Magma.

One of the most popular modeling kits on the market.

Application:

• graphics on cars, motorcycles
• modeling
• body prints
• graphics on t-shirts
• graphics on ceramics, glass

The product is not certified for use in painting food products (such as using paints to paint cakes.)

The TC-100A model is the successor to the TC-100 model. The difference is that in the "A" model if you use the airbrush to spray, the compressor will run, and when you stop spraying, the compressor will stop.

In the previous model TC-100, regardless of whether you spray or not, the compressor always releases air.

Note: The Auto stop function works when the compressor knob is turned to minimum, otherwise it will not work, this action is a factory feature of the device.

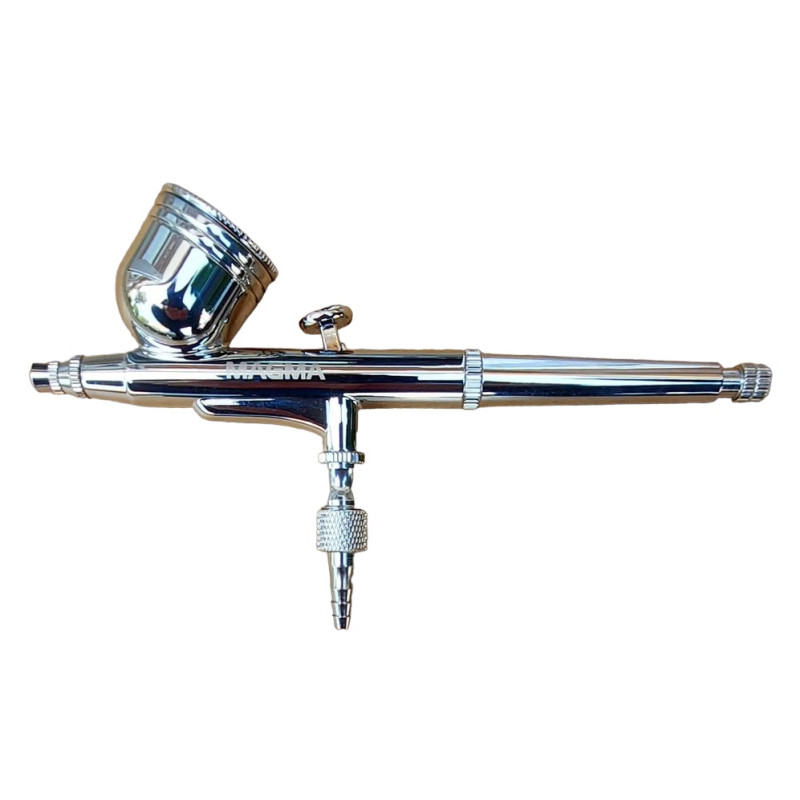

TG-130 airbrush with 7 cm3 tank made of steel with anti-corrosion coating, has a 0.3 mm nozzle.

It is a double action (gravity feed) airbrush, which means that with a button you adjust both the amount of air fed (down and up movements) and the amount of paint (back and forward movements).

Technical specifications of the airbrush:

• type of paint supply: gravitational
• double action control
• working pressure 15-30 PSI
• capacity of paint container 7cm3
• the airbrush has an input for 1/8" thread, which is about 9.42mm
• the compressor has a 1/8" output.

The compressor is quiet - you can work in an apartment.

Compressor specifications:

• power supply 12v
• continuous working time max. 60 minutes
• working pressure max. 25 PSI
• size 110x100x60mm

The set includes:

• 12v compressor with power supply
• tG-130 airbrush
• packaging with instructions.

The trigger of the airbrush during operation is pulled back with a finger, while the forward return movement is performed by a built-in spring. Do not push the trigger forward by force as this may damage the nozzle and/or firing pin - this type of damage is not subject to warranty repair.

Do not use nitro solvents or acetone (they cause damage to the airbrush).

*Follow the included instructions.
