Tether accessories
  • Out-of-Stock

CONTROL LINETtimer to control AC controller

13-1723
Pozostałe
Out of stock

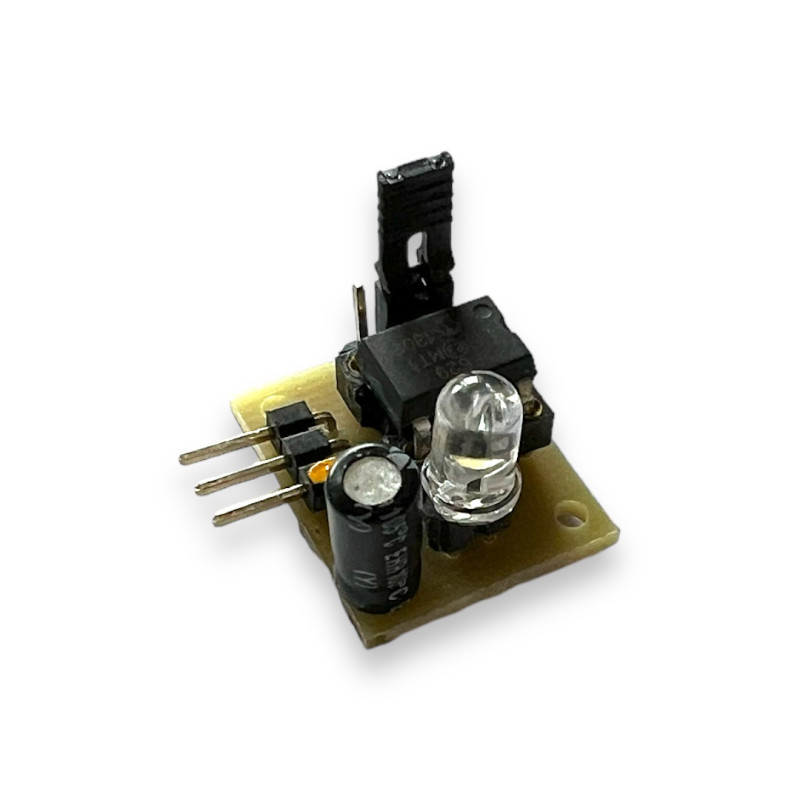

Electronic timer for Control Line models - for tethered models with electric drive.

  • Electronic timer for AC controller control
  • Easy adjustment of flight time and delay from battery connection to actuator start-up
  • Suitable for Flash CL (control line)

Main features

Flight length setting:
  • connect a jumper to the pins closer to the controller connector
  • connect the actuator battery
  • from the moment you turn the propeller, wait the time you want to use as the flight time (if I want to fly 2 minutes, I wait 2 minutes)
  • remove the jumper from the pins to save the settings
  • disconnect the propulsion battery
  • flight time is set. Now you can disconnect the jumper from the accessory, connect the battery without the jumper and hooray!

Setting the length of the launch delay:
  • connect the jumper to the pins further from the controller connector
  • connect the drive battery
  • after turning the propeller, use a screwdriver to connect 2 pins closer to the controller connector for 20 seconds of delay, and then to the controller for 40 seconds of delay
  • remove the jumper from the pins to save the settings
  • disconnect the drive battery

*Follow the instruction manual included with the product.
