FUTABA LIGHT SWITCH + LEDs (CPS-1)

CPS-1 is a smart RC switch for LED lights, which allows you to turn on and off very bright LEDs or even several LEDs (of the same type) connected in parallel at a total current consumption of 200 mA. It is ideal for controlling position lights on flying models and ships, landing lights, headlights and, above all, all kinds of lights on model cars and other ground vehicles.

Basic application with RC kits (not only Futaba)

The CPS-1 connects to the channel of the RC kit to which the two-position switch on the transmitter is assigned for turning the LED light on/off. The CPS-1 is powered from the receiver, and can be used at a voltage equivalent to 4-5 channels. NiMH rechargeable battery (4.8-6.0 volts).

Use with Futaba RC kits with CPS mix

You can take full advantage of the CPS-1 with Futaba RC kits equipped with CPS mix, which allows you to select an off/on or flashing light mode with adjustable frequency, and easily assign a switch for manual on/off or the state of controlled model functions at which the lights turn on:

• manual on with the assigned switch
• switching on with neutral control
• switching on the steering from the neutral position
• switching on at neutral throttle
• on while driving forward
• oN when reversing
• switch on while braking
• turn on at neutral throttle while braking

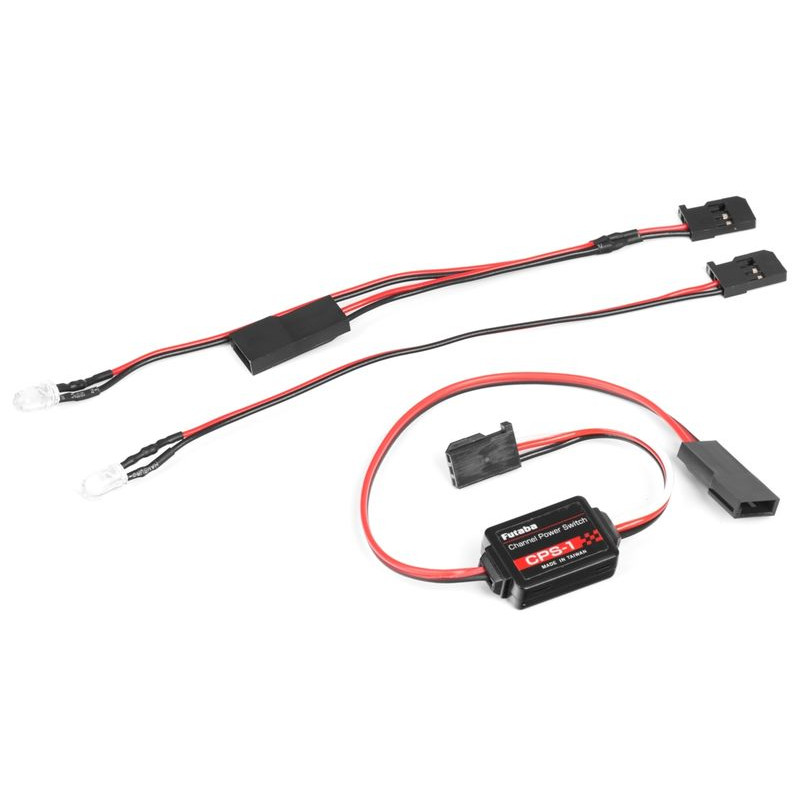

The switch kit includes: switch CPS-1 with cables, 2 high brightness white LEDs, instructions.
