LED KIT WITH CONTROLLER - lighting for model (0103)

Set of eight 5mm high-brightness LEDs for RC model aircraft, helicopters and multicopters, also for boats; total 0.6W. In basic settings, it simulates the operation of the position, anti-collision and landing lights of real airplanes and helicopters - thus giving the RC model a more realistic look. The kit can also be used for small model ships, where you can use the left red and right green position lights and the permanently lit white lights on the mast.

Includes 8 LED lights: red collision warning light, 3 white flashing lights, red and green position light, 2 white landing lights.

It offers 9 operating modes that can be switched remotely with a switch on the transmitter - in addition to the default "mock-up flight" mode, you can equip your plane, helicopter or multicopter with a colorful and cheerful glow of lights.

The light kit is powered by a 4-6 volt source, and can be connected to a channel on the receiver to which you assign a button or momentary switch with programmed positions of -100% and +100% on the transmitter.

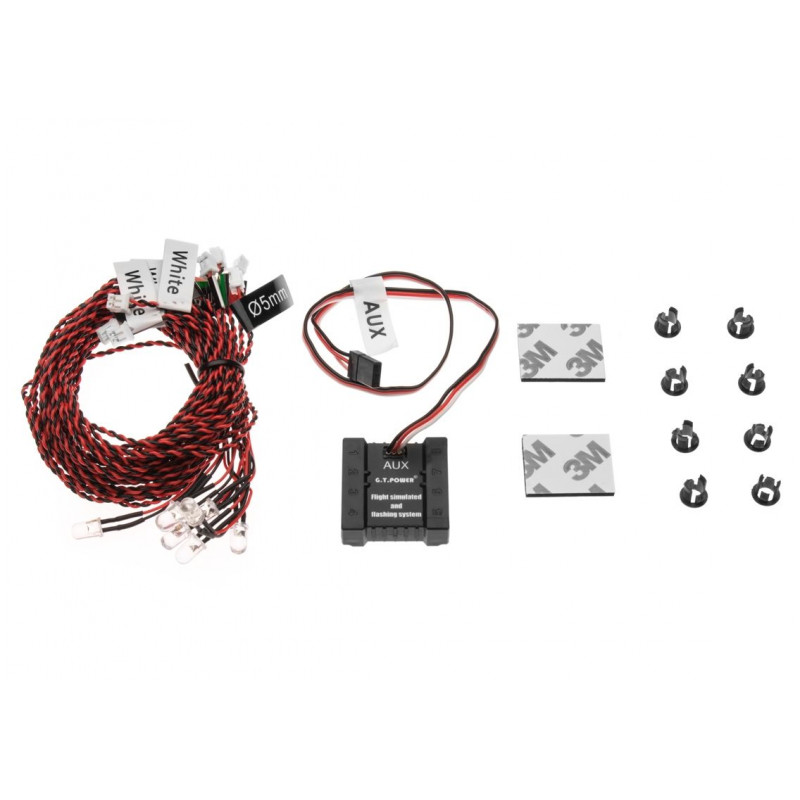

Included: control panel, 8 LEDs with cables, power/control cable, instructions

Operation modes:

Z: Flash
PB: slow flashing
SB: medium fast flashing
RB: fast flashing
T: steady light
DB: double flash
2xDB: 2x double flash
3xDB: 3x double flash
5xDB: 5x double flash

Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 Mode 8 Mode 9
Slot 1: White flash (wing end) / Z / SB / DB / 2xDB / T / RB / SB / T / Off
Slot 2: White landing light / PB / PB / PB / PB / PB / RB / SB / T / Off
Slot 3: Flash (top of SOP) / SB / SB / SB / SB / SB / RB / SB / T / Off.
Slot 4: Flash (wing end) / Z / SB / DB / 5xZ / T / RB / SB / T / Off
Socket 5: Red position light (left wing end) / T / SB / DB / 3xSB / T / RB / SB / T / Off
Slot 6: White landing light / PB / PB / PB / PB / PB / RB / SB / T / Off
Slot 7: Flash (wing tip) / Z / SB / T / T / RB / SB / T / Off
Slot 8: green position light (right wing end) / T / SB / DB / 3xSB / T / RB / SB / / T / Off

Specifications:

• Power supply: 4.8-6.0 V
• Current consumption; approx. 100 mA/5.0 V
• LED cable length: 800 mm
• Power cable length: 300 mm
• Dimensions: 30x30x10 mm
• Weight: 36g (including 8 lights)

*Follow the instructions included with the product
