LED KIT WITH CONTROLLER - lighting for model (0102)

5mm LED lighting kit for smaller RC aircraft and helicopter models, also for use on boats: total approx. 0.18W.

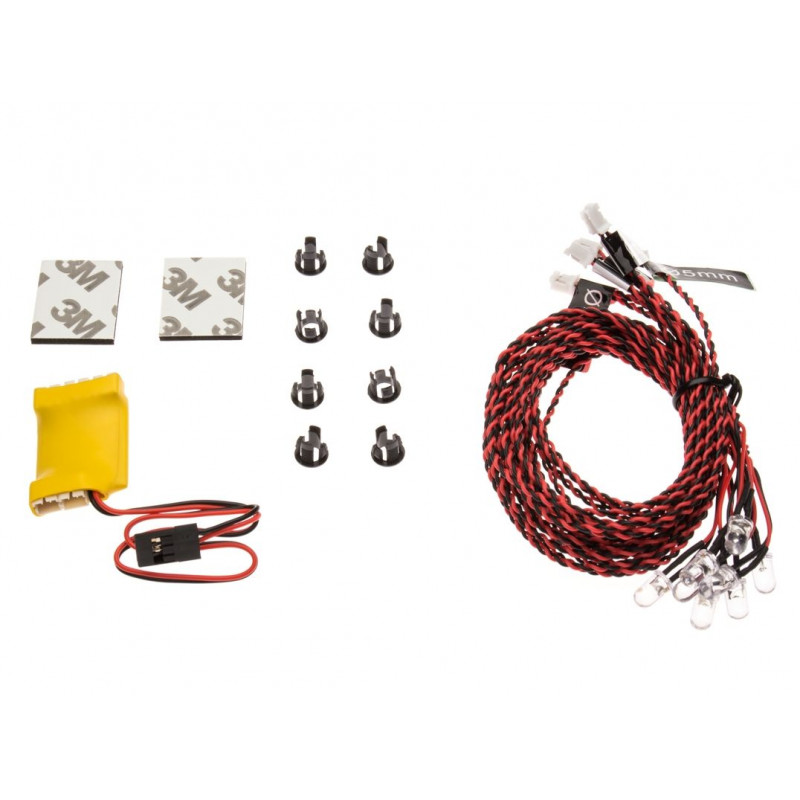

The LED lighting kit consists of a control unit and eight 5mm high-brightness LEDs on a 600mm cable: 2x solid white (landing lights), 1x solid green (right position light), 1x solid red (left position light), 2x slow flashing red (red warning light for SOP/beak), 2x flashing white (anti-collision beacon). The kit can also be used for small model ships, where you can use the left red and right green position light and the permanently lit white lights on the mast.

The light set is powered by a 4-6 volt source, and can be connected, for example, to the free channel of a servo receiver. Thanks to their low current consumption (about 30 mA at 5 V), the lights do not place a heavy load on the on-board electronics. When power is connected to the control panel, the lights will light up - their function cannot be remotely controlled.

Included: control panel, 8 LEDs with wires, instructions.

Specifications:

• Power supply: 4.0-6.0V
• Current consumption: approx. 30 mA/5.0 V
• LED cable length: 600 mm
• Dimensions: 35 x 23 x 8 mm
• Weight: 24g (including 8 LEDs)

*Follow the included instruction manual.
