LED KIT WITH CONTROLLER - lighting for model (0101)

Light set with 5mm LED with very high brightness for RC aircraft models, helicopters and multicopters, also suitable for boats - total power 3W. In basic settings, it simulates the operation of the position, anti-collision and landing lights of real airplanes and helicopters - thus giving the RC model a more realistic look. It includes 8 extremely bright LED lights: an anti-collision red flash light, 3 white flash lights, a red and green position light, 2 white landing lights.

The kit offers 9 modes of operation, which can be switched remotely via a switch on the transmitter - in addition to the default "mock-up flight" mode, you can equip your plane, helicopter or multicopter with a colorful and cheerful glow of lights. The control panel detects and signals low power voltage - if the voltage of the power battery is lower than 6.8 volts, all lights flash.

The set of lights is powered by a 2S LiPo battery (7.4 V) or a 6.4 V UBEC power stabilizer (the power cable with JST-XH connector allows direct connection to the service connector of the 2S set). The control panel's signal cable is connected to a channel on the receiver, to which you assign a button or momentary switch with programmed positions of -100% and +100% on the transmitter.

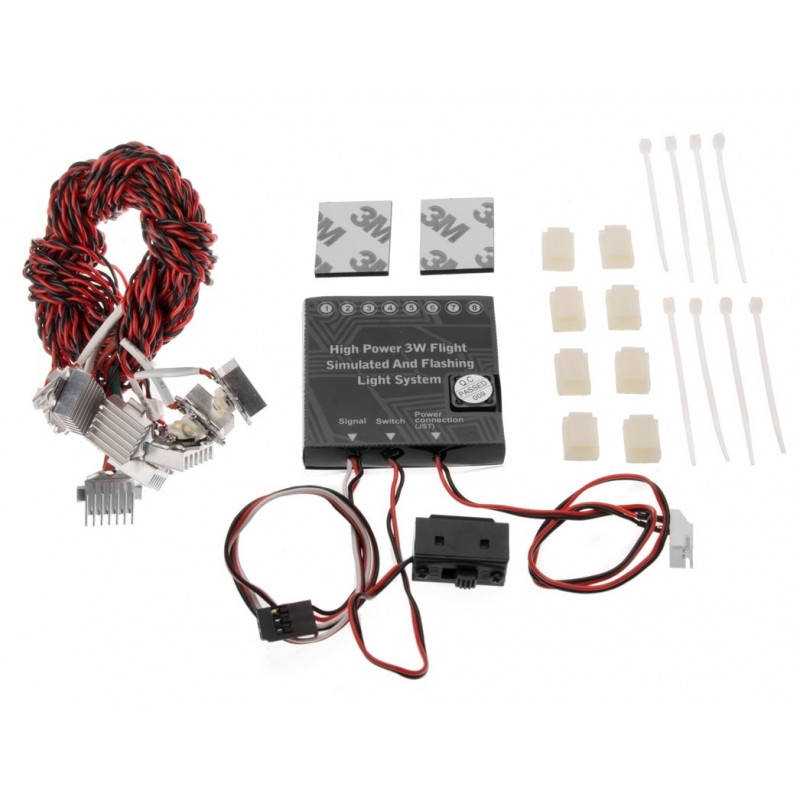

Included: control panel, 8 LED lights with heat sinks and cables, 8 self-adhesive holders for LEDs with retractable strips, instructions

Operating modes

After connecting all the cables and turning on the switch of the control panel, you can switch the different modes of operation with the switch designed for this on the transmitter:

Mode 1: Standard civil aircraft mode; left red and right green position lights continuously, white strobe warning lights flash at top speed, red flashing warning lights flash at top speed, landing lights slowly turn on and off.
Mode 2: left red and right green position lights flash together with white strobe lights, red flashing warning lights flash at the highest speed, landing lights slowly turn on and off.
Mode 3: the left red and right green position lights flash alternately twice, the middle strobe light shines continuously, the left and right strobe lights flash alternately twice, the red flashing light flashes at the highest speed, the landing lights turn on and off slowly cyclically.
Mode 4: left red and right green position lights flash alternately three times, the center flash light is on, the left and right flash lights flash three times alternately, the red flash light flashes at the highest speed, the landing lights turn on and off slowly periodically.
Mode 5: Left red and right green position light on continuously, white warning lights on continuously, red flashing light flashes at the highest speed, landing lights on and off slowly.
Mode 6: Emergency landing mode - all lights flash rapidly.
Mode 7: All lights flash slowly.
Mode 8: All lights are on continuously.
Mode 9: All lights are off.

Specifications:

• Power supply: 2S LiPo
• Current consumption: approx. 1200 mA/7.4 V
• LED cable length: 800 mm
• Power cable length: 300 mm
• Switch cable length: 150 mm
• Signal cable length: 300 mm
• Dimensions: 55x52x12 mm
• Weight: 95g (including 8 lights)
