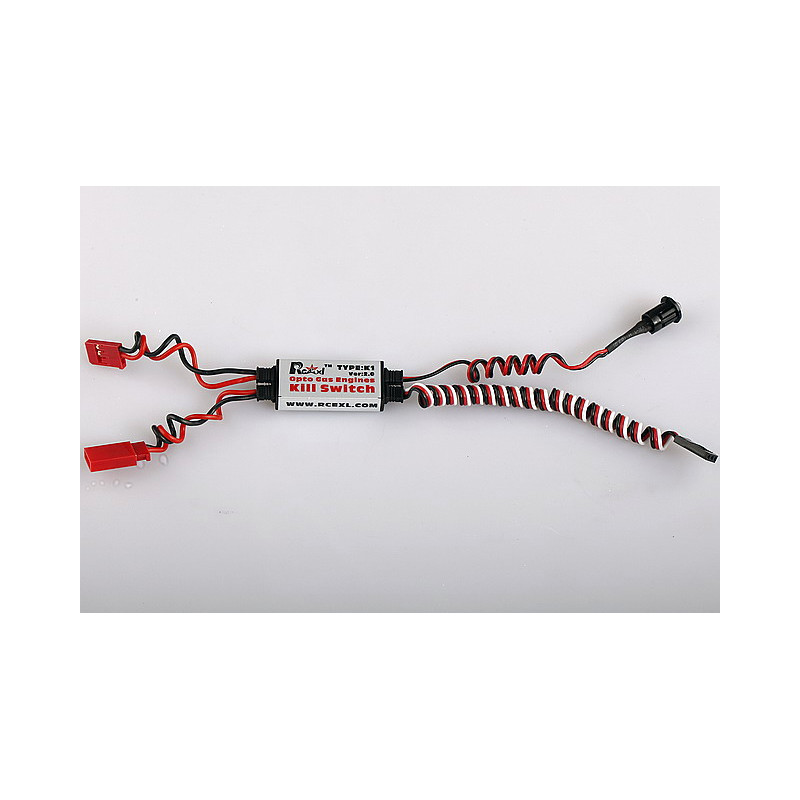

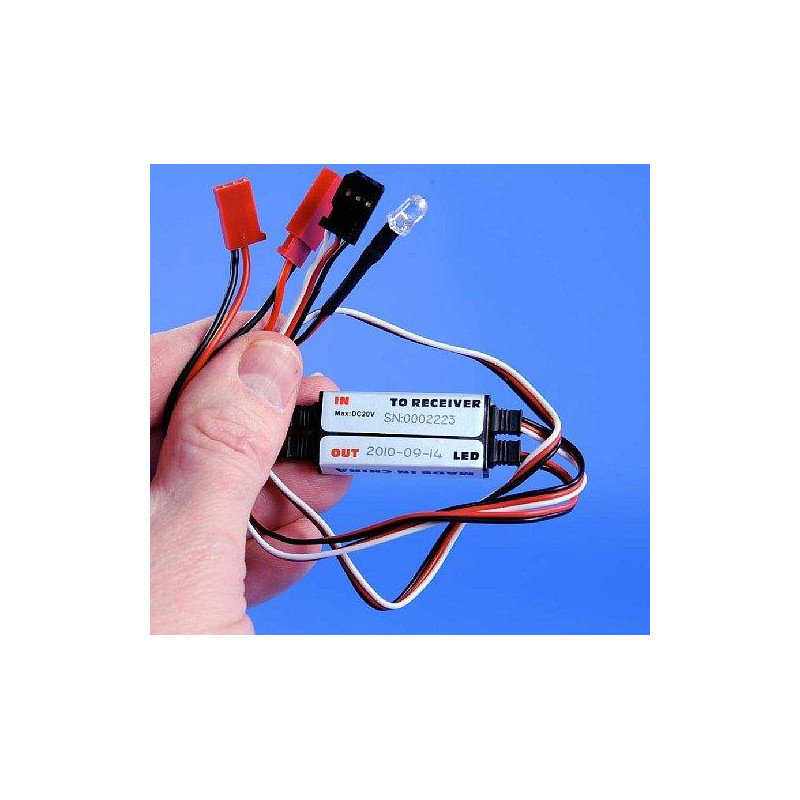

PETROL ENGINE SWITCH - electronic KILL SWITCH (

The electronic gasoline engine switch allows you to easily and safely turn on and off the power of the ignition system remotely, from the RC transmitter. The device plugs into a free channel in the receiver. The connection to the receiver is galvanically separated (optical separator) from the switch, so it is safe and prevents the formation of interference from the functioning ignition system. The lighting of the diode indicates that the ignition system is supplied with voltage from the package.

Basic features of the device:

• bright LED on the cable for convenient placement in the model
• optical separation of inputs and outputs
• pIC12F675 chip
• power supply: directly from the 4.8V Nixx package or via a BEC supplying 5V to 6V (note! do not exceed 6V)
• input/output (switched) current: up to 20V 16A (MOS-FET transistor IRF7456)
• low voltage drop, <150mV
• fUTABA connectors (compatible with DLE engine ignition system plugs)
• weight: 8g

*Follow the instruction manual included with the product.
