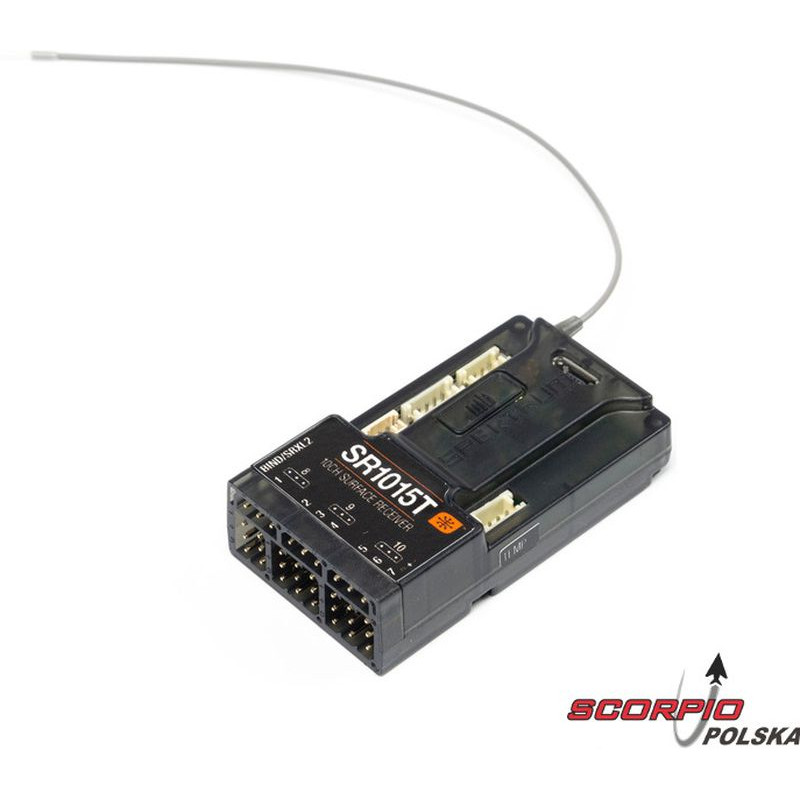

Spektrum SR1015T 10CH DSMR+ receiver with telemetry (SPM-1055)

Spektrum SR1015T RC receiver with 10 channels and DSMR+/DSMR modulation for RC cars and boats. the 10 fully proportional channels provide greater flexibility and control versatility for auxiliary systems such as winches, lights, etc. Features excellent range and response, especially in areas where multiple systems operate in the 2.4 GHz band. Features full telemetry coverage. Supports Spektrum Smart technology via SRXL2 protocol - communicates with Spektrum Smart FIRMA electronic controllers and transmits telemetry without sensors. It includes ports for connecting telemetry sensors - VOLT to measure voltage, RPM to measure RPM, TEMP to measure temperature, as well as an XBUS input and Micro USB connector. For easy pairing, there is a pairing button on the top side.

Spektrum Smart
The receiver supports Spektrum Smart controllers and other Smart technology features. With Smart Throttle, it automatically takes telemetry data from the controller and sends it to the transmitter. The receiver is, of course, backward compatible with conventional regulators. If the receiver on channel 2 does not detect the Smart regulator, the output will be a standard PWM signal.

RC receiver properties:

• Compact 10-channel RC receiver with DSMR+/DSMR transmission protocol
• Supports Spektrum Smart technology via SRXL2 protocol - the receiver can read telemetry data from the controller
• Receiver's electronics are protected with a special varnish to prevent moisture and contaminants from getting in
• Possibility to update firmware via Micro USB connector
• Long antenna suitable for vehicles low to the ground
• Excellent telemetry coverage ensured
• Simple pairing with the push of a button
• Failsafe security function
• Telemetry and XBUS input ports

Parameters:

• Application: RC Cars and Boats
• Bandwidth: 2.4GHz
• Modulation: DSMR+/DSMR
• Number of channels: 10
• Power supply voltage: 3.5 - 9.6V
• Current consumption: 20mA
• Length: 55mm
• Width: 30 mm
• Height: 15 mm
• Antenna length: 171 mm
• Weight: 18 g
• Range: Full
• Telemetry: Yes
• Stabilization: No
• SRXL output: Yes (SRXL2)
• Resolution: 2048

*Follow the instruction manual included with the product.
