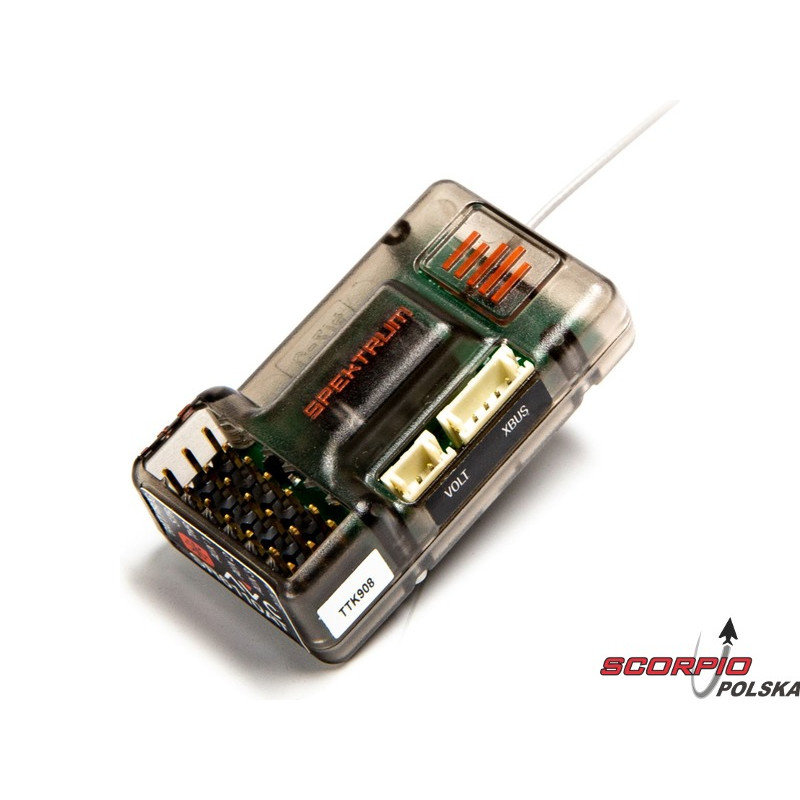

SPEKTRUM ODBIORNIK AR6110AT / DSMR 6CH AVC z telemetrią

The new Spektrum SR6110AT 6-channel RC receiver with DSM2/DSMR modulation for RC cars and boats. It has excellent range and response, especially in areas with multiple systems operating in the 2.4GHz band. The receiver features Spektrum's patented AVC (Active Vehicle Control) system and full-range telemetry (the receiver uses a maximum allowable transmit power of 100mW EIRP). The AVC stabilization system corrects the direction of your car model and makes immediate, quick, appropriate corrections so that the model does not deviate from the desired direction. The Spektrum SR6110AT RC receiver supports Spektrum Smart technology - it communicates with Spektrum Smart FIRMA electronic controllers and transmits sensorless telemetry. For mounting on ships, it has a long 228mm antenna that allows the antenna to be raised above the surface. The circuit board is coated with "Realkote" moisture protection varnish.

The receiver is also equipped with a VOLT input for voltage measurement and an XBUS input for connecting external sensors.

The receiver supports Spektrum Smart controllers. The receiver automatically reads telemetry data from the controller and sends it to the transmitter. The receiver is, of course, backward compatible with conventional controllers. If the receiver does not detect the Smart controller on channel 2, the output will be a standard PWM signal.

Features of the Spektrum SR6110AT RC receiver

• Compact 6-channel RC receiver with DSM2 / DSMR modulation
• Supports Spektrum Smart technology - the receiver can read telemetry data from the controller
• Ideal for models using AVC technology. Free channels can be used for lighting and other functions
• AVC settings are entered via the transmitter. AVC system can be turned off if necessary
• Receiver electronics are protected with a special varnish to prevent moisture or dirt from getting in
• Uses a 32-bit microcontroller with ARM Cortex M4 core
• Upgradeable via SPMA3065 cable
• Compatible with all Spektrum DSM2 and DSMR modulation control transmitters
• Antenna is connected to a standard coaxial connector, makes it easy to replace it
• Thanks to the transmitting power of 100mW EIRP, a long telemetry range is ensured

Specifications:

• Application: RC models of cars and boats
• Bandwidth: 2.4 GHz
• Modulation: Spectrum DSM2 and DSMR
• Number of channels: 6
• Power supply voltage: 3,5-9,6 V
• Current consumption: 20 mA
• Length: 42.4 mm
• Width: 23.9 mm
• Height: 15.1 mm
• Antenna length: 228 mm
• Weight: 10 g
• Range: Full
• Telemetry: Yes
• Stabilization: AVC

*Follow the instruction manual that comes with the product.
