SPECTRUM RECEIVER AR14400T (SPMAR14400T)

The Spektrum AR14400T PowerSafe™ receiver

, is a feature-rich 14-channel receiver with built-in full-range telemetry. The receiver is designed for large models with multiple servos and high power consumption. The receiver has dual - redundant power supply with 13AWG wires and IC3 connectors. This allows high-current systems to be safely powered directly from the receiver.

The receiver with DSMX®/DSM2® modulation is capable of a refresh rate of up to 11 ms, providing lightning-fast response ideal for high-performance applications such as aerobatic, aggressive 3D, IMAC and turbine aircraft. The receiver itself includes 4 additional SRXL2 receivers that take full advantage of Spektrum MultiLink™ technology. This patented technology eliminates reflections and signal dead zones. This helps ensure a reliable connection between the user and the aircraft. Another safety feature is an electronic circuit breaker with a patented soft switch so that current does not flow directly through it. If the switch fails, there will be no interruption of power.

A revolutionary feature of the AR14400T PowerSafe receiver is the receiver's built-in battery energy sensors that report the load and current consumption of servos, retractable landing gear, lights, etc. used by each battery. The receiver has ports for RPM, voltage and battery temperature sensors, as well as an X-Bus port for additional external telemetry.

The AR14400T PowerSafe receiver supports Smart telemetry, which means you have a perfect overview of each Smart battery individually, seeing voltage, cell voltage, current, temperature, temperature, capacity used and more in real time.

The receiver is also equipped with additional telemetry connectors for voltage, temperature, speed and XBUS extension.

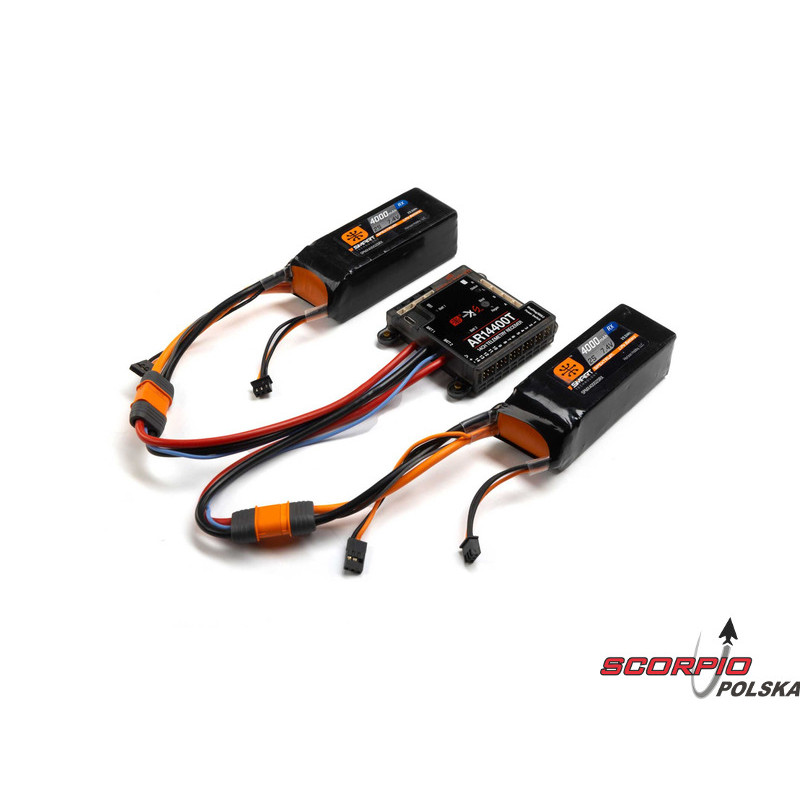

Redundant power supply system:
The patented redundant power system is ideal for powering multi-server aircraft models with high current loads. The power supply from two batteries (3.5 - 12.6V) has separate circuits, and if one battery fails, the other immediately takes over.

Power supply telemetry:
When using Spektrum Smart batteries and Spektrum transmitters with AirWare, you get full power telemetry. For both batteries, you can see voltage, current, consumed capacity, temperature and other information on the transmitter. This gives an excellent overview of the model's behavior.

Integrated black box protocol:
When you insert a micro SD card into the receiver, flight information will be saved to a file on the card while the receiver is running, including flight log data, battery status and other telemetry data. Older saved data will be permanently deleted, while the most recent records will be retained. This is a useful tool for performance diagnostics.

Forward Programming:
The AR20400T receiver can be configured wirelessly, directly from a compatible Spektrum™ transmitter, through the menu option - Forward Programming. No separate computer or mobile device is required for configuration and adjustment.

Micro USB port:
A user-friendly Micro USB port is integrated into the receiver for easy access to firmware updates via the Spektrum PC Programmer.

Integrated Barometer:
The Spektrum™ AR20400T receiver has an integrated barometer (built-in pressure sensor) that provides telemetry data with altitude and vario without the need to purchase additional sensors or modules.

Status LEDs:
The status LED will provide information about the receiver's status and give warning codes if a problem or condition is detected. It indicates power-on status, connected satellites, range error, SD card status, etc.

Extensive telemetry options:
In addition to integrated telemetry sensors, Spektrum telemetry sensors and third-party telemetry accessories are supported. You can add powerful telemetry data tools to your model, such as GPS, airspeed sensors, engine speed and turbine ECU telemetry from supported turbine sensors.

Properties of the AR14400T 14CH PowerSafe receiver:

• Patented PowerSafe™ redundant system with two 13AWG power cables with IC3 connector
• Perfect for aircraft requiring high power and high-current servos drawing up to 35A (maximum 50A)
• Forward Programming menu can be used to set failsafe, servo refresh rate settings and more
• Micro USB for easy product registration and firmware updates
• 12V suitable for use with 12V servo drives (must be enabled in Forward Programming)
• Built-in battery capacity monitor automatically reports battery capacity used during flight and can automatically reset when batteries are fully charged
• Integrated Black Box telemetry protocol automatically saves all telemetry data to a Micro SD card (Micro SD card not included)
• Built-in status LEDs provide useful information during power-up, warnings and mode indications
• SRXL2 connector for easy single-wire connection to supported devices
• Ready to use with Spectrum Smart controllers for single-wire telemetry data without the need for modules, connections and cables
• Energy and voltage receiver sensor and flight log telemetry data available without the need for additional sensors
• Full-range telemetry with built-in barometer will provide altitude and vario, without additional sensors
• Soft switch allows servo current to be routed around the switch so that if the switch fails for any reason, power to the system will not be interrupted
• Robust rubber grommets and easy installation
• High refresh rate of 11 ms
• Pairing is made easy with four pairing initiation options
• Integrated telemetry with built-in ports for speed, voltage, temperature and X-bus for external telemetry sensors
• Compatible with Spektrum DSM2 and DSMX aviation transmitters
• Not compatible with Spektrum AS3000 stabilization module
• Not compatible with DSM2 AIRMOD JR (SPMMSJR720)

Specifications:

• Application: aeronautical
• Bandwidth: 2.4 GHz
• Modulation: DSM2, DSMX
• Number of channels: 14
• Power supply voltage; 3.5V - 12.6V
• Dimensions: 66 x 56 x 17 mm
• Weight: 80 g
• Range: full
• Telemetry: yes
• Stabilization: no
• SRXL output: yes

Kit contents:

• spektrum AR14400T 14CH PowerSafe receiver with telemetry
• receiver: 1 x Spektrum Serial SRXL2 with telemetry,
• receiver: 3 x Spektrum DSMX SRXL2
• receiver cables with lengths: 22, 30, 60 and 90 cm
• 2 x IC3 connector
• 2 x connector bed
• voltage sensor
• switch.

*Follow the instructions included with the product.
