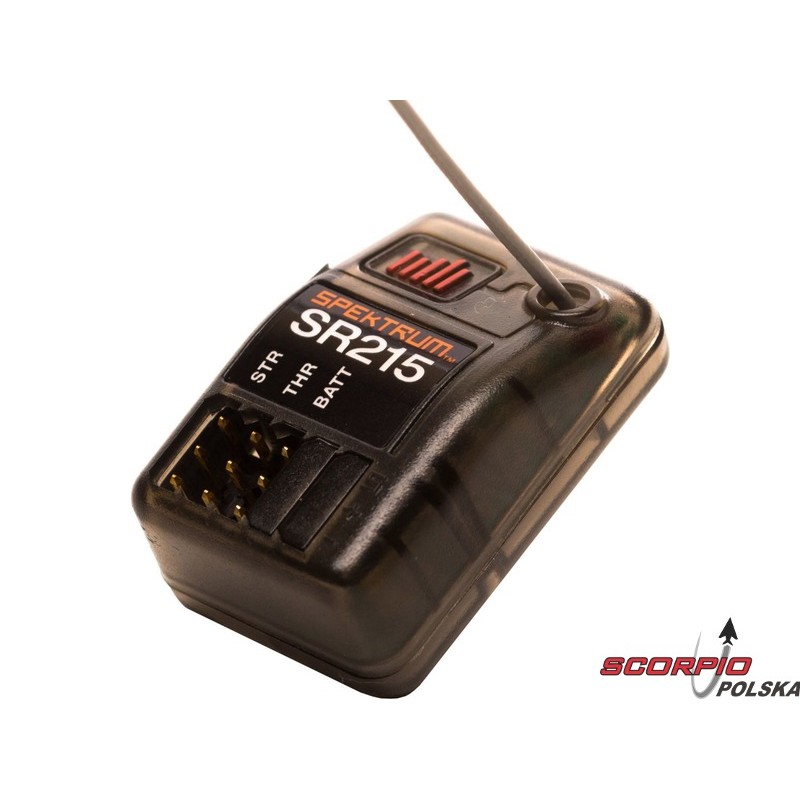

SPECTRUM RECEIVER SR215 / 2CH

Characteristics:
The new generation Spektrum SR215 DSMR Sport receiver in micro design, with a frame rate of 5.5ms, provides faster connection with low latency and push-button pairing without the need to insert a pairing connector. The new design with a small size and weight of only 6g, is ideal for installation into small cars. Selectable SmartSafe™ and predefined "Gas" Failsafe capabilities. The receiver has no water protection.

DSMR technology provides full range and fast receiver response to commands. The SR215 is built on a new modern design, is small, lightweight and ready for almost any RC application. The case has an antenna bracket added and an integrated antenna slot for seamless use.

No more pairing connector! Instead, only an easy-to-use button is used to enter pairing mode. In addition, there is a SmartSafe™ selection and a predefined "Gas" Failsafe setting option. Spektrum offers more features in an affordable receiver for higher performance and trouble-free operation.

Compact new design:
SR215 can be placed in very small and confined model spaces. All corners have been rounded to save space and the chassis has an added antenna support and integrated antenna slot for models that do not have enough space to install an antenna.

Pairing button:
New technology eliminates the need for the old pairing connector. With a button on the top panel of the SR215, the procedure is simpler than ever before. In addition, there are two pairing options available that simplify the process in that they allow pairing when the receiver is powered on or only when the receiver is powered on.

Gas Mode Failsafe:
The newest protection mode integrated into the SR215 receiver for RC autos is Gas Mode Failsafe. A simple option at pairing time allows users to predefine the values of all available channels. In addition to this, SmartSafe™ FailSafe can still be used, which pulls down the gas and maintains the last values on the remaining available channels.

Receiver Features:

• Case design with rounded corners and low weight
• Thanks to the pairing button, no pairing connector is needed
• SmartSafe™ Failsafe and "Gas Mode" at your disposal during pairing
• Safe DSMR modulation protocol and high frame rate of 5.5ms
• Suitable for most RC car models

Parameters:

• Application: RC cars
• Bandwidth: 2.4GHz
• Modulation: DSM2, DSMR
• Number of channels: 2
• Power supply voltage: 3.5 - 9.6V
• Length: 32.7mm
• Dimension: 21.4mm
• Height: 13.6mm
• Weight: 6g
• Range: Full
