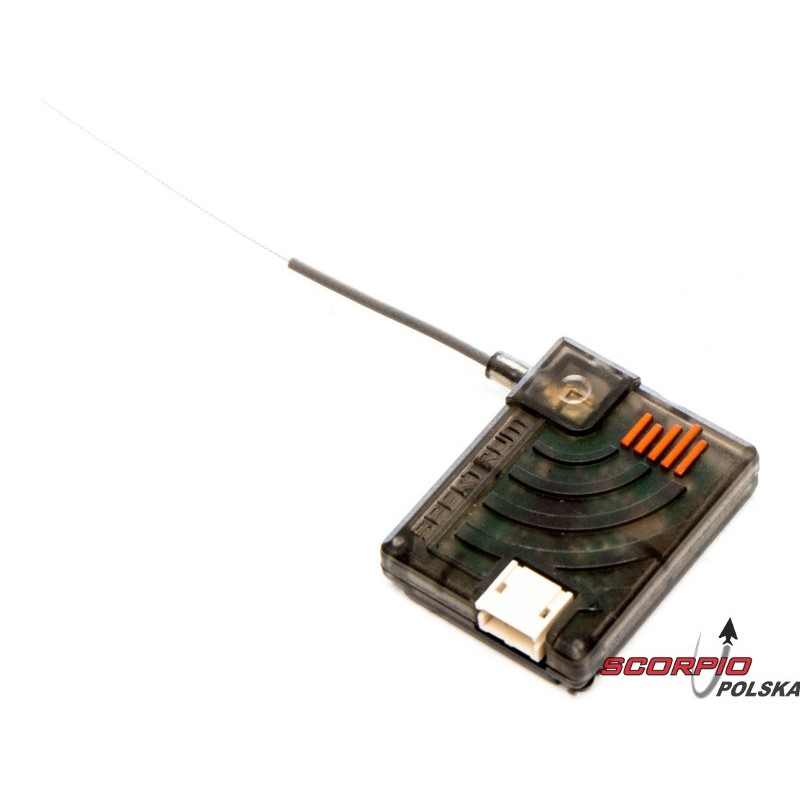

SPEKTRUM AUXILIARY RECEIVER (SPM9745)

Kit contents:
Kit includes additional (external) Spektrum DSM2/DSMX receiver with 6cm antenna, 60cm long connecting cables,

Characteristics:
New generation of additional Spektrum receiver compatible with Spektrum aviation receivers. Allows you to place the antenna from two directions in the housing. The receiver is compatible with Spektrum DSMX and DSM2 modulation.

Selectable antenna direction in the housing
The antenna is mounted in the receiver on a standard micro connector, which can be rotated. This was taken advantage of in the design of the housing, which has the necessary space in the corner to rotate the antenna connector by 90°. The advantage is greater freedom in choosing the placement of the receiver in the hull.

Optional standard coaxial antennas for the 2.4GHz band of various lengths can be used.

Receiver Features:

• Case design offers choice of antenna direction
• Compatible with Spectrum DSMX modulation
• Supports 22ms and 11ms frames
• Compatible with all aviation receivers operating in DSMX and DSM2 modulation

Parameters:

• Application: RC aircraft and helicopter models
• Bandwidth: 2.4GHz
• Modulation: Spectrum DSMX and DSM2
• Number of channels: 20
• Power supply voltage: 3.3V
• Current consumption: approx. 20mA
• Length: 26mm
• Width: 20mm
• Height: 6mm
• Weight: 4g
• Range: Full
• Telemetry: No
• Stabilization: No
• SRXL output: No
