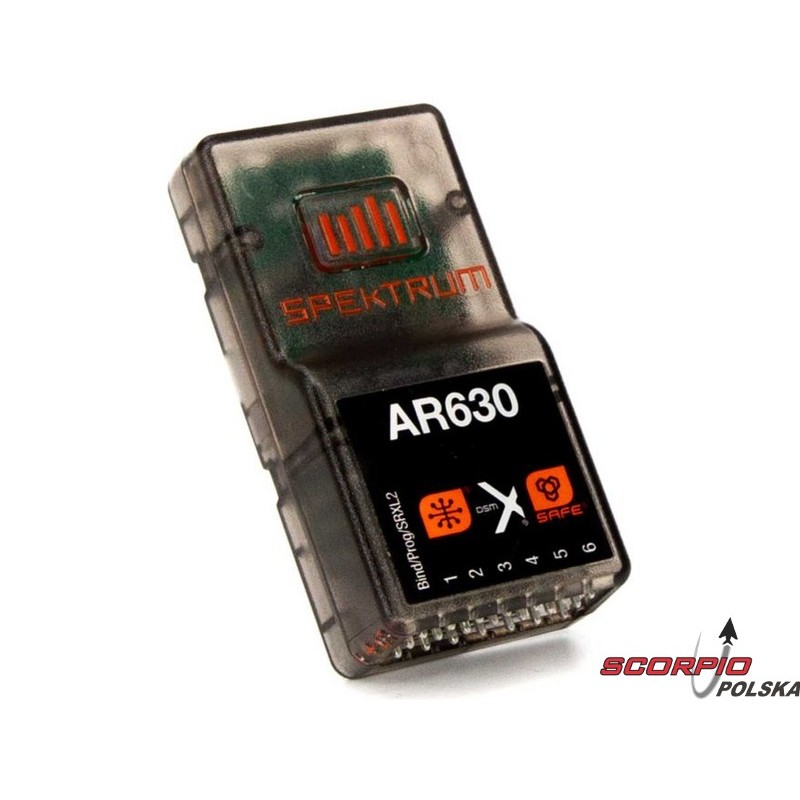

SPEKTRUM RECEIVER AR630 / 6 CH (SPMA630) AS3X / SAFE

Characteristic:

New 6-channel RC receiverSpektrumAR630 with AS3X stabilization, SAFE function, compatible with DSMX / DSM2 modulation in the 2.4 GHz band with full range.Integrated antenna in the housing.Very small dimensions and weight only 10g - perfect for smaller models of RC planes! In order to further reduce the weight, the receiver can be used without a plastic housing (the printed circuit board is embedded only on one side).

The receiver has an integrated, fully adjustable AS3X 3-axis stabilization and a SAFE protection function that uses 3-axis MEMS gyros and exclusive flight control software tuned by experienced pilots to eliminate the effects of wind, turbulence and torque. There is no delay in control response or control constraints. You just feel like flying with a professionally tuned model that does exactly what you want.Programming is the same as for the receiverSpektrumAR637T.

Thanks to the integrated antenna, the installation of the receiver in the model is very easy. The receiver is intended only for smaller models of airplanes made of wood or foam materials. The receiver cannot be used in giant models or in laminate or carbon hulls!

The receiver supports Smart regulators from which it is able to read all telemetry data. Due to the low transmission power, the telemetry range is about 300m, which is, however, sufficient due to the purpose of the receiver in smaller models.

AS3X system for UMX airplanes.

The AS3X system for airplanes is an exclusive electronic device that allows for perfect stabilization of the current flight position, and at the same time has full control over the control during the flight. Owning an AS3X is a dream come true for every RC pilot.

Due to their very low mass and inertia, micromodels are very sensitive to very small gusts of wind that can change direction very quickly. The aerodynamics of the micromodels are also not at the general level. The AS3X system includes a three-axis gyroscope manufactured in the MEMS technology. Just as the introduction of the uniaxial gyroscope in helicopters made the helicopters controllable at all, the stabilizer was removed with the help of a three-axis gyroscope - the bladeless rotor head, in micromodels the AS3X system significantly simplified their control and made them available to less experienced modelers. With the AS3X, the era of violent flights is over. Based on the information from the gyroscope, the microprocessor continuously maintains the position of the model with the ailerons, rudder and elevator in the same orientation until the reorientation is commanded by the transmitter. Intelligent software helps to compensate for the effects of wind when flying in a bend, flying knives will no longer be a problem for you. With the models equipped with the AS3X, you can safely fly outdoors in relatively calm weather, such as in the garden.

The AS3X technology in the UMX plane is a huge advantage, because it helps the pilot to focus more on the control itself than on the necessary corrections during the flight, thanks to which turbulence, sudden gusts of wind will not affect the model. All that remains is a very smooth operation, even outside with a gentle breeze, so you can only enjoy a pleasant ride. AS3X, does not reduce the stability and agility of the aircraft. AS3X makes no compromises. You gain much more control, more stability and dexterity than you ever dreamed of.

Airplanes equipped with AS3X will change the style of flying, so in the future you will want to fly.

Smart technology - more trust, more information

TechnologySpektrum™ Smart is a comprehensive information and service system that communicates between components calledSpektrumSmart. It was created with simpler user comfort in mind, and at the same time maximum information flow, the purpose of which is to provide immediate data on the condition of important elements of the model's electronics. For this purpose, Smart receivers, regulators, batteries as well as chargers and transmitters were produced, which are equipped withSpektrumAirWare ™ for telemetric communication with Smart system components. Without additional telemetry sensors, you can track battery health, temperature, current and speed thanks to the IC3 connector with the data cable. Your model's electronics will communicate with you so you can ensure the highest possible performance and efficiency of your model. I provide information on the condition of components, which increases confidence in their condition and makes the entire system more transparent.

Integrated antenna

New receiver conceptSpektrumAR630 reduces the risk of damage to the antenna, now the antenna is simply hidden in the receiver housing and there is no risk of damage. The antenna is part of the circuit board, its shape has been optimized so that the receiver is RCSpektrumThe AR630 had at least the same or better range compared to the standard antenna design!

Easy pairing with a button

No need for a pairing connector anymore! To pair, just press the logo buttonSpektrumon top of the receiver. Pairing can be activated either by turning the power on or by pressing the button until the power is on. This is useful when it is very difficult to operate "all at once" while pressing a button while connecting to power.

The most important features of the Spectrum AR630 receiver

• Thanks to its very small dimensions and weight, the receiver is ideal for small (indoor) park-fly models
• Thanks to the single-sided PCB, you can operate the receiver without a box and thus save about 3 g.
• Thanks to the integrated antenna, there is no risk of damage in the event of an accident or in normal operation
• Integrated AS3X stabilization system with SAFE envelope protection
• AS3X and SAFE are set using the Forward Programming menu directly from the transmitterSpektrum
• Ready to use with regulatorsSpektrumSmart with IC series connector
• Easy pairing with a button
• Receiver with DSMX protocol and DSM2 backward compatible

Technical data:

• Application: Airplanes, helicopters
• Band: 2.4GHz

• Modulation:SpektrumDSMX / DSM2

• Number of channels: 6

• Supply voltage: 3.5-9V

• Length: 47mm

• Width: 25mm

• Height: 13mm

• Weight: 10g

• Coverage: Full

• Telemetry: Yes

• Stabilization: Yes
