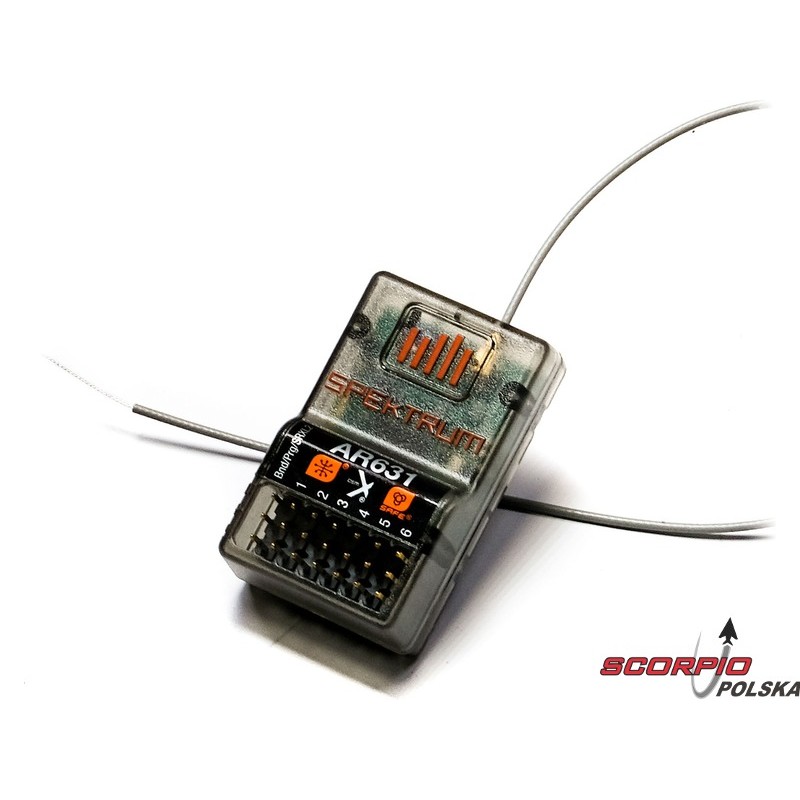

SPEKTRUM RECEIVER AR631 / 6 CH (SPMA631) AS3X / SAFE

Characteristic:

6-channel receiverSpektrumAR631 with AS3X / SAFE functions and telemetry with DSM2 and DSMX modulation support. Integrated 3-axis MEMS gyroscope with exclusive flight correction software. Programming with Forward programming directly from the transmitterSpektrum. Pairing button.

Receiver propertiesSpektrumAR631

• 230mm antenna for versatile installation possibilities
• Built-in AS3X stabilization system with safe position protection in flight
• AS3X and SAFE align themselves via Forward Programming directly on the transmitterSpektrum
• Compatible with the systemSpektrumSmart for telemetry data transmission
• Compact receiver in a small, light and solid housing
• The pairing button allows easy pairing
• Receiver with DSMX protocol with DSM2 backward compatibility
• Standard Servo Connectors
• SRXL2 connector for additional receiver, XBUS for telemetry sensors and VOLT for external voltage measurement
• The SRXL2 output carries up to 20 channels and telemetry

RC receiverSpektrumAR631 is compatible with the systemSpektrumS.MART. The advantage is the built-in AS3X stabilization, which corrects the effects of wind and turbulence with the help of a 3-axis MEMS gyroscope and exclusive software and SAFE function, which provides position control in flight. The receiver has an integrated barometric sensor that measures altitude and vario.

Note *: TransmittersSpektrumDX7S and DX8 Gen 1 will not display altitude or vario telemetry with the AR631 receiver.

AS3X® technology (3-axis stabilization)

Exclusive technologySpektrum™ AS3X® increases flight stability by suppressing the effects of wind, turbulence and other external influences, and helps the model in straight flight. This gives you the feeling that you are piloting a larger model that responds more accurately and safely.

SAFE® technology

SAFE® (Sensor Assisted Flight Envelope) flight modes help pilots avoid losing control of the model. SAFE uses AS3X to ensure a smooth and stable straight flight and additionally the SAFE function ensures the limitation of the angle of inclination and prevents the model from going to extreme positions in flight.

Compatibility with the systemSpektrumSmart

Spetrum AR631 is prepared to cooperate with S regulatorsMART Avian. Receiver number output (THRO - gas) automatically detects the connection of the S regulatorMART.

If an S controller is connectedMART, the receiver automatically reads from the controller (and possibly the connected battery S.MART) available telemetry data, otherwise the standard servo signal will be output and standard regulators or servos can be connected.

Easy pairing at the touch of a button

No pairing connector needed anymore! For pairing, just press the button with the logoSpektrumon the top of the receiver. The activation of pairing can be performed both during the power-up and by pressing the button after turning on the power. This is suitable where it is very difficult to press a button and connect the power supply at the same time.

However, pairing is still possible via the pairing connector connected to the Bind / Prog / SRXL output

Forward Programming

.......................................

Technology S.MART.

To take advantage of the benefits of Smart ™ technology, the AR631 receiver with a transmitter must be usedSpektrumDSMX® supporting technology in Smart controllers. The AR631 will transmit the telemetry and will provide important telemetry data such as current, voltage, temperature and RPM which is sent directly to the transmitter. AR631 is not compatible with telemetry sensorsSpektrum.

Antenna length 230mm 2.4GHz

The AR631 receiver is equipped with an extremely long antenna - 230mm, specially designed for use in tight hulls. When installing the receiver in a model with limited space, the appropriate length of the antenna is important. This allows the antenna to be led away from electrical appliances and to isolate the antenna for optimal reception and connection quality. When placing the antenna, it is best to move it at a distance of at least 75 mm from the battery, electronic regulator, ignition systems, etc.

Technical data:

• Application: Airplanes

• Band: 2.4GHz

• Modulation:SpektrumDSMX / DSM2

• Number of channels: 6

• Supply voltage: 3.5 - 9.6V

• Length: 39mm

• Width: 24mm

• Height: 14mm

• Antenna Length: 229mm

• Weight: 8g

• Coverage: Full

• Telemetry: Yes

• Stabilization: Yes, AS3X, SAFE
