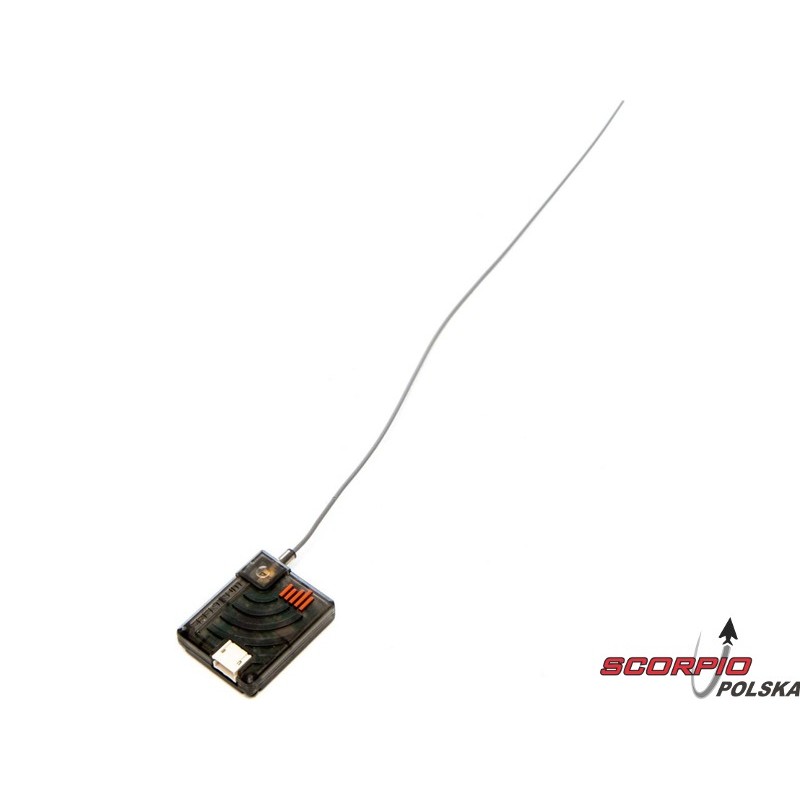

SPEKTRUM - ADDITIONAL DSMX CA RB ON RECEIVER (SPM9746)

Kit Contents:

• additional (external) Spektrum DSM2 / DSMX receiver with 23cm antenna
• connection cable 60 cm long

Characteristic:
New generation of additional Spektrum receiver compatible with Spektrum aviation receivers. Allows you to place the antenna from two directions in the housing. The SPM9746 is specially designed and tuned for use inside models with a carbon fiber hull, the antenna can be extended out of the hull thanks to a 610mm (24 ") cable. The receiver is compatible with Spektrum DSMX and DSM2 modulation.

Possibility to choose the direction of the antenna in the housing:
The antenna is mounted in the receiver on a standard micro connector that can be rotated. This was used in the construction of the housing, which has the necessary space in the corner to turn the antenna connector by 90 °. The advantage is greater freedom in choosing the placement of the receiver in the fuselage.

Optionally, you can use standard 2.4GHz coaxial antennas with different lengths.

Receiver properties:

• The design of the housing offers the possibility of selecting the direction of the antenna
• Compatible with Spektrum DSMX modulation
• Supports 22ms and 11ms frames
• Compatible with all aviation receivers working in DSMX and DSM2 modulation

Technical data:

• Application: RC models of airplanes and helicopters
• Band: 2.4GHz
• Modulation: Spektrum DSMX and DSM2
• Number of channels: 20
• Supply voltage: 3.3V
• Current consumption: approx. 20mA
• Length: 26mm
• Width: 20mm
• Height: 6mm
• Weight: 4g
• Coverage: Full
• Telemetry: No.
• Stabilization: No.
• SRXL output: No.
