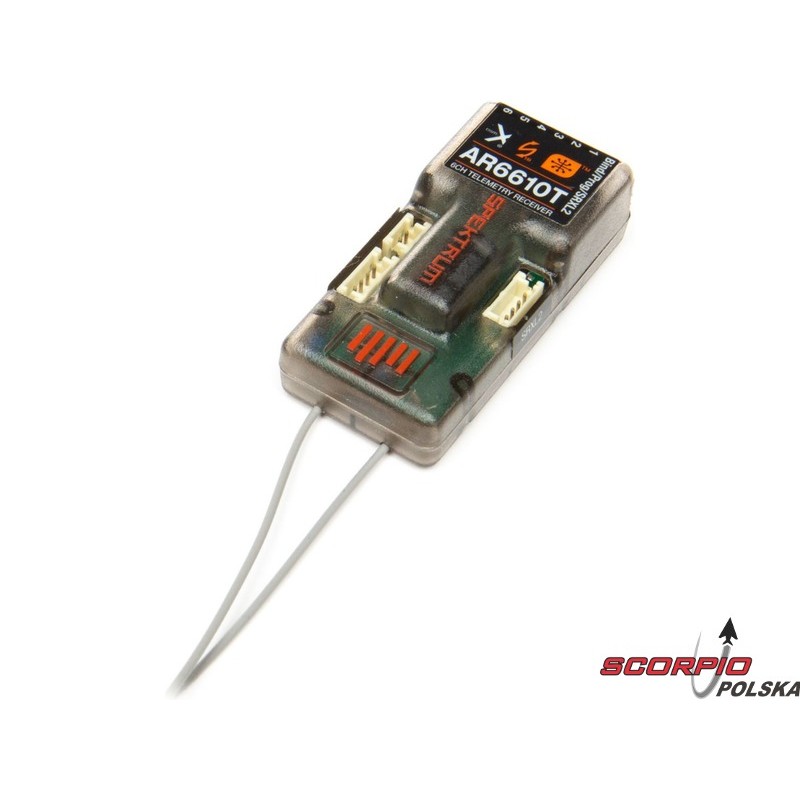

SPEKTRUM ODBIORNIK AR6610T / 6CH (SPMAR6T) DSM2/DSMX z telemetrią

Characteristic:

New RC receiverSpektrumThe AR6610T is compatible with the S accessoriesMART - regulatorSpektrumAvian, which enables telemetry data transmission without sensors. The receiver has an integrated barometric sensor, therefore it can act as a vario and an altimeter. The SRXL2 port can use the additional SRXL2 SPM9747 receiver, which is available as an accessory.

Intelligent technologySpektrum™ Smart offers a higher level of connection to the model's electronics than has ever been possible before. It is an RC system that will provide full control over individual electronics components and at the same time facilitates the use of important parts of the model. The electronics of the model will communicate with the user, who can ensure the highest performance and efficiency of the model. Data on the state of components is made available, the entire system becomes more transparent.

ReceiverSpektrumThe AR637T has an S connectorMART Throttle, which can receive telemetry data from the Smart regulator, such as voltage and current to the receiver. The receiver is compatible with a number of regulatorsSpektrumAvian. That S.MART Throttle was working, the Smart regulator must be connected to the S connectorMART Throttle and paired with the S telemetry receiverMART Throttle and transmitterSpektrumDSMX with telemetry. For the correct operation of the Smart technology, it may be necessary to update the transmitter.

Aircraft models with a significant proportion of carbon fiber in the design can create a screen effect and reduce the range. The AR6610T receiver is built to overcome the coverage problems of carbon fiber aircraft in that it has two external antennas for safe signal coverage. AR6610T includes two external antennas; one is 155mm long and the other is 186mm long. Easily mountable to the outside of the carbon hull. Each antenna has a 31mm concentric and active part.

Receiver propertiesSpektrumAR6610T

• For electric models and larger gasoline powered airplane models
• Prepared for use with regulatorsSpektrumSmart for single-wire telemetry transmission
• Full range telemetry with integrated barometer for altimeter and vario
• Receiver with DSMX modulation and DSM2 backward compatibility
• The pairing button allows easy and quick pairing
• Lightweight design with a pairing button with a plastic housing
• Expansion ports for use with the SRXL2 remote receiver and telemetry sensors
• Standard Servo Connectors

The latest receiver and transmitter updates can be found at www.spektrumrc.com

Parameters:

• Application: Airplanes
• Band: 2.4GHz

• Modulation: DSMX / DSM2

• Number of channels: 6

• Supply voltage: 3.5 - 9V

• Length: 49.8 mm

• Width: 23.4 mm

• Height: 15.02 mm

• Antenna length: 155 and 186mm

• Weight: 12g

• Telemetry: Yes
